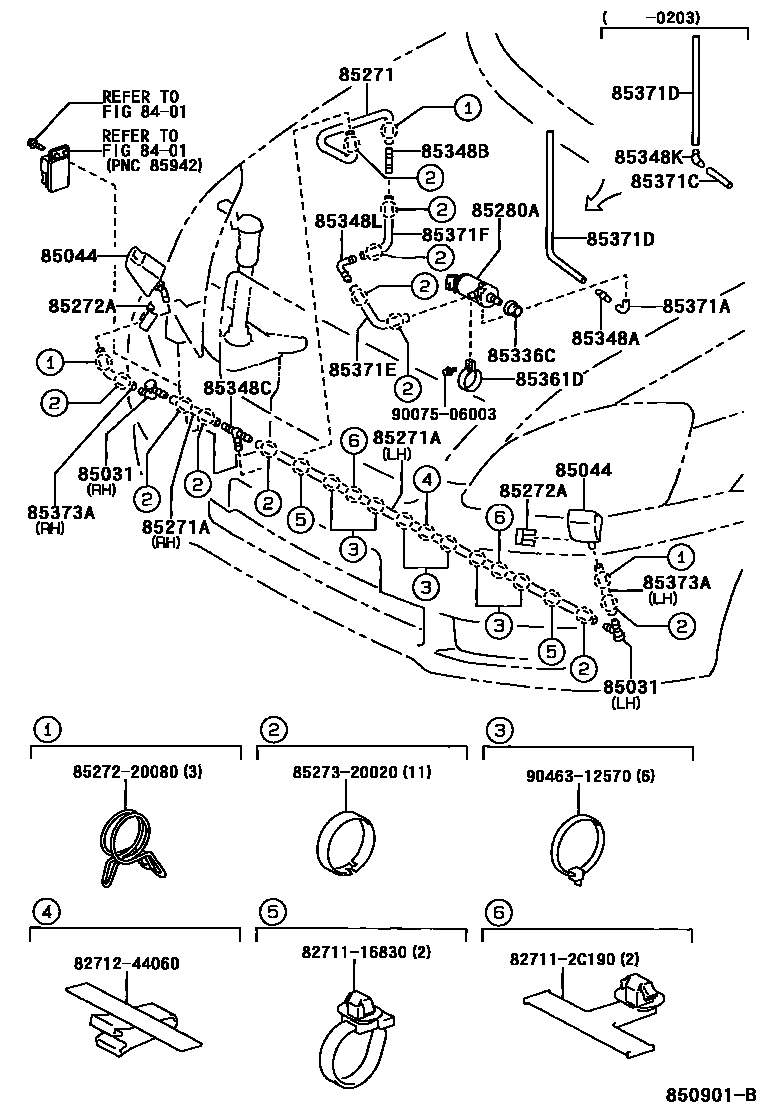

Toyota PICNIC/AVENSIS VERSO — HEADLAMP CLEANER

0001 1 0002 1

8401

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020iACM20,CLM20..LHD200310-200507

main85031-30020iACM20,CLM20..LHD200105-200310

LH

main85299-33020iACM20,CLM20..LHD200105-200310

RH

85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH

main85044-44020iACM20,CLM20..LHD200105-200310

main85044-44040iACM20,CLM20..LHD200310-200507

85271HOSE, HEADLAMP CLEANER, NO.1

main85275-44050iACM20,CLM20..LHD200310-200507

main85376-28010iACM20,CLM20..LHD200105-200310

85271AHOSE, HEADLAMP CLEANER, NO.2

main85376-14301iACM20,CLM20..LHD200105-200310

L=75,RH

main90075-15013iACM20,CLM20..LHD200105-200310

L=1500,LH

sub90075-15012

main90445-14048iACM20,CLM20..LHD200310-200507

L=150

sub90445-14059

85272ACLAMP, HEADLAMP CLEANER, NO.1

main85272-20060iACM20,CLM20..LHD200105-200507

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-50020iACM20,CLM20..LHD200105-200507

85336CPACKING, HEADLAMP CLEANER MOTOR

main85336-10010iACM20,CLM20..LHD200105-200507

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85349-89122iACM20,CLM20..LHD200105-200507

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main85379-89131iACM20,CLM20..LHD200105-200507

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

main85352-12010iACM20,CLM20..LHD200105-200310

main85379-89131iACM20,CLM20..LHD200310-200507

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

main85355-20200iACM20,CLM20..LHD200105-200203

85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2

main85379-90K04iACM20,CLM20..LHD200105-200507

85361DBRACKET, HEADLAMP CLEANER, NO.2

main85361-33020iACM20,CLM20..LHD200105-200507

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main85336-12230iACM20,CLM20..LHD200105-200507

L=15

85371CHOSE, HEADLAMP CLEANER, NO.1

main85276-30030iACM20,CLM20..LHD200105-200203

L=90

85371DHOSE, HEADLAMP CLEANER, NO.2

main85275-30030iACM20,CLM20..LHD200105-200203

L=250

sub90446-07001

main90075-15024iACM20,CLM20..LHD200203-200507

L=350

sub90446-07001

85371EHOSE, HEADLAMP CLEANER, NO.3

main85375-89133iACM20,CLM20..LHD200105-200507

sub85275-44050

85371FHOSE, HEADLAMP CLEANER, NO.4

main85275-12050iACM20,CLM20..LHD200105-200507

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

main85375-16020iACM20,CLM20..LHD200105-200310

L=40,LH

main90075-15007iACM20,CLM20..LHD200105-200310

L=52,RH

main90445-14071iACM20,CLM20..LHD200310-200507

L=50

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

827112C190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C190

8271244060CLAMP, WIRING HARNESS

main82712-44060

8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-20080

8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH

main85273-20020

9007506003

main90075-06003

9046312570

main90463-12570

27 parts on this diagram · 2 diagrams in section
