Toyota PICNIC/AVENSIS VERSO — FRONT SPRING & SHOCK ABSORBER

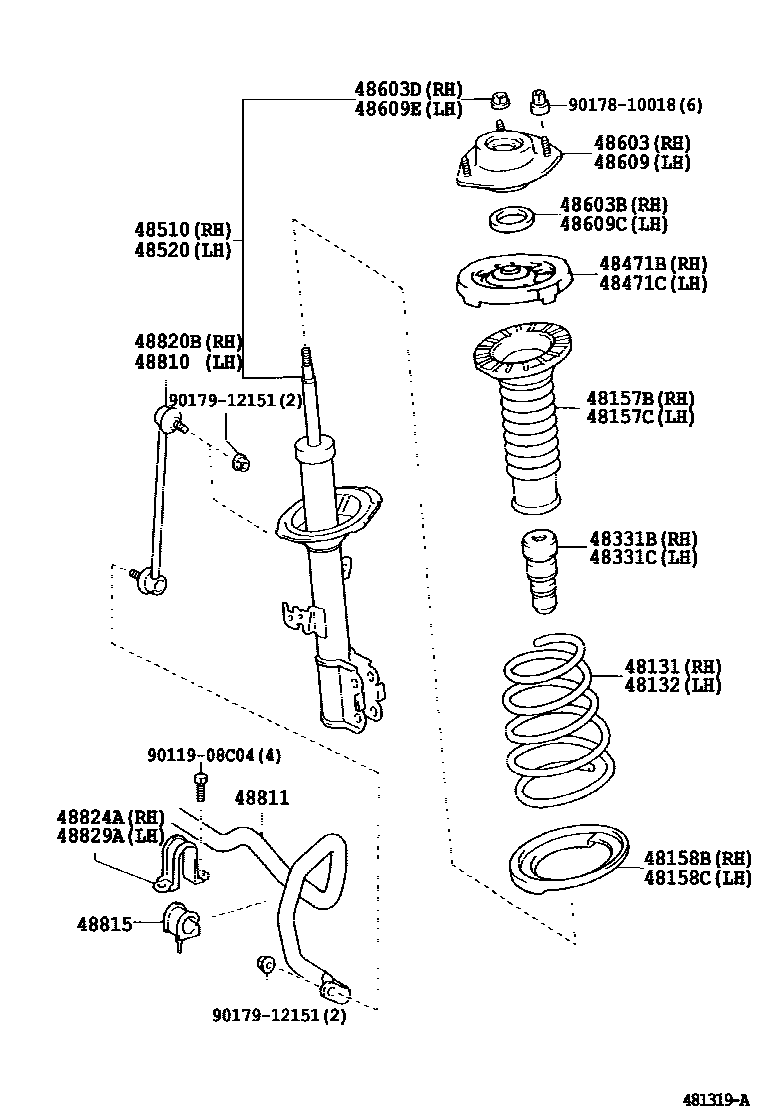

Parts diagram
48131SPRING, FRONT COIL, RH
main48131-44080i200105-200310
main48131-44090i200105-200507
main48131-44100i200105-200507
48132SPRING, FRONT COIL, LH
main48131-44080i200105-200310
main48131-44090i200105-200507
main48131-44100i200105-200507
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-32050i200105-200310
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-32050i200105-200310
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-47010i200105-200310
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
main48158-47010i200105-200310
48331BBUMPER, FRONT SPRING, RH
main48331-44030i200105-200310
48331CBUMPER, FRONT SPRING, LH
main48331-44030i200105-200310
48471BSEAT, FRONT COIL SPRING, UPPER RH
main48471-32050i200105-200310
48471CSEAT, FRONT COIL SPRING, UPPER LH
main48471-32050i200105-200310
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-49315i200105-200310
sub48510-49735
main48510-49325i200105-200310
sub48510-49745
main48510-49585i200310
MARK 48510-44180
main48510-49605i200310-200507
MARK 48510-44200
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-49425i200105-200310
sub48520-49805
main48520-49435i200105-200310
sub48520-49815
main48520-49645i200310
MARK 48520-44180
main48520-49665i200310-200507
MARK 48520-44200
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-44040i200105-200310
48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)
main90903-63014i200105-200310
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
main90179-14015i200105-200310
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-44040i200105-200310
48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)
main90903-63014i200105-200310
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
main90179-14015i200105-200310
48810LINK ASSY, FRONT STABILIZER, LH
main48820-44020i200105-200310
48811BAR, STABILIZER, FRONT
main48811-44050i200105-200310
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-44030i200105-200310
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-44020i200105-200310
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48824-44040i200105-200108
sub48824-44041
main48824-44041i200108-200310
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-44040i200105-200108
sub48824-44041
main48824-44041i200108-200310
9011908C04
main90119-08C04
9017810018
main90178-10018
9017912151
main90179-12151

27 parts on this diagram · 1 diagram in section
