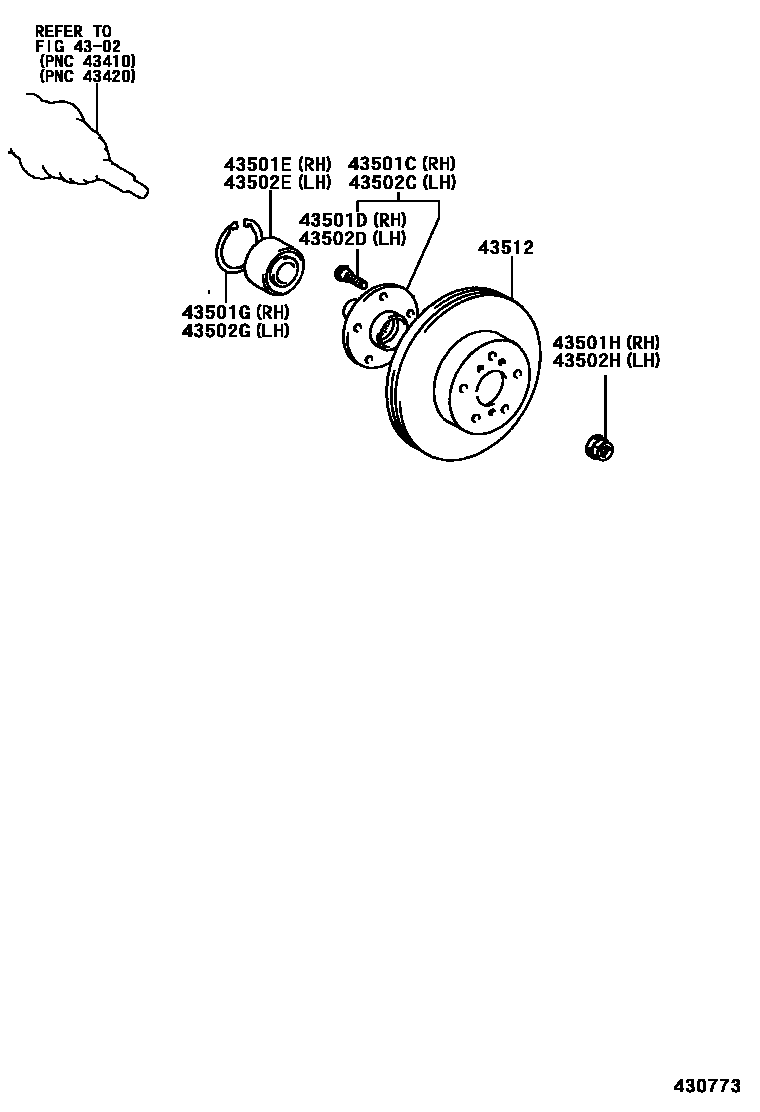

Toyota PICNIC/AVENSIS VERSO — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-30150iCLM20200105-200507

main43502-42020iACM20200105-200912

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070iACM20,CLM20200105-200310

sub90942-02049

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-43009iACM20,CLM20200105-200912

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-88001iACM20,CLM20200105-200912

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iACM20,CLM20200105-200310

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-30150iCLM20200105-200507

main43502-42020iACM20200105-200912

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070iACM20,CLM20200105-200310

sub90942-02049

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-43009iACM2#,CLM20200105-200912

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-88001iACM20,CLM20200105-200912

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iACM20,CLM20200105-200310

43512DISC, FRONT

main43512-33041iACM20,CLM20..ARL,EUR200105-200212

sub43512-33043

main43512-44010iACM20..GEN200206-200408

sub43512-44011

main43512-44011iACM20..GEN200408-200912

main43512-44020iACM20,CLM20..ARL,EUR200212-200408

sub43512-44021

main43512-44021iACM2#,CLM20..ARL,EUR200408-200912

sub43512-33042

12 parts on this diagram · 1 diagram in section
