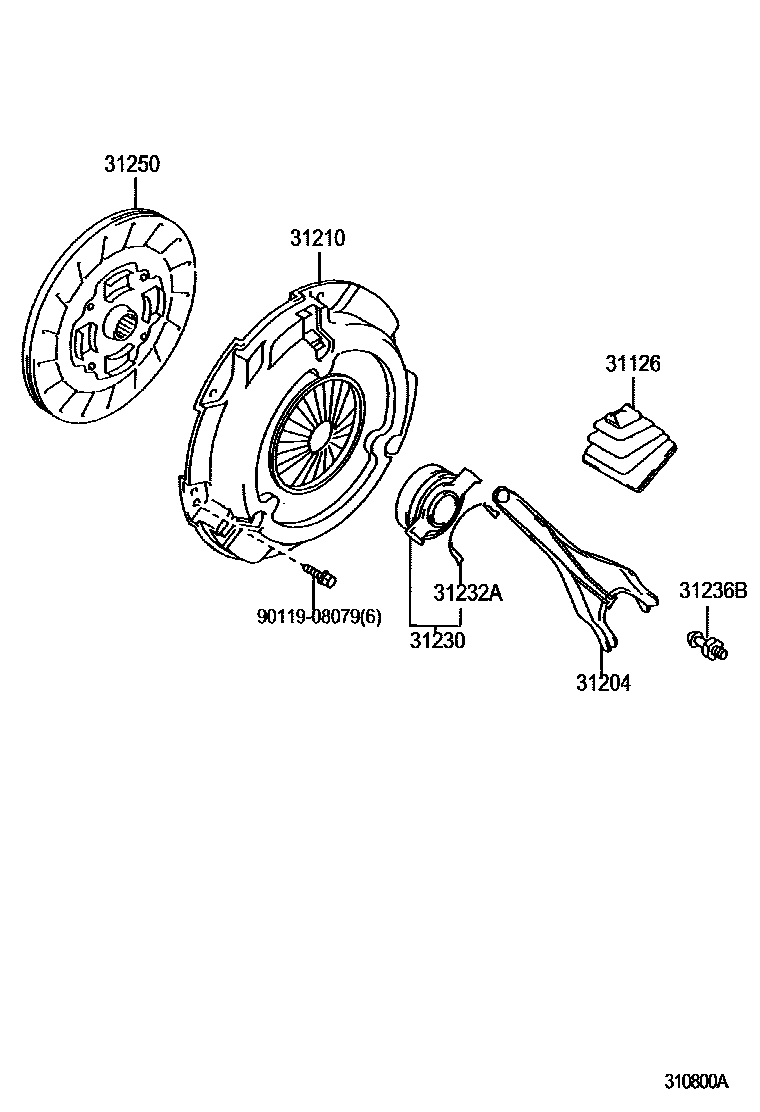

Toyota PICNIC/AVENSIS VERSO — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20080iCLM20200105-200507

main31126-32010iACM20..MTM200105-200507

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100iACM20..MTM200105-200507

main31204-20130iCLM20200105-200301

sub31204-20131

main31204-20131iCLM20200301-200507

31210COVER ASSY, CLUTCH

main31210-28070iCLM20200105-200408

sub31210-28071

main31210-28071iCLM20200409-200507

sub31210-28072

main31210-42010iACM20..MTM200105-200507

sub31210-42020

31230BEARING ASSY, CLUTCH RELEASE

main31230-44010iACM20..MTM200105-200505

sub31230-44011

main31230-44011iACM20..MTM200505-200507

main31230-44020iCLM20200105-200503

sub31230-44021

main31230-44021iCLM20200503-200507

31232ACLIP, RELEASE BEARING HUB

main31232-44010iACM20..MTM200105-200507

main31232-44020iCLM20200105-200507

31236BSUPPORT, RELEASE FORK

main31236-20060iACM20..MTM200105-200507

main31236-20080iCLM20200105-200507

31250DISC ASSY, CLUTCH

main31250-12410iCLM20200105-200507

sub31250-12411

main31250-42010iACM20..MTM200105-200507

sub31250-42011

9011908079

main90119-08079

8 parts on this diagram · 2 diagrams in section
