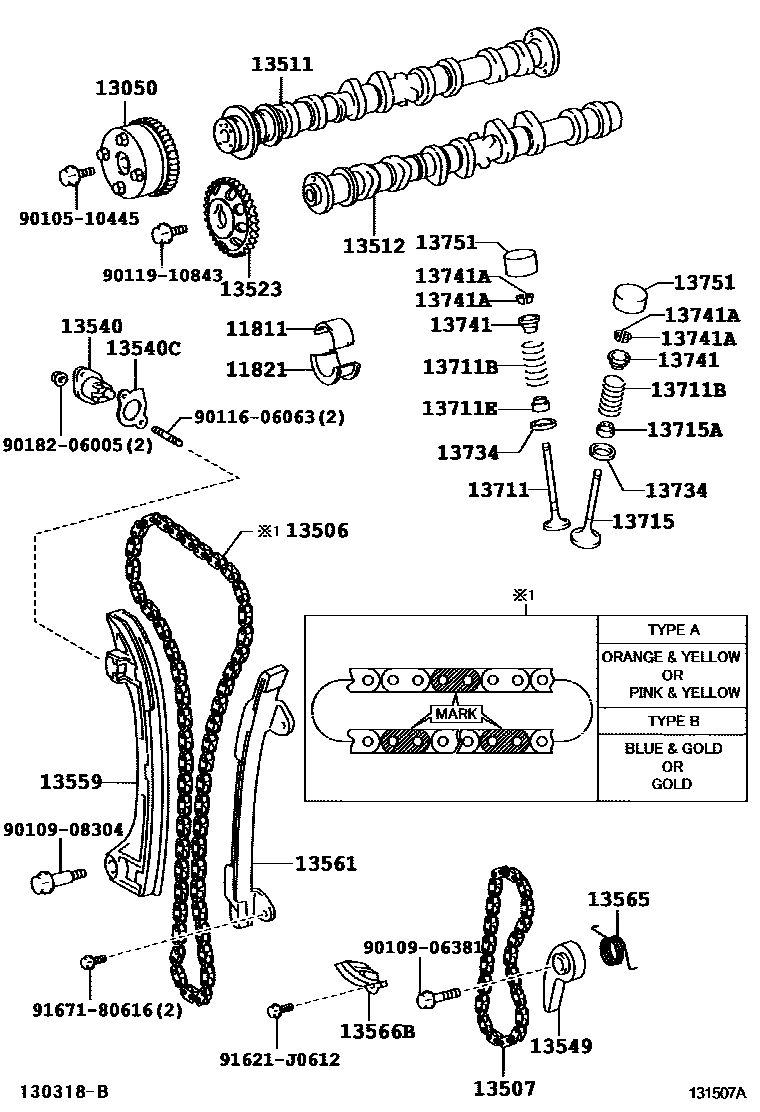

Toyota PICNIC/AVENSIS VERSO — CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
MARK 1,MARK 1
MARK 1
MARK 2,MARK 2
MARK 2
MARK 3,MARK 3
MARK 3
11821BEARING, CAMSHAFT, NO.2
MARK 1,MARK 1
MARK 1
MARK 2
MARK 2,MARK 2
MARK 3,MARK 3
MARK 3
13506CHAIN SUB-ASSY
TYPE A:REFER ILLUST.
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
(J)
13512CAMSHAFT, NO.2
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13549PLATE, CHAIN TENSIONER
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13565SPRING, CHAIN DAMPER
13566BGUIDE, TIMING CHAIN
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13734SEAT, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
T=5.06
T=5.08
T=5.10
T=5.12
T=5.14
T=5.16
T=5.18
T=5.20
T=5.22
T=5.24
T=5.26
T=5.28
T=5.30
T=5.32
T=5.34
T=5.36
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.54
T=5.56
T=5.58
T=5.60
T=5.62
T=5.64
T=5.66
T=5.68
T=5.70
T=5.72
T=5.74
9010510445
main90105-10445
9010906381
main90109-06381
9010908304
main90109-08304
9011606063
main90116-06063
9011910843
main90119-10843
9018206005
main90182-06005
91621J0612
main91621-J0612
9167180616
main91671-80616
32 parts on this diagram · 2 diagrams in section
