Toyota PICNIC/AVENSIS VERSO — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

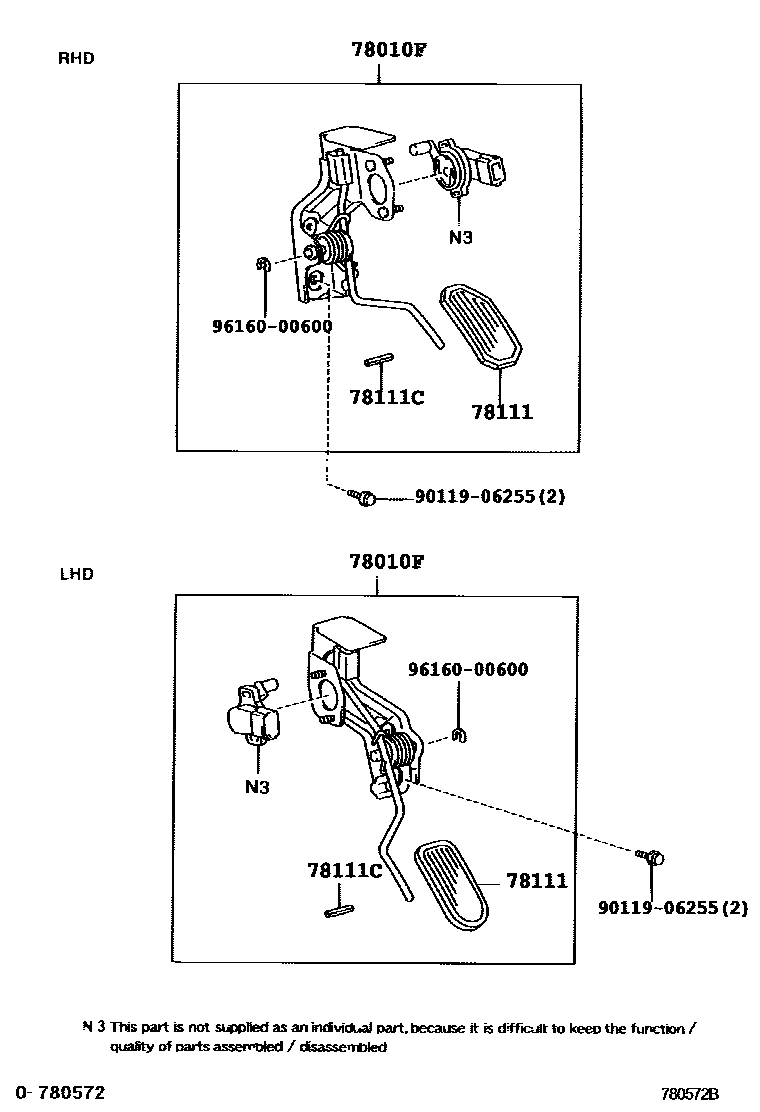

78010FPEDAL ASSY, ACCELERATOR

main78010-44040iCLM20..RHD200105-200310

sub78010-28240

main78010-44050iACM20,CLM20..LHD..MTM200105-200507

main78010-44070iACM2#,CLM20..RHD200310

main78010-44080iACM20..LHD..ATM200310-200507

78111PEDAL, ACCELERATOR

main78111-32020iACM20,CLM20..RHD200105-200310

main78111-33020iACM20,CLM20..LHD200105-200507

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019iACM20,CLM20200105-200310

9011906255

main90119-06255

9616000600

main96160-00600

5 parts on this diagram · 4 diagrams in section
