Toyota PICNIC/AVENSIS VERSO — SHORT BLOCK ASSEMBLY

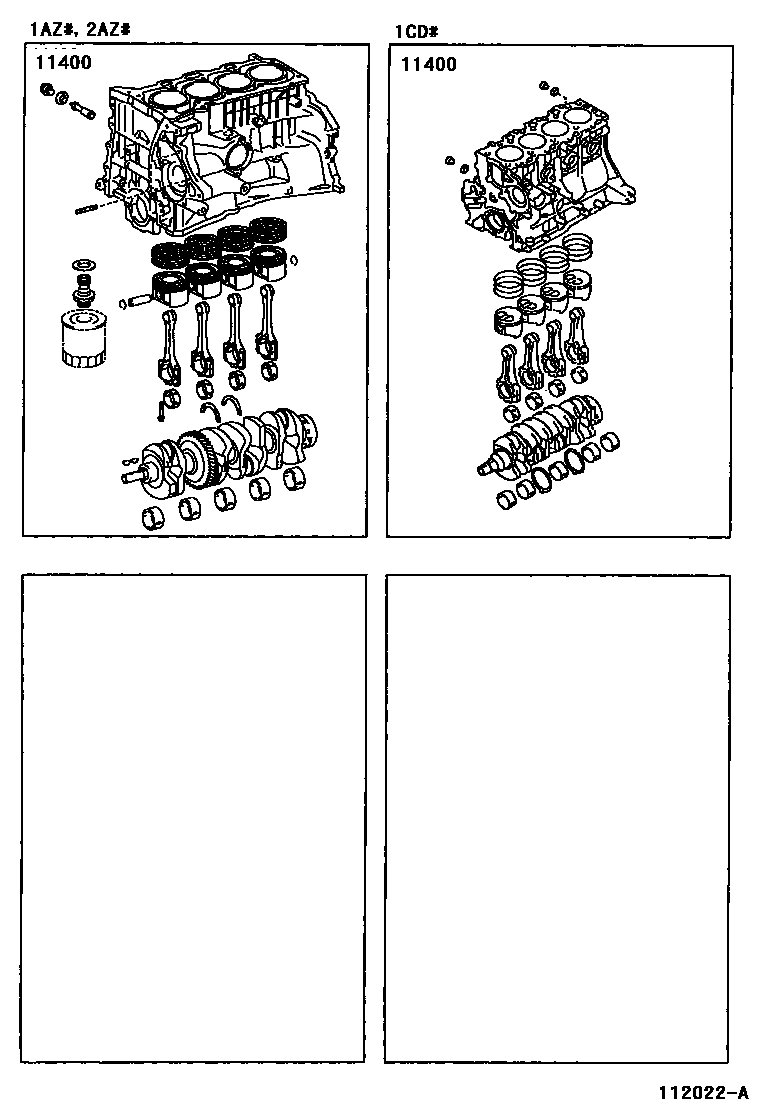

Parts diagram
11400BLOCK ASSY, SHORT
main11400-27130i200105-200507
main11400-28050i200310-200608
sub11400-28311
main11400-28070i200105-200608
sub11400-28261
main11400-28180i200310-200311
sub11400-28070
main11400-28261i200608
main11400-28311i200608

1 parts on this diagram · 1 diagram in section
