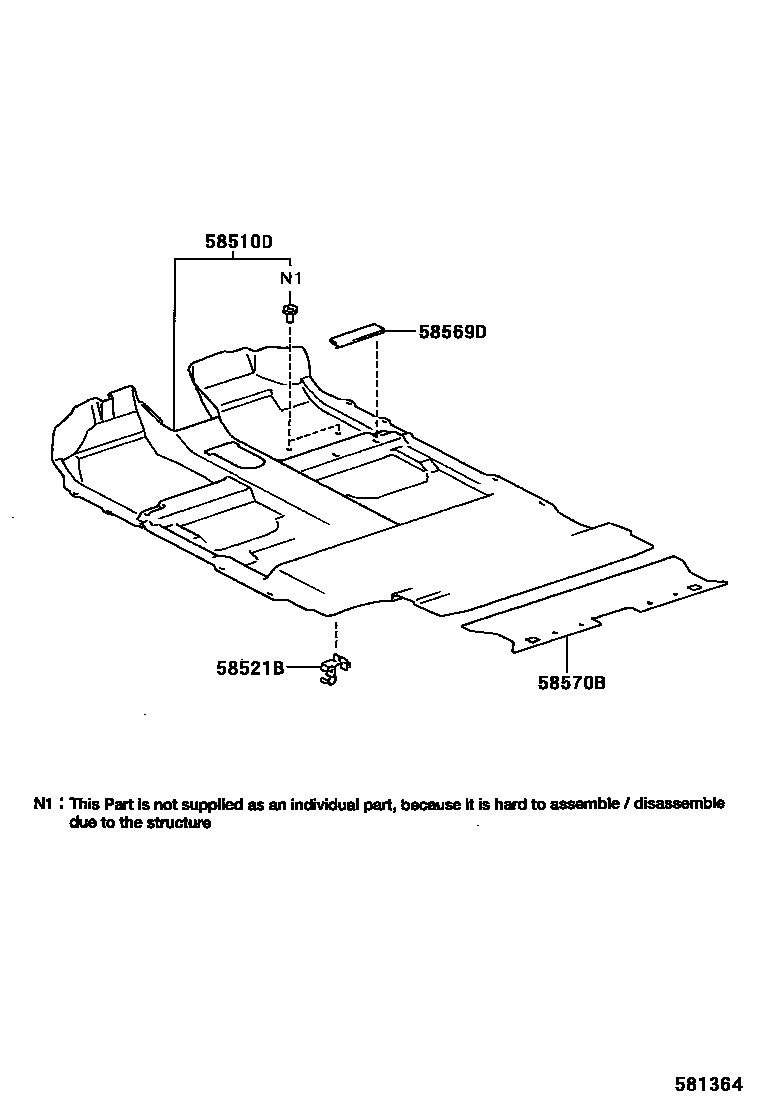

Toyota PICNIC/AVENSIS VERSO — MAT & CARPET

0001 1 0002 1

58510DCARPET ASSY, FLOOR, FRONT

main58500-44010-A0iACM20..ATM..(ARL,GEN)200105-200310

IVORY,TRIM0#

main58510-44830-B0iACM20,CLM20..RHD..MTM..EUR200105-200310

MEDIUM GRAY,TRIM1#

main58510-44840-B0iACM20..RHD..ATM..EUR200105-200310

MEDIUM GRAY,TRIM1#

main58510-44850-B0iACM20,CLM20..LHD..MTM200105-200310

MEDIUM GRAY,TRIM1#

main58510-44860-B0iACM20,CLM20..LHD..MTM200105-200310

W(REAR HEATER),MEDIUM GRAY,TRIM1#

main58510-44870-B0iACM20..LHD..ATM200105-200310

MEDIUM GRAY,TRIM1#

main58510-44880-B0iACM20..LHD..ATM200105-200310

W(REAR HEATER),MEDIUM GRAY,TRIM1#

main58510-44890-A0iACM20..MTM..ARL200110-200310

IVORY,TRIM0#

main58510-44B20-B0iACM20,CLM20..RHD..MTM200310-200507

DK.GRAY,TRIM1#

main58510-44B30-B0iACM20..RHD..ATM..EUR200310-200507

DK.GRAY,TRIM1#

main58510-44B40-B0iACM20,CLM20..LHD..MTM200310-200507

DK.GRAY,TRIM1#

main58510-44B50-B0iACM20,CLM20..LHD..MTM200310-200507

W(REAR HEATER),DK.GRAY,TRIM1#

main58510-44B60-B0iACM20..LHD..ATM200310-200507

DK.GRAY,TRIM1#

main58510-44B70-B0iACM20..LHD..ATM200310-200507

W(REAR HEATER),DK.GRAY,TRIM1#

main58510-44B80-A1iACM20..GEN200310-200912

IVORY,TRIM07

main58510-44B80-B0iACM21200310-200912

DK.GRAY,TRIM1#

58521BHOOK, FLOOR CARPET

main58521-44020iACM20,CLM20200105-200310

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-44010-A1iACM20..ARL,GEN200105-200912

IVORY,TRIM0#

sub58569-44010

main58569-44010-B5iACM2#,CLM20..ARL,EUR200408-200912

DK.GRAY,TRIM12

sub58569-44010

main58569-44010-C0iACM2#,CLM20..ARL,EUR200105-200408

BLACK,TRIM1#

sub58569-44010

58570BMAT ASSY, REAR FLOOR

main58517-44040iACM2#..ARL,GEN200105-200310

4 parts on this diagram · 2 diagrams in section
