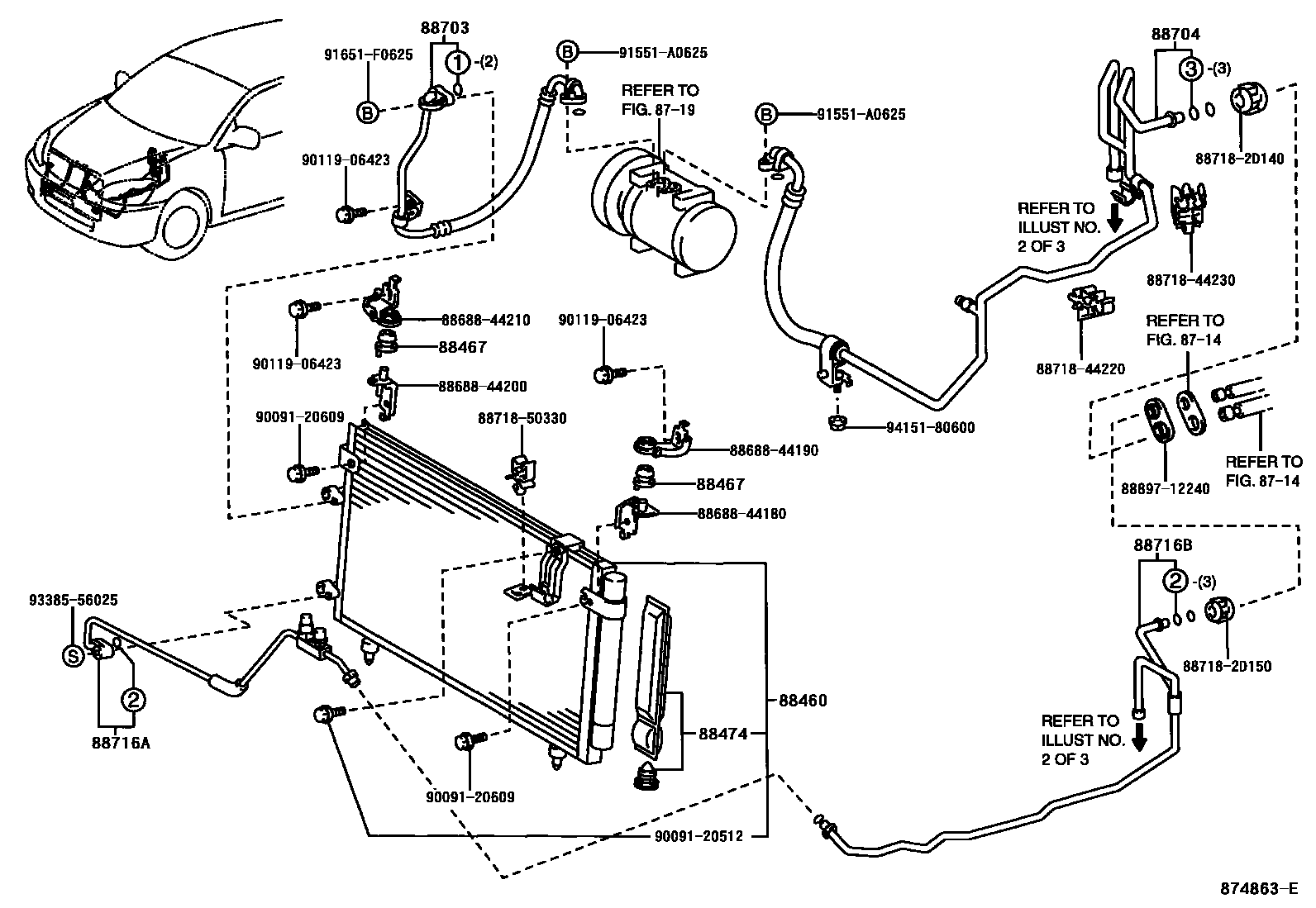

Toyota PICNIC/AVENSIS VERSO — HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT--MAKER OPTION 0002 1FRONT--MAKER OPTION 0003 1FRONT--DEALER OPTION 0004 1FRONT--DEALER OPTION 0005 1FRONT--MAKER OPTION 0006 1FRONT--MAKER OPTION--W(REAR C0007 1 0008 1FRONT--MAKER OPTION 0009 1FRONT--MAKER OPTION--W(REAR C0010 1FRONT--DEALER OPTION 0011 1REAR 0012 1REAR 0013 1REAR 0014 1REAR 0015 1O-RING

8714

8719

88460CONDENSER ASSY, COOLER

main88460-44430iACM20..ARL200110-200310

main88460-44430iACM20,CLM20..RHD..(EUR,GEN)200105-200310

W(MANUAL AIR CONDITIONER & REAR COOLER)

main88460-44440iACM20,CLM20..LHD200105-200310

W(MANUAL AIR CONDITIONER & REAR COOLER)

main88460-44450iACM20,CLM20..RHD..EUR200105-200310

W(MANUAL AIR CONDITIONER)

main88460-44460iACM20,CLM20..LHD200105-200310

W(MANUAL AIR CONDITIONER)

main88460-44510iACM2#,CLM20..RHD200310

main88460-44520iACM20,CLM20..LHD200310-200507

main88460-44530iACM20,CLM20..LHD200310-200507

W(REAR COOLER)

sub88460-44520

88467CUSHION, COOLER CONDENSER, NO.1

main88467-28050iACM2#,CLM20200105-200310

88474DRYER, COOLER

main88474-17010iACM2#,CLM20200310

main88474-47010iACM20,CLM20200105-200310

88703HOSE SUB-ASSY, DISCHARGE

main88703-44270iACM20200105-200310

W(MANUAL AIR CONDITIONER & REAR COOLER)

main88703-44280iCLM20200105-200507

main88703-44310iACM20..EUR200105-200507

W(MANUAL AIR CONDITIONER)

main88703-44390iACM21200310

88704HOSE SUB-ASSY, SUCTION

main88704-44250iACM20..RHD..EUR200105-200507

MAKER OPTION

main88704-44261iACM20..RHD200105-200310

MAKER OPTION,W(REAR COOLER)

main88704-44270iACM20..LHD200105-200112

W(MANUAL AIR CONDITIONER)

sub88704-44271

main88704-44271iACM20..LHD200112-200507

MAKER OPTION

main88704-44281iACM20..LHD200105-200112

W(MANUAL AIR CONDITIONER & REAR COOLER)

sub88704-44282

main88704-44282iACM20..LHD200112-200310

MAKER OPTION,W(REAR COOLER)

main88704-44290iCLM20..RHD200105-200112

W(MANUAL AIR CONDITIONER)

sub88704-44291

main88704-44291iCLM20..RHD200112-200507

MAKER OPTION

main88704-44301iCLM20..RHD200105-200112

W(MANUAL AIR CONDITIONER & REAR COOLER)

sub88704-44302

main88704-44302iCLM20..RHD200112-200310

MAKER OPTION,W(REAR COOLER)

main88704-44310iCLM20..LHD200105-200507

MAKER OPTION

main88704-44321iCLM20..LHD200105-200310

MAKER OPTION,W(REAR COOLER)

main88704-44360iACM20..RHD..EUR200105-200310

DEALER OPTION

main88704-44370iACM20..LHD200105-200507

DEALER OPTION

main88704-44380iCLM20..RHD200105-200310

DEALER OPTION

main88704-44390iCLM20..LHD200105-200507

DEALER OPTION

main88704-44440iACM21200310

main88704-44450iACM20..RHD200310

MAKER OPTION,W(REAR COOLER)

main88704-44460iCLM20..RHD200310-200507

MAKER OPTION,W(REAR COOLER)

main88704-44470iACM20..LHD200310-200507

MAKER OPTION,W(REAR COOLER)

main88704-44480iCLM20..LHD200310-200507

MAKER OPTION,W(REAR COOLER)

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-44490iACM20,CLM20..RHD200105-200310

MAKER OPTION

main88710-44500iACM20,CLM20..LHD200105-200310

MAKER OPTION

main88710-44700iACM21200310

main88710-44710iACM20,CLM20..RHD200310

main88710-44720iACM20,CLM20..LHD200310-200507

main88716-44610iACM20,CLM20..RHD..EUR200105-200310

DEALER OPTION

main88716-44620iACM20,CLM20..LHD200105-200310

DEALER OPTION

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88710-44610iACM20,CLM20..RHD..EUR200105-200310

DEALER OPTION

main88710-44620iACM20,CLM20..LHD200105-200310

DEALER OPTION

sub88716-44680

sub88645-60030

main88716-44500iACM20,CLM20..RHD..EUR200105-200310

W(MANUAL AIR CONDITIONER)

main88716-44511iACM20,CLM20..RHD200105-200310

W(MANUAL AIR CONDITIONER & REAR COOLER)

main88716-44560iACM20,CLM20..LHD200105-200310

W(MANUAL AIR CONDITIONER)

main88716-44571iACM20,CLM20..LHD200105-200310

W(MANUAL AIR CONDITIONER & REAR COOLER)

main88716-44700iACM20,CLM20..LHD200310-200507

MAKER OPTION

main88716-44710iACM20,CLM20..LHD200310-200507

MAKER OPTION,W(REAR COOLER)

main88716-44720iACM2#,CLM20..RHD200310

MAKER OPTION,W(REAR COOLER)

main88716-44730iACM20,CLM20..RHD..EUR200310-200507

MAKER OPTION

main88716-44760iACM20,CLM20..LHD200310-200507

DEALER OPTION

8868844180BRACKET, COOLER DIAPHRAGM

main88688-44180

8868844190BRACKET, COOLER DIAPHRAGM

main88688-44190

8868844200BRACKET, COOLER DIAPHRAGM

main88688-44200

8868844210BRACKET, COOLER DIAPHRAGM

main88688-44210

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871844220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-44220

8871844230PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-44230

8871850330PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50330

8889712240VALVE, COOLER MAGNET

main88897-12240

9009120512

main90091-20512

9009120609

main90091-20609

9011906423

main90119-06423

91551A0625

main91551-A0625

91651F0625

main91651-F0625

9338556025

main93385-56025

9415180600

main94151-80600

26 parts on this diagram · 15 diagrams in section
