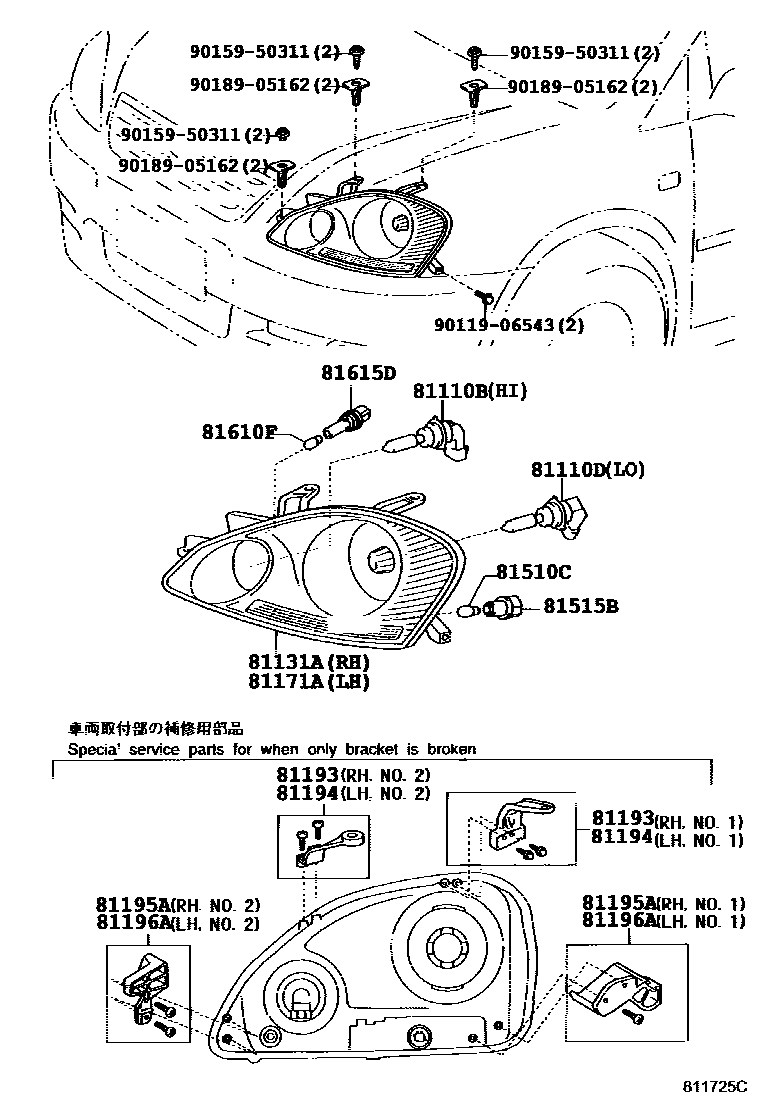

Toyota PICNIC/AVENSIS VERSO — HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110DBULB(FOR HEADLAMP, NO.2)
12V 51W,HALOGEN
81131AUNIT, HEADLAMP, RH
RH TRAFFIC SPEC
RH TRAFFIC SPEC
81171AUNIT, HEADLAMP, LH
RH TRAFFIC SPEC
RH TRAFFIC SPEC
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
NO.1
NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
NO.1
NO.2
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
NO.1
NO.2
NO.1
NO.2
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
NO.1
NO.2
NO.1
NO.2
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
9011906543
main90119-06543
9015950311
main90159-50311
9018905162
main90189-05162
15 parts on this diagram · 2 diagrams in section
