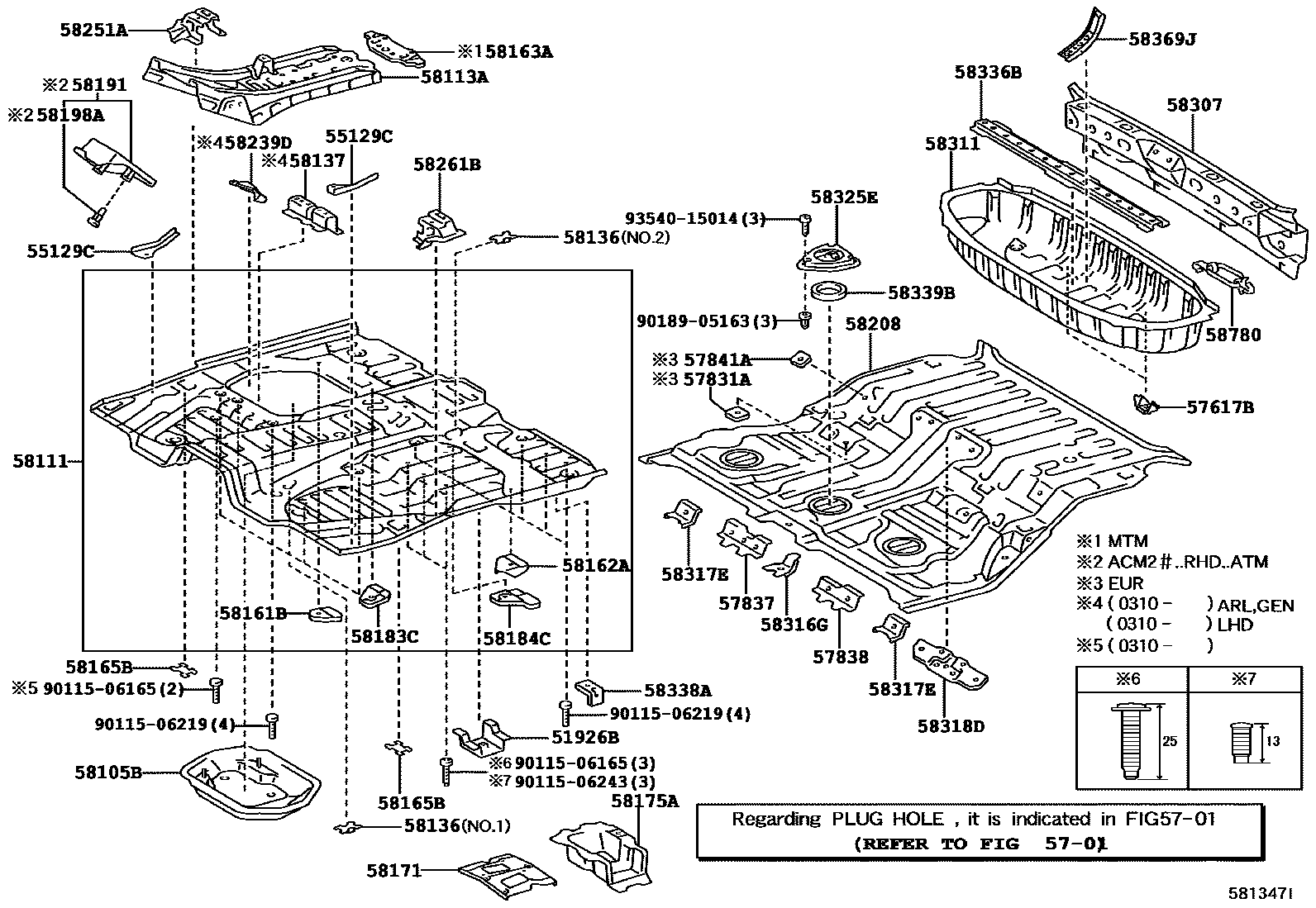

Toyota PICNIC/AVENSIS VERSO — FLOOR PAN & LOWER BACK PANEL
51926BREINFORCEMENT, SPARE WHEEL MOUNTING
55129CCOVER, DASH PANEL HOLE
RH
LH
5701
57617BRETAINER, REAR BUMPER ARM
57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57837REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3
57838REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4
57841AREINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58113APANEL, FRONT FLOOR, CENTER
58136COVER, FRONT FLOOR HOLE
NO.1
NO.2
58137BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58162AREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58163ARETAINER, CONSOLE BOX MOUNTING, NO.1
58165BCOVER, FRONT FLOOR, RH
58171REINFORCEMENT, PARKING BRAKE BASE
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58183CBRACKET, FRONT SEAT MOUNTING, INSIDE RH
58184CBRACKET, FRONT SEAT MOUNTING, INNER LH
58191FOOTREST, FRONT FLOOR
58198ACLIP, FOOTREST, NO.1
58208PAN, CENTER FLOOR
W(REAR HEATER)
58239DBRACKET, CABLE CLAMP
58251AREINFORCEMENT, FRONT SEAT, FRONT RH
58261BREINFORCEMENT, FRONT SEAT, FRONT LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58316GRETAINER, REAR SEAT, NO.1
58317ERETAINER, REAR SEAT, NO.2
58318DRETAINER, REAR SEAT, NO.3
58325ECOVER, REAR FLOOR SERVICE HOLE
58338AREINFORCEMENT, REAR FLOOR PAN, NO.2
58339BPACKING, REAR FLOOR SERVICE HOLE
58369JBRACKET, REAR FLOOR BRACE
58780BAND ASSY, TOOL BOX
9011506165
main90115-06165
9011506219
main90115-06219
9011506243
main90115-06243
9018905163
main90189-05163
9354015014
main93540-15014
43 parts on this diagram · 1 diagram in section
