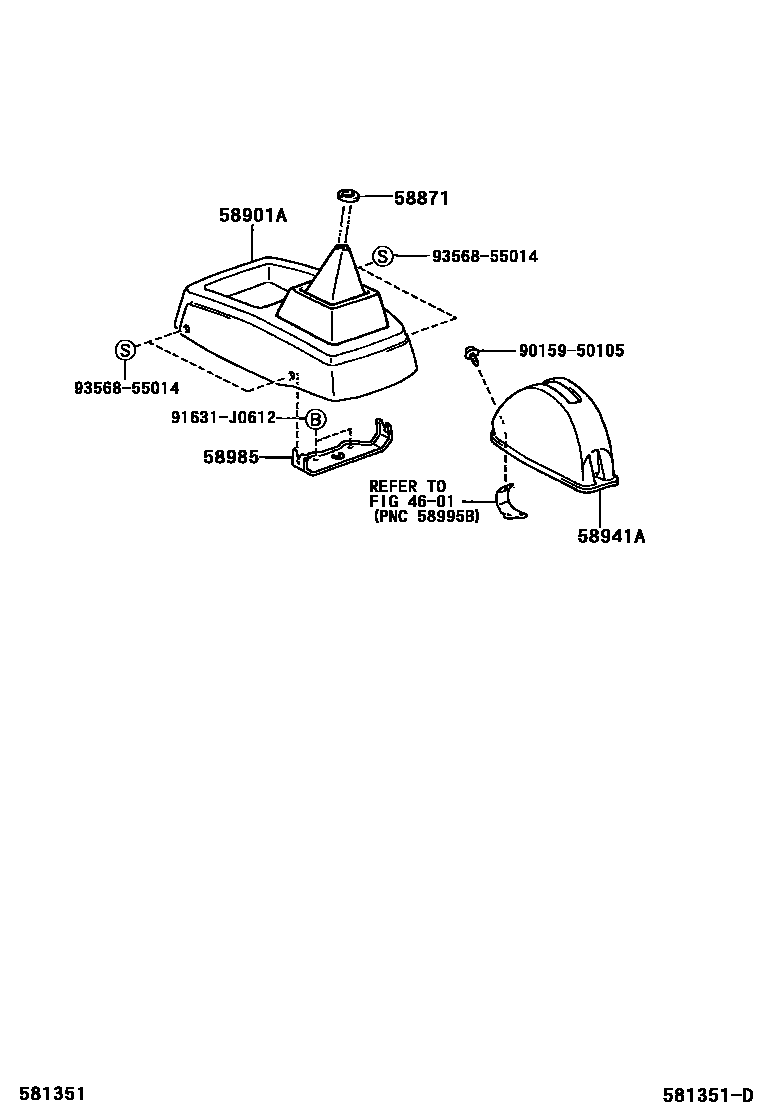

Toyota PICNIC/AVENSIS VERSO — CONSOLE BOX & BRACKET

4601

58871CUSHION, CONSOLE BOX

main58871-20060iACM20,CLM20..MTM200105-200507

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-44020-A0iACM20..MTM..ARL200110-200310

IVORY,TRIM0#

main58901-44020-C0iACM20,CLM20..MTM200105-200507

BLACK,TRIM1#

58941ACOVER, PARKING BRAKE HOLE

main58941-44010-A0iACM20..GEN200105-200912

IVORY,TRIM0#

sub58941-44010

main58941-44010-C0iACM20,CLM20..RHD..EUR200105-200912

BLACK,TRIM1#

sub58941-44010

main58941-44020-C0iACM20,CLM20..LHD200105-200507

BLACK,TRIM1#

58985RETAINER, CONSOLE BOX

main58985-44040iACM20,CLM20..MTM200105-200507

9015950105

main90159-50105

91631J0612

main91631-J0612

9356855014

main93568-55014

8 parts on this diagram · 1 diagram in section
