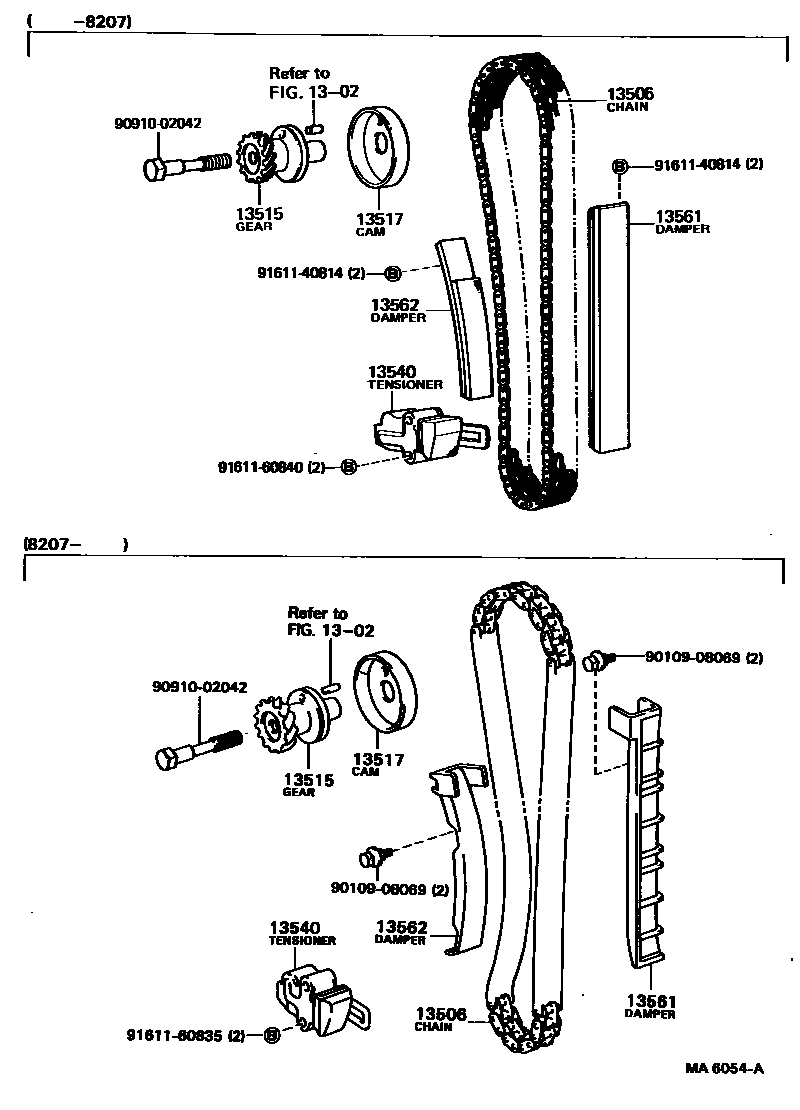

Toyota PICKUP — TIMING CHAIN
1302CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
13515GEAR, DISTRIBUTOR DRIVE
N=13
N=13
13517CAM, FUEL PUMP DRIVE
13540TENSIONER ASSY, CHAIN, NO.1
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
9010908069
main90109-08069
9091002042
main90910-02042
9161140814
main91611-40814
9161160835
main91611-60835
9161160840
main91611-60840
12 parts on this diagram · 1 diagram in section
TIMING CHAIN for Toyota PICKUP
This section contains 12 genuine Toyota parts for the TIMING CHAIN system of the Toyota PICKUP. Key components include: CAMSHAFT & VALVE, CHAIN SUB-ASSY, GEAR, DISTRIBUTOR DRIVE, CAM, FUEL PUMP DRIVE, TENSIONER ASSY, CHAIN, NO.1.
