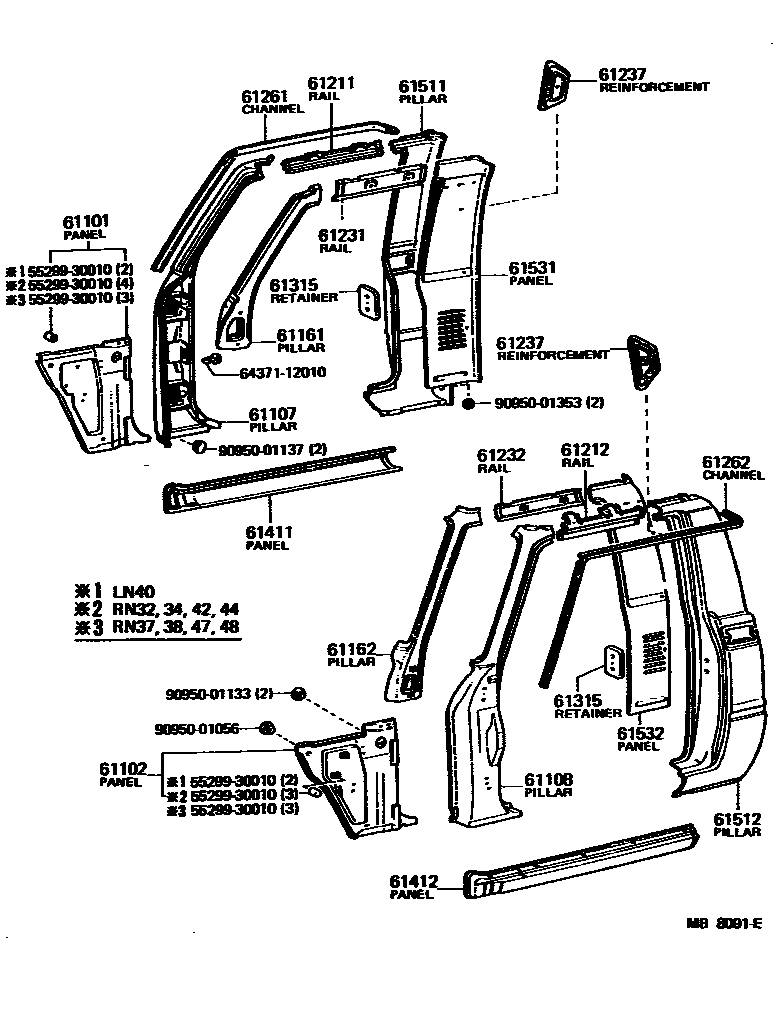

Toyota PICKUP — SIDE MEMBER
61101PANEL SUB-ASSY, COWL SIDE, RH
W/AUTO-DRIVE
61102PANEL SUB-ASSY, COWL SIDE, LH
61107PILLAR SUB-ASSY, FRONT BODY OUTER, RH
61108PILLAR SUB-ASSY, FRONT BODY OUTER, LH
61161PILLAR, FRONT BODY, UPPER INNER RH
W/REMOVABLE ROOF
61162PILLAR, FRONT BODY, UPPER INNER LH
W/REMOVABLE ROOF
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61237REINFORCEMENT, SAFETY BAND ANCHORAGE
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61315RETAINER, DOOR LOCK STRIKER PLATE
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61511PILLAR, QUARTER LOCK, RH
61512PILLAR, QUARTER LOCK, LH
61531PANEL, BACK CORNER, INNER RH
W/REMOVABLE ROOF
61532PANEL, BACK CORNER, INNER LH
W/REMOVABLE ROOF
5529930010CAP, TEE NUT(FOR 6MM)
main55299-30010
6437112010RETAINER, PACKAGE TRAY TRIM
main64371-12010
9095001056
main90950-01056
9095001133
main90950-01133
9095001137
main90950-01137
9095001353
main90950-01353
26 parts on this diagram · 1 diagram in section
SIDE MEMBER for Toyota PICKUP
This section contains 26 genuine Toyota parts for the SIDE MEMBER system of the Toyota PICKUP. Key components include: PANEL SUB-ASSY, COWL SIDE, RH, PANEL SUB-ASSY, COWL SIDE, LH, PILLAR SUB-ASSY, FRONT BODY OUTER, RH, PILLAR SUB-ASSY, FRONT BODY OUTER, LH, PILLAR, FRONT BODY, UPPER INNER RH.
