Toyota PICKUP — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-89104-03iRN34,44198103-198108

GRAY,GRAY

main87810-89104-04iRN34,44198103-198108

BLUE,BLUE

main87810-89104-05iRN34,44198103-198108

BEIGE,BEIGE

main87810-89108-03iLN40,RN3#,4#..DLX,SR5197908-198108

NON GLARE TYPE,GRAY,GRAY

main87810-89108-04iLN40,RN3#,4#..DLX,SR5197908-198108

NON GLARE TYPE,BLUE,BLUE

main87810-89108-05iLN40,RN3#,4#..DLX,SR5197908-198108

NON GLARE TYPE,BEIGE,BEIGE

main87810-89110-03iLN40198101-198103

GRAY,GRAY

main87810-89110-04iLN40,RN38,48198103-198108

BLUE,BLUE

main87810-89110-05iLN40198101-198103

BEIGE,BEIGE

main87810-89113-03iRN34,44198108-198307

GRAY,GRAY

main87810-89113-04iRN34,44198108-198307

BLUE,BLUE

main87810-89113-05iRN34,44198108-198307

BEIGE,BEIGE

main87810-89114-03iLN40,RN3#,4#..DLX,SR5198108-198307

NON GLARE TYPE,GRAY,GRAY

main87810-89114-04iLN40,RN3#,4#..DLX,SR5198108-198307

NON GLARE TYPE,BLUE,BLUE

main87810-89114-05iLN40,RN3#,4#..DLX,SR5198108-198307

NON GLARE TYPE,BEIGE,BEIGE

main87810-89116-03iLN40,RN38,48198108-198307

GRAY,GRAY

main87810-89116-04iLN40,RN38,48198108-198307

BLUE,BLUE

main87810-89116-05iLN40,RN38,48198108-198307

BEIGE,BEIGE

87810BBULB, INNER REAR VIEW MIRROR LAMP

main99132-13050iLN40,RN3#,4#197808-198307

12V 5W,12V 5W

87831SPACER (FOR INSIDE MIRROR)

main87831-95010iRN37,38,47,48197901-198307

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87814-12020iLN40,RN3#,4#197808-198307

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-89109iLN40,RN3#,4#..SR5198108-198307

main87910-89118iRN44..5F..SR5..CBU198301-198307

MOJAVE PACKAGE

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-89112iLN40,RN3#,4#..3QT,HLF197808-198307

main87940-89121iRN44..5F..SR5..CBU198301-198307

MOJAVE PACKAGE

8782712020ABSORBER, INNER REAR VIEW MIRROR

main87827-12020

9015250017

main90152-50017

9016249001

main90162-49001

9323915014

main93239-15014

9323965016

main93239-65016

9353015016

main93530-15016

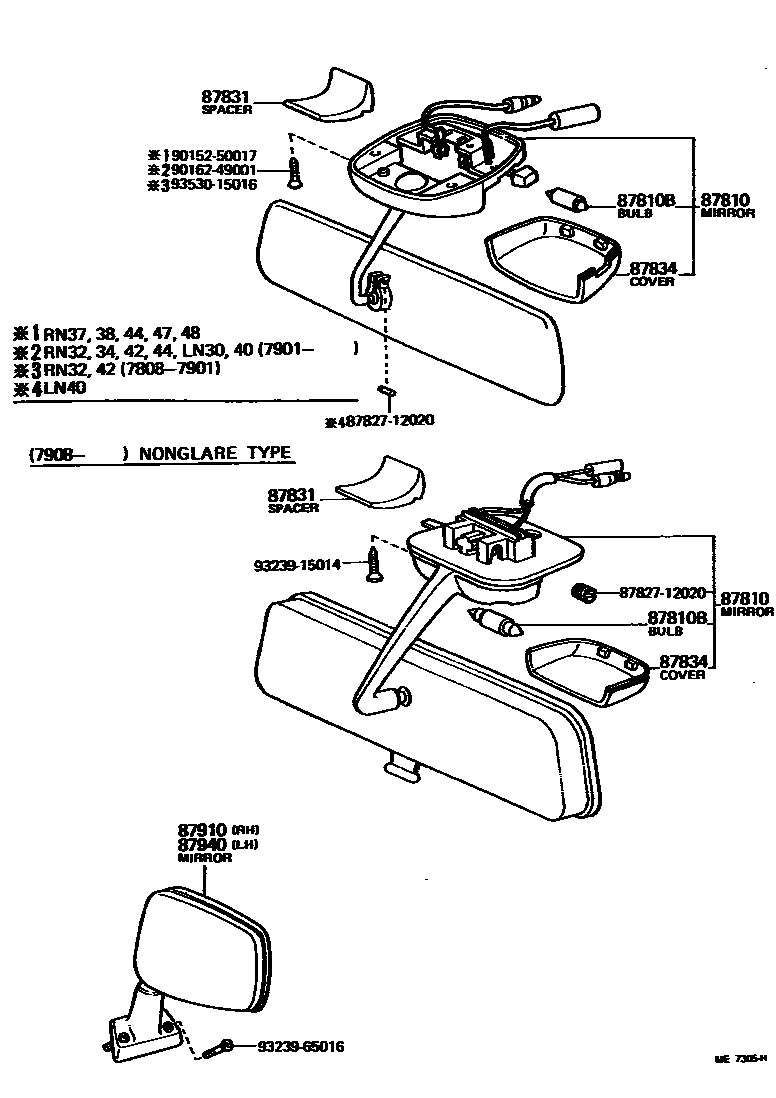

12 parts on this diagram · 1 diagram in section
