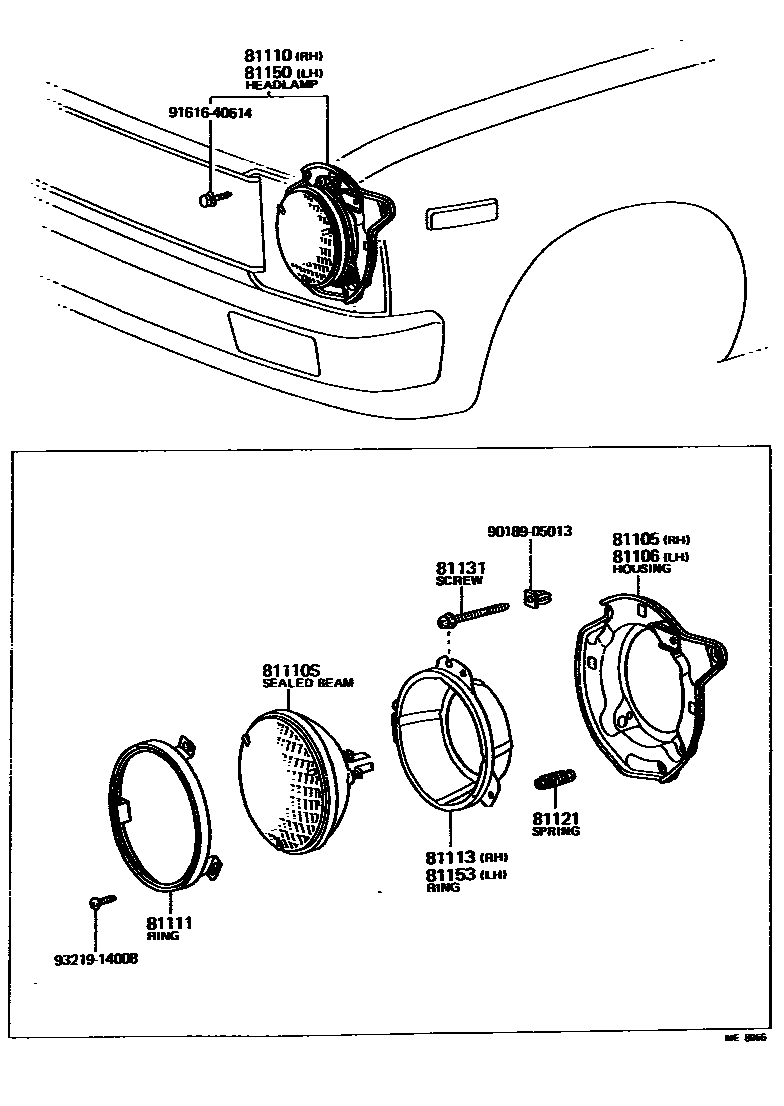

Toyota PICKUP — HEADLAMP

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-89117i197808-198108

main81105-89125i198108-198307

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-89117i197808-198108

main81106-89125i198108-198307

81110HEADLAMP ASSY, RH

main81110-39475i197808-198108

main81110-39745i198108-198307

main81110-39755i198108-198307

HALOGEN

81110SSEALED BEAM UNIT, NO.1

main90981-01023×2i197808-198108

12V 60/50W,*WB,12V 60/50W

main90981-04004×2i198108-198307

12V 65/55W,*WB,12V 65/55W

main90981-04016×2i198108-198307

12V 65/55W,*WB,*HAL,12V 65/55W,HALOGEN

81111RING, SEALED BEAM RETAINING

main81111-16020×2i198108-198307

main81111-89117×2i197808-198108

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-89125i198108-198307

main81153-95188i197808-198108

81121SPRING, HEADLAMP TENSION

main81121-16020×2i198108-198307

main81121-62010×2i197808-198108

81131SCREW, HEADLAMP ADJUSTING

main81131-10031×4i197808-198108

main81131-20360×4i198108-198307

81150HEADLAMP ASSY, LH

main81150-39475i197808-198108

main81150-39745i198108-198307

main81150-39755i198108-198307

HALOGEN

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-89117i197808-198108

main81153-89125i198108-198307

9018905013

main90189-05013

9161640614

main91616-40614

9321914008

main93219-14008

13 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota PICKUP

This section contains 16 genuine Toyota parts for the HEADLAMP system of the Toyota PICKUP. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, HEADLAMP KIT, W/O SEALED BEAM, RH, SEALED BEAM UNIT, NO.1.
