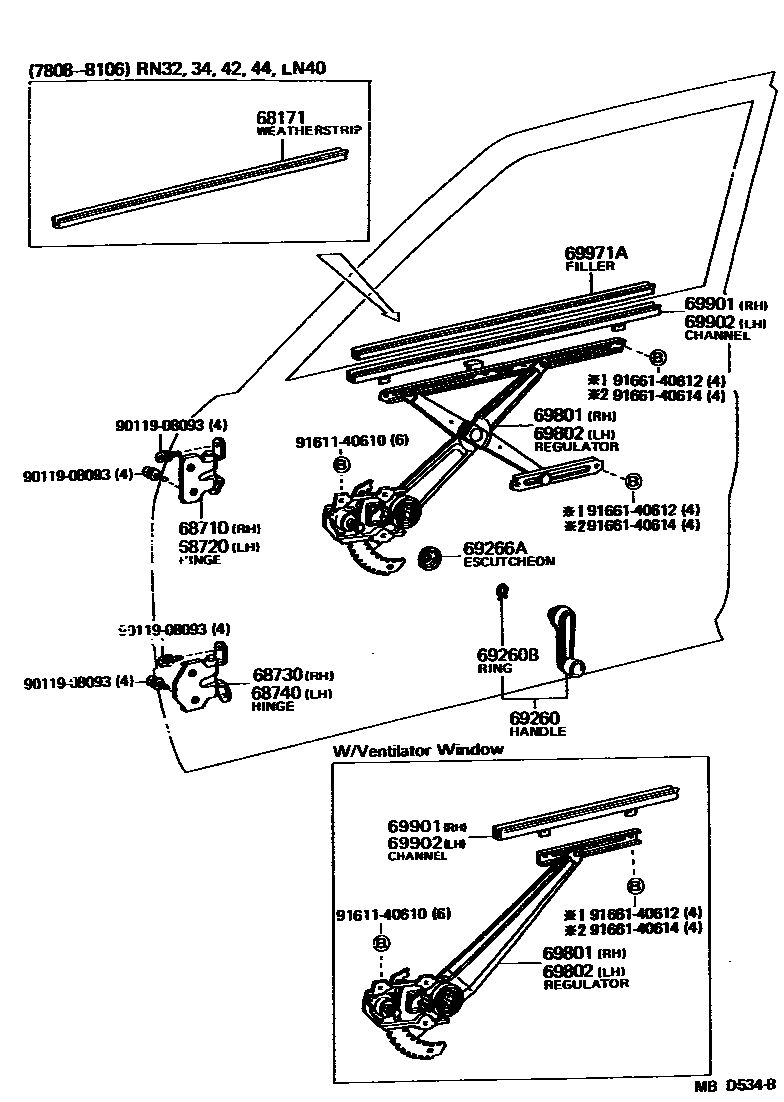

Toyota PICKUP — FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68173-89102×4i197808-198106

W/O *VW

main68173-89103×4i197908-198106

W/*VW

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14020i197808-198307

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14020i197808-198307

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14020i197808-198307

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14020i197808-198307

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-01×2i197808-198307

BLACK,BLACK

main69260-10040-04×2i197808-198307

BLUE,BLUE

main69260-10040-05×2i197808-198108

BEIGE,BEIGE

main69260-10040-06×2i198108-198307

BROWN,BROWN

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2i197808-198307

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69266-22010×2i197908-198307

main69266-22010-01×2i197808-197908

BLACK,BLACK

main69266-22010-04×2i197808-197908

BLUE,BLUE

main69266-22010-05×2i197808-197908

BEIGE,BEIGE

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-89105i197808-198307

W/O *VW

main69801-89106i197908-198307

W/*VW

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-89105i197808-198307

W/O *VW

main69802-89106i197908-198307

W/*VW

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-89105i197808-198307

W/O *VW

main69901-89106i197908-198307

W/*VW

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-89105i197808-198307

W/O *VW

main69901-89106i197908-198307

W/*VW

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-89101×4i198106-198209

W/*VW

main69971-89102×4i198106-198209

W/O *VW

main69971-95110×2i197901-198209

W/O *VW

main69971-95111×2i197908-198209

W/*VW

9011908093

main90119-08093

9161140610

main91611-40610

9166140612

main91661-40612

9166140614

main91661-40614

17 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota PICKUP

This section contains 17 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota PICKUP. Key components include: WEATHERSTRIP, FRONT DOOR GLASS CHANNEL, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
