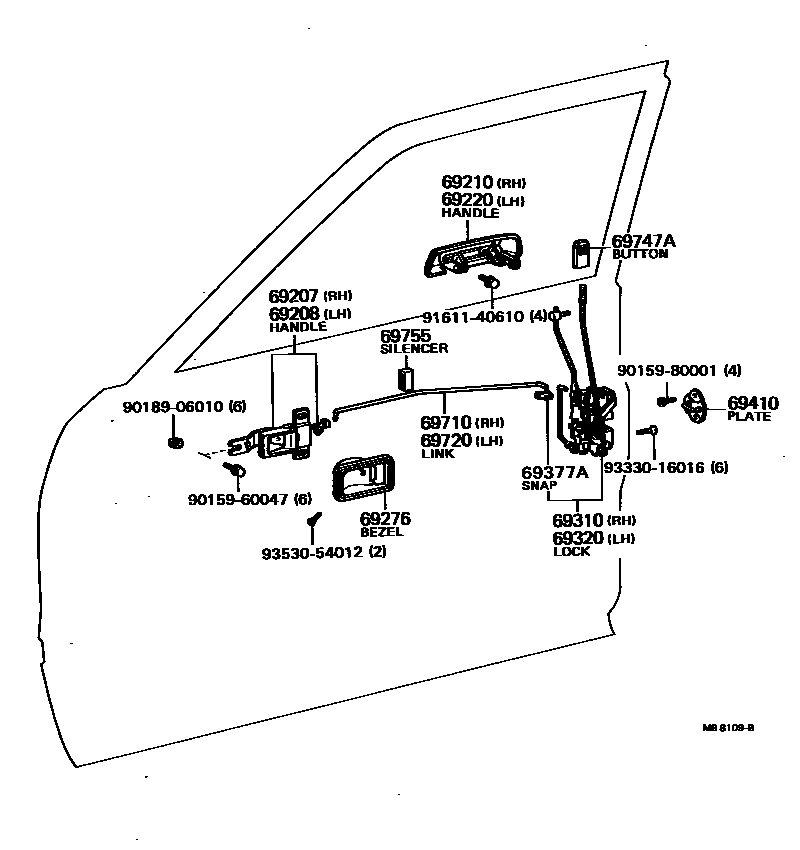

Toyota PICKUP — FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-89103-01iLN40,RN3#,4#197808-198307

BLACK,BLACK

main69205-89103-04iLN40,RN3#,4#197808-198307

BLUE,BLUE

main69205-89103-05iRN34,44..STD198108-198307

BEIGE,BEIGE

main69205-89103-16iLN40,RN3#,4#..DLX,SR5198108-198307

BROWN,BROWN

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-89103-01iLN40,RN3#,4#197808-198307

BLACK,BLACK

main69206-89103-04iLN40,RN3#,4#197808-198307

BLUE,BLUE

main69206-89103-05iLN40,RN3#,4#197808-198108

BEIGE,BEIGE

main69206-89103-16iLN40,RN3#,4#..DLX,SR5198108-198307

BROWN,BROWN

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-89106iLN40,RN3#,4#197808-198202

main69210-89107iLN40,RN3#,4#198202-198307

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-89106iLN40,RN3#,4#197808-198202

main69220-89107iLN40,RN3#,4#198202-198307

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69276-10012-01×2iRN38,48198202-198307

BLACK,BLACK

main69276-10012-04×2iRN38,48198202-198307

BLUE,BLUE

main69276-10012-56×2iRN38,48198202-198307

BROWN,BROWN

main69277-89103-01×2iLN40,RN3#,4#197808-198202

BLACK,BLACK

main69277-89103-04×2iLN40,RN3#,4#197808-198202

BLUE,BLUE

main69277-89103-05×2iLN40,RN3#,4#197808-198108

BEIGE,BEIGE

main69277-89103-36×2iLN40,RN34,44..DLX,SR5198202-198307

BROWN,BROWN

69310LOCK ASSY, FRONT DOOR, RH

main69310-89107iLN40,RN3#,4#197808-198108

main69310-89108iLN40,RN3#,4#198108-198307

69320LOCK ASSY, FRONT DOOR, LH

main69320-89107iLN40,RN3#,4#197808-198108

main69320-89108iLN40,RN3#,4#198108-198307

69377ASNAP, BACK DOOR UPPER LOCK ROD

main69377-30020×2iLN40,RN3#,4#197808-198108

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-89103×2iLN40,RN3#,4#197808-198307

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-89101iLN40,RN3#,4#197808-198307

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-89101iLN40,RN3#,4#197808-198307

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-20020-01×2iLN40,RN3#,4#197808-198307

BLACK,BLACK

sub69741-32010

main69741-20020-04×2iLN40,RN3#,4#197808-198307

BLUE,BLUE

sub69741-32010

main69741-20020-05×2iLN40,RN3#,4#197808-198108

BEIGE,BEIGE

sub69741-32010

main69741-20020-16×2iLN40,RN3#,4#..DLX,SR5198108-198307

BROWN,BROWN

sub69741-32010

69755SILENCER, FRONT DOOR LOCK LINK

main69759-89102×2iLN40,RN32,34,42,44197808-198307

main69759-95110×2iRN37,38,47,48197901-198307

sub69759-30021

9015960047

main90159-60047

9015980001

main90159-80001

9018906010

main90189-06010

9161140610

main91611-40610

9333016016

main93330-16016

9353054012

main93530-54012

19 parts on this diagram · 1 diagram in section
