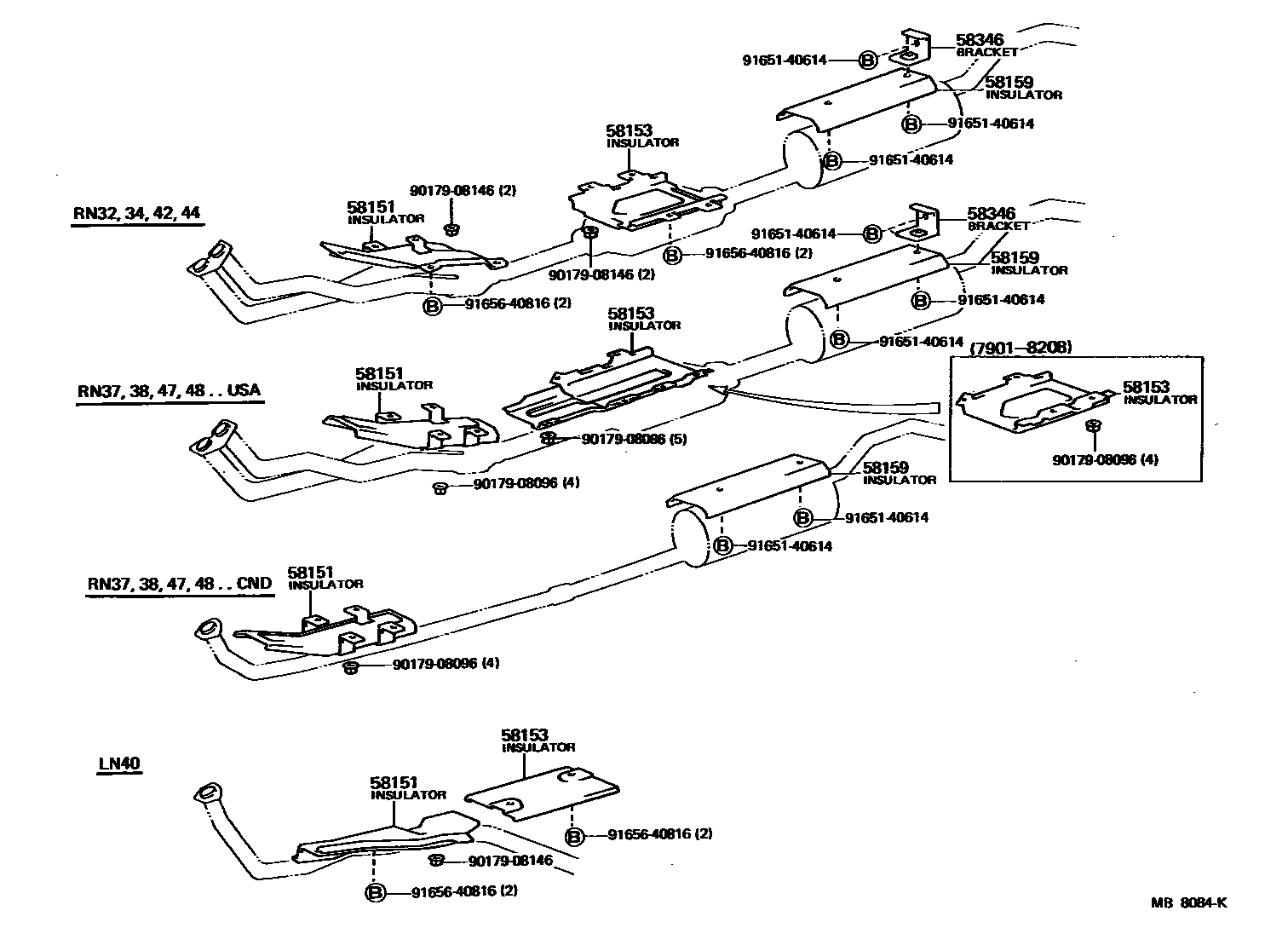

Toyota PICKUP — FLOOR INSULATOR
58151INSULATOR, FRONT FLOOR HEAT, NO.1
CALIFORNIA SPEC
58153INSULATOR, FRONT FLOOR HEAT, NO.2
CALIFORNIA SPEC
58159INSULATOR, MAIN MAFFLAR HEAT
58346BRACKET, REAR FLOOR HEAT INSULATOR
9017908096
main90179-08096
9017908146
main90179-08146
9165140614
main91651-40614
9165640816
main91656-40816
8 parts on this diagram · 1 diagram in section
FLOOR INSULATOR for Toyota PICKUP
This section contains 8 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota PICKUP. Key components include: INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, FRONT FLOOR HEAT, NO.2, INSULATOR, MAIN MAFFLAR HEAT, BRACKET, REAR FLOOR HEAT INSULATOR.
