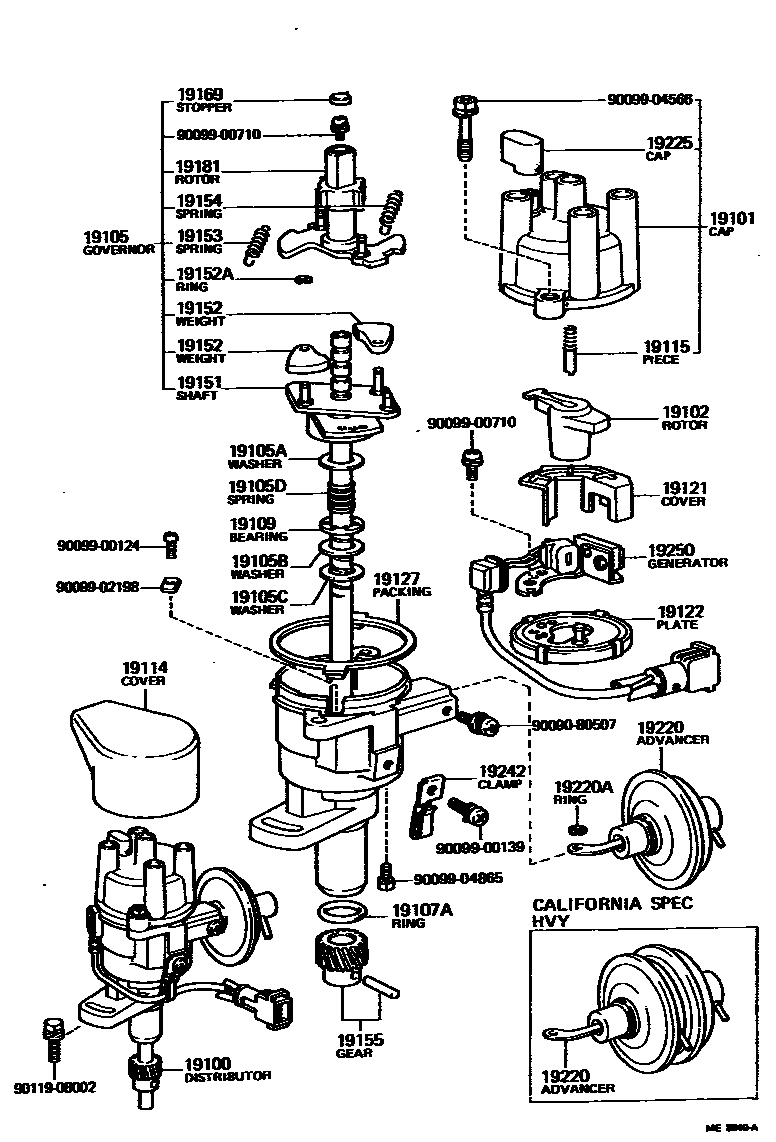

Toyota PICKUP — DISTRIBUTOR

0001 1 0002 1

19100DISTRIBUTOR ASSY

main19100-35030i22R..RN3#,4#198108-198208

main19100-35040i22R..RN3#,4#198008-198108

main19100-35130i22R..RN3#,4#198208-198307

main19100-38150i20R..RN32,42..MTM..USA197808-197908

sub19100-38081

main19100-38180i20R..RN37..USA197901-197908

sub19100-38091

main19100-38190i20R..RN3#,4#..MTM..CND197808-197908

main19100-38200i20R..RN42..3FC..CND197808-197908

main19100-38250i20R..RN3#,4#..(3QT,HLF)..USA197908-198008

CALIFORNIA SPEC

sub19100-38220

main19100-38260i20R..RN3#,4#..(3QT,HLF)..USA197908-198008

main19100-38270i20R..RN3#,4#..CND..CBU197908-198008

main19100-38280i20R..RN42..CND..IV197908-198008

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-35120i22R..RN3#,4#198208-198307

main19101-38150i20R..RN3#,4#197808-197908

main19101-38210i20R,22R..RN3#,4#197908-198208

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-15021i20R..RN3#,4#..USA197908-198008

main19102-33012i20R..RN3#,4#..USA197808-197908

main19102-38160i20R..RN3#,4#..CND197808-197908

sub19102-26150

main19102-38210i22R..RN3#,4#198008-198307

19105GOVERNOR SUB-ASSY

main19105-35010i22R..RN3#,4#198008-198108

main19105-35030i22R..RN3#,4#198108-198208

main19105-35130i22R..RN3#,4#198208-198307

main19105-38040i20R..RN3#,4#197808-197908

main19105-38210i20R..RN3#,4#..CND197908-198008

CALIFORNIA SPEC

19105AWASHER(FOR GOVERNOR SHAFT THRUST)

main90099-01417i20R..RN3#,4#197808-198008

19105BWASHER, NO.2(FOR GOVERNOR SHAFT THRUST)

main90099-01426i20R..RN3#,4#197808-198008

19105CWASHER, NO.3(FOR GOVERNOR SHAFT THRUST)

main90099-01427i20R..RN3#,4#197808-198008

19105DSPRING, NO.1(FOR GOVERNOR SHAFT THRUST)

main90099-17113i20R..RN3#,4#197808-198008

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14020i20R,22R..RN3#,4#197808-198307

sub90099-14090

19109BEARING, THRUST

main19109-38010i20R..RN3#,4#197808-198008

19114COVER, WATER PROOF(FOR DISTRIBUTOR)

main19114-35010i22R..RN3#,4#..CND198108-198208

COLD SPEC

main19114-35011i22R..RN3#,4#..CND198208-198307

COLD SPEC

main19114-38150i20R..RN3#,4#..CND197808-197908

COLD SPEC

main19114-38151i20R,22R..RN3#,4#..USA197908-198108

COLD SPEC

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i20R,22R..RN3#,4#197808-198307

19121COVER, DUST PROOF

main19121-27020i20R..RN3#,4#197808-197908

main19121-38210i20R,22R..RN3#,4#197908-198307

19122PLATE, STATIONARY, DISTRIBUTOR

main19122-88262i20R,22R..RN3#,4#197808-198307

19127PACKING, DUST PROOF

main19127-15010i20R..RN32,42197808-197812

main19127-15021i20R,22R..RN3#,4#197908-198307

main19127-38150i20R..RN3#,4#197812-197908

19151SHAFT, GOVERNOR

main19151-37081i22R..RN3#,4#198108-198307

main19151-38011i20R,22R..RN3#,4#197808-198108

19152WEIGHT, GOVERNOR

main19152-35030×2i22R..RN3#,4#198108-198307

main19152-44170×2i22R..RN3#,4#198008-198108

main19152-45060×2i20R..RN3#,4#197808-198008

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07104×2i20R..RN3#,4#197808-198008

main90099-07109×2i22R..RN3#,4#198008-198307

19153SPRING, GOVERNOR, A

main19153-35010i22R..RN3#,4#198008-198108

main19153-35011i22R..RN3#,4#198108-198208

main19153-35130i22R..RN3#,4#198208-198307

main19153-38040i20R..RN3#,4#197808-198008

19154SPRING, GOVERNOR, B

main19154-35010i22R..RN3#,4#198008-198108

main19154-35011i22R..RN3#,4#198108-198208

main19154-35130i22R..RN3#,4#198208-198307

main19154-38040i20R..RN3#,4#197808-198008

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-38150i20R..RN3#,4#197808-197908

main19195-38210i20R,22R..RN3#,4#197908-198307

19169STOPPER, CAM GREASE

main19169-32010i20R,22R..RN3#,4#197808-198307

sub19169-63011

19181ROTOR, DISTRIBUTOR, SIGNAL

main19181-26280i20R..RN3#,4#197808-197908

main19181-27050i22R..RN3#,4#198008-198208

main19181-38210i20R..RN3#,4#..CND197908-198008

CALIFORNIA SPEC

main19181-44230i22R..RN3#,4#198208-198307

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-35010i22R..RN3#,4#198008-198208

main19220-35120i22R..RN3#,4#198208-198307

main19220-38150i20R..RN37..CND197901-197908

main19220-38180i20R..RN37..USA197901-197908

main19220-38220i20R..RN42..HVY197908-198008

CALIFORNIA SPEC

main19220-38260i20R..RN3#,4#..(3QT,HLF)..USA197908-198008

19220ARING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)

main90099-07109i20R,22R..RN3#,4#197808-198307

19225CAP, RUBBER

main19225-38011i20R,22R..RN3#,4#197808-198208

main19225-41140i22R..RN3#,4#198208-198307

19242CLAMP, CORD

main19242-26250i20R,22R..RN3#,4#197808-198108

main19242-37080i22R..RN3#,4#198108-198307

19250GENERATOR ASSY, SIGNAL

main19250-37080i22R..RN3#,4#198108-198307

main19250-38150i20R..RN3#,4#..USA197808-197908

main19250-38190i20R..RN3#,4#..CND197808-197908

main19250-38210i22R..RN3#,4#198008-198108

main19250-38260i20R..RN3#,4#..(3QT,HLF)..USA197908-198008

main19250-38270i20R..RN3#,4#..CND197908-198008

9009080507

main90090-80507

9009900124

main90099-00124

9009900139

main90099-00139

9009900710

main90099-00710

9009902198

main90099-02198

9009904566

main90099-04566

9009904865

main90099-04865

9011908002

main90119-08002

36 parts on this diagram · 2 diagrams in section
