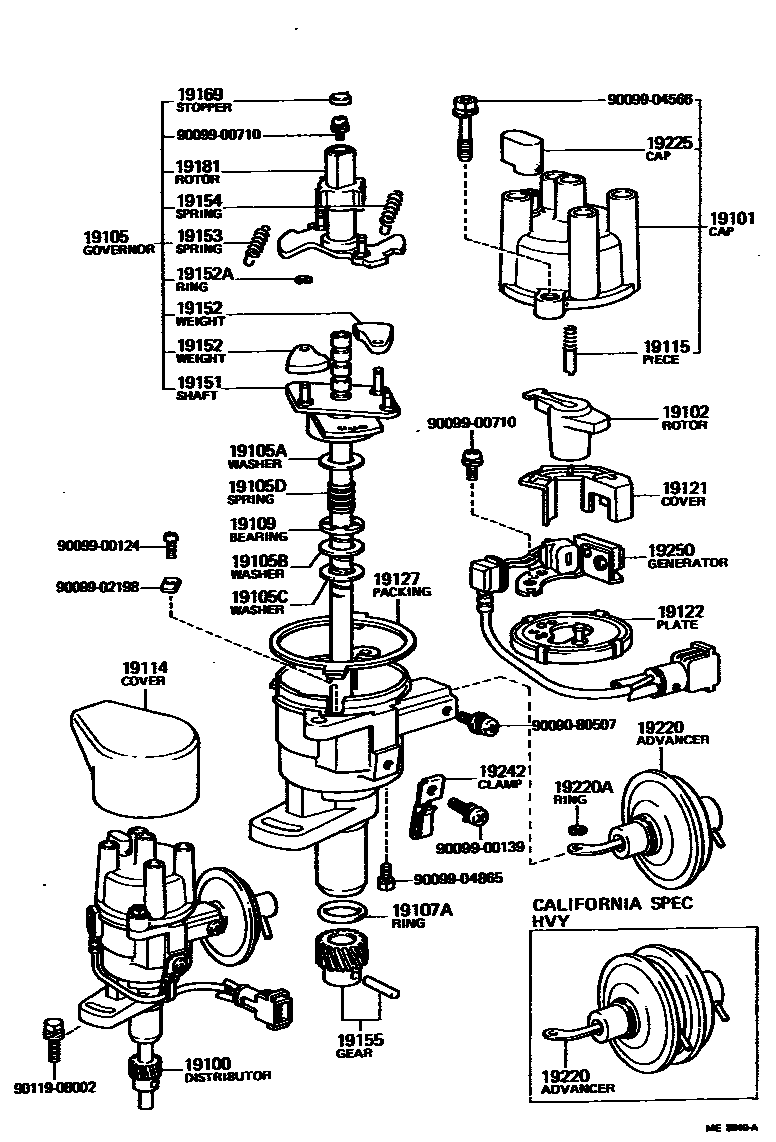

Toyota PICKUP — DISTRIBUTOR
19100DISTRIBUTOR ASSY
CALIFORNIA SPEC
19101CAP SUB-ASSY, DISTRIBUTOR
19102ROTOR SUB-ASSY, DISTRIBUTOR
19105GOVERNOR SUB-ASSY
CALIFORNIA SPEC
19105AWASHER(FOR GOVERNOR SHAFT THRUST)
19105BWASHER, NO.2(FOR GOVERNOR SHAFT THRUST)
19105CWASHER, NO.3(FOR GOVERNOR SHAFT THRUST)
19105DSPRING, NO.1(FOR GOVERNOR SHAFT THRUST)
19107ARING, O, DISTRIBUTOR HOUSING
19109BEARING, THRUST
19114COVER, WATER PROOF(FOR DISTRIBUTOR)
COLD SPEC
COLD SPEC
COLD SPEC
COLD SPEC
19115PIECE, DISTRIBUTOR CAP, CENTER
19121COVER, DUST PROOF
19122PLATE, STATIONARY, DISTRIBUTOR
19127PACKING, DUST PROOF
19151SHAFT, GOVERNOR
19152WEIGHT, GOVERNOR
19152ARING, SNAP(FOR GOVERNOR WEIGHT)
19153SPRING, GOVERNOR, A
19154SPRING, GOVERNOR, B
19155GEAR, SPIRAL, DISTRIBUTOR
19169STOPPER, CAM GREASE
19181ROTOR, DISTRIBUTOR, SIGNAL
CALIFORNIA SPEC
19220ADVANCER ASSY, VACUUM, DISTRIBUTOR
CALIFORNIA SPEC
19220ARING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
19225CAP, RUBBER
19242CLAMP, CORD
19250GENERATOR ASSY, SIGNAL
9009080507
main90090-80507
9009900124
main90099-00124
9009900139
main90099-00139
9009900710
main90099-00710
9009902198
main90099-02198
9009904566
main90099-04566
9009904865
main90099-04865
9011908002
main90119-08002
36 parts on this diagram · 2 diagrams in section
DISTRIBUTOR for Toyota PICKUP
This section contains 39 genuine Toyota parts for the DISTRIBUTOR system of the Toyota PICKUP. Key components include: DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, GOVERNOR SUB-ASSY, WASHER(FOR GOVERNOR SHAFT THRUST).
