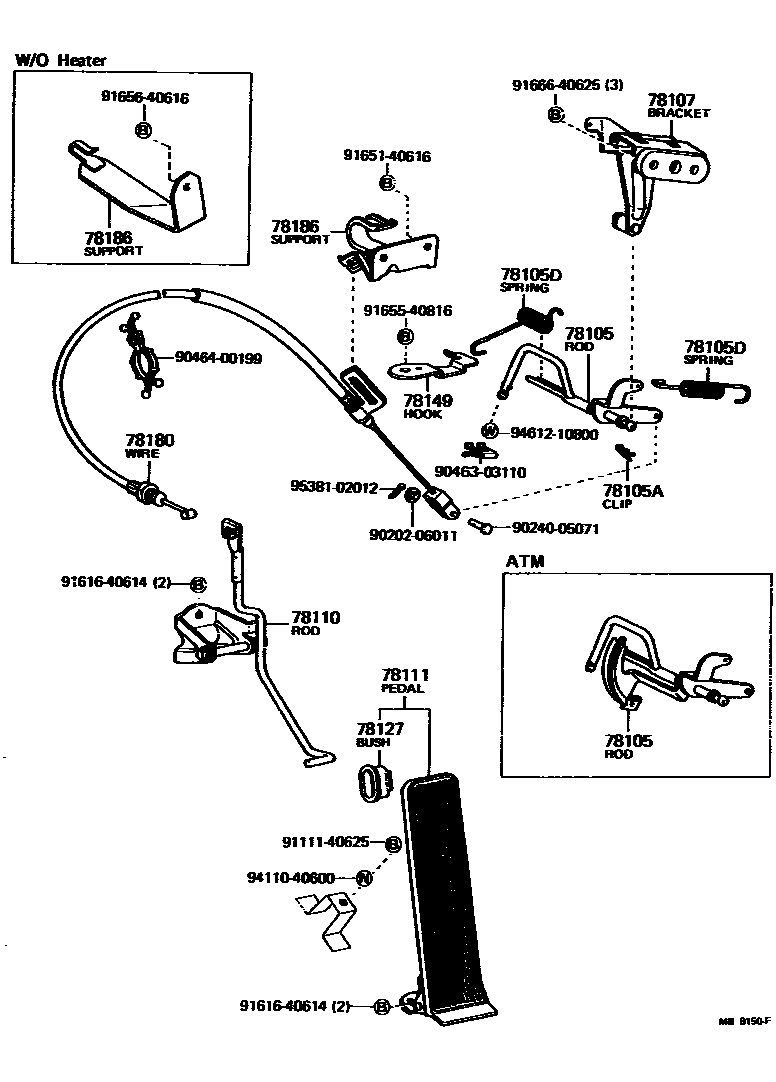

Toyota PICKUP — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78105ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3

main78105-89114iRN32,42..MTM197808-197908

main78105-89115iRN32,42..3FC197808-197908

main78105-89116iRN32,34,42,44..MTM197908-198307

main78105-89117iRN32,42..3FC197908-198008

main78105-89118iRN34,44..ATM198008-198307

main78160-95111iRN37197901-197906

main78160-95113iRN37,38,47,48197906-198307

78105ACLIP (FOR ACCELERATOR TORQUE ROD)

main90468-16012iRN32,34,42,44197808-198307

78105DSPRING (FOR ACCELERATOR TORQUE ROD)

main90506-09020iRN32,42197808-197908

TENSION,WD=0.9

sub90506-09022

main90507-10002iRN37,38,47,48197901-198307

main90508-14032iRN32,42..MTM197908-198008

main90508-14407iRN32,42197808-197908

TORSION,WD=1.4

main90508-16040iRN34,44..MTM198008-198307

78107BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD

main78170-89103iRN32,42197808-197908

main78170-89105iRN32,42197908-198008

main78170-89106iRN34,44..ATM198008-198108

main78170-89107iRN34,44..MTM198008-198108

main78170-89108iRN34,44..5F..SR5198108-198307

W/AUTO-DRIVE

main78170-89109iRN34,44..MTM198108-198307

main78170-89110iRN34,44..4FC198108-198307

78110ROD ASSY, ACCELERATOR PEDAL

main78120-89103iRN32,42197808-198008

main78120-89108iRN34,44198008-198307

main78120-89110iLN40198101-198307

main78120-95115iRN37197901-198008

main78120-95125iRN38,48198008-198307

78111PEDAL, ACCELERATOR

main78010-89102iLN40,RN32,34,42,44197808-198111

main78010-89104iLN40,RN34,44198111-198307

main78010-95110iRN37,38,47,48197901-198111

main78010-95112iRN38,48198111-198307

78127BUSH, ACCELERATOR PEDAL, NO.2

main78127-20010iLN40,RN3#,4#197808-198111

78149HOOK, ACCELERATOR TORQUE ROD SPRING

main78149-20060iRN32,34,42,44197808-198307

78180WIRE ASSY, ACCELERATOR

main78180-89119iRN32,42197808-197908

main78180-89124iRN32,34,42,44197908-198108

main78180-89125iRN34,44198108-198307

main78180-89126iLN40198101-198307

main78180-95112iRN37197901-198003

main78180-95117iRN37,38,47,48198003-198307

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78018-89101iRN32,42197808-197908

W/HEATER

main78186-89105iRN32,34,42,44..USA197808-198307

W/O HEATER

main78186-89106iLN40198101-198307

9020206011

main90202-06011

9024005071

main90240-05071

9046303110

main90463-03110

9046400199

main90464-00199

9111140625

main91111-40625

9161640614

main91616-40614

9165140616

main91651-40616

9165540816

main91655-40816

9165640616

main91656-40616

9166640625

main91666-40625

9411040600

main94110-40600

9461210800

main94612-10800

9538102012

main95381-02012

23 parts on this diagram · 4 diagrams in section
