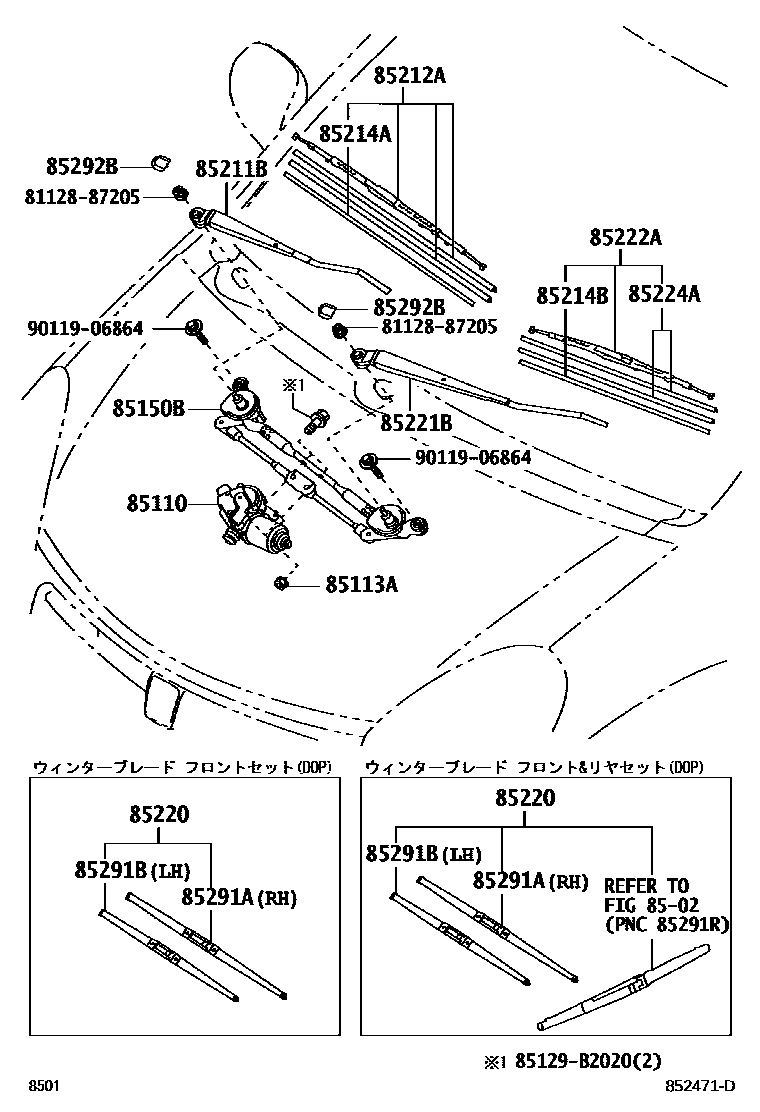

Toyota PASSO — WINDSHIELD WIPER

8502REAR WIPER

→ Go to FIG 85-02

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-B2370supersedes 85110-B1120i201404

85113ANUT, FR WIPER

main85113-B2010×2i201404-201604

85150BLINK ASSY, WIPER

main85150-B1010i201206-201404

85211BARM, FRONT WIPER, RH

main85211-B1080i201206-201404

85212ABLADE, FR WIPER, RH

main85212-12361i201002-201206

85214ARUBBER, WIPER, RH

main85214-48031i201002-201206

85214BRUBBER, WIPER, LH

main85214-12301i201002-201206

85220BLADE ASSY, WINDSHIELD WIPER

main85201-B1070i201404-201604

main85201-B1080i201206-201404

85221BARM, FRONT WIPER, LH

main85221-B1080i201404

85222ABLADE, FR WIPER, LH

main85222-52121i201002-201206

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-10190×2i201002-201206

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-33060i201002-201206

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-44080i201206-201404

85292BCAP, FRONT WIPER ARM HEAD

main85292-12020×2i201002-201206

8112887205NUT, HEADLAMP

main81128-87205

85129B2020COIL, WINDSHIELD WIPER MOTOR FIELD

main85129-B2020

9011906864

main90119-06864

18 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota PASSO

This section contains 18 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota PASSO. Key components include: REAR WIPER, MOTOR ASSY, WINDSHIELD WIPER, NUT, FR WIPER, LINK ASSY, WIPER, ARM, FRONT WIPER, RH.
