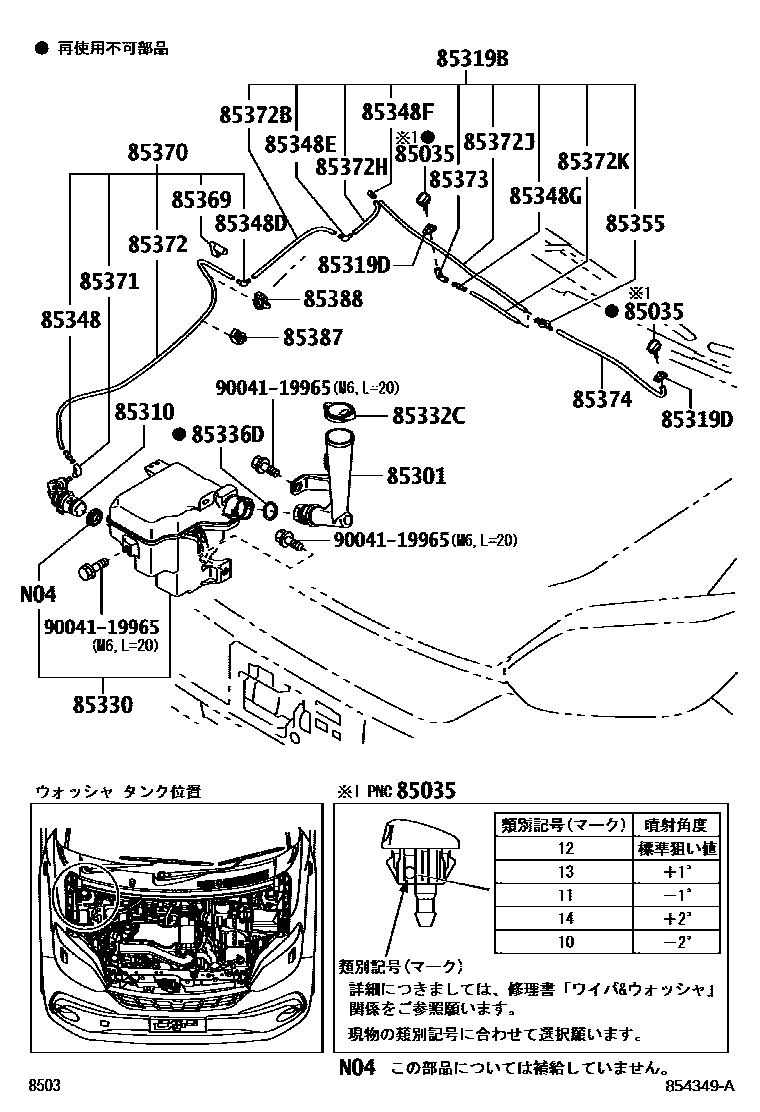

Toyota PASSO — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319BHOSE, WINDOW WASHER
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
85332CCAP, FRONT WASHER TANK
85336DPACKING, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85369CLAMP
85370HOSE ASSY, WINDSHIELD WASHER
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85374HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85388CLAMP NO.2 (FOR WINDSEIELD WASHER)
9004119965
main90041-19965
27 parts on this diagram · 1 diagram in section
