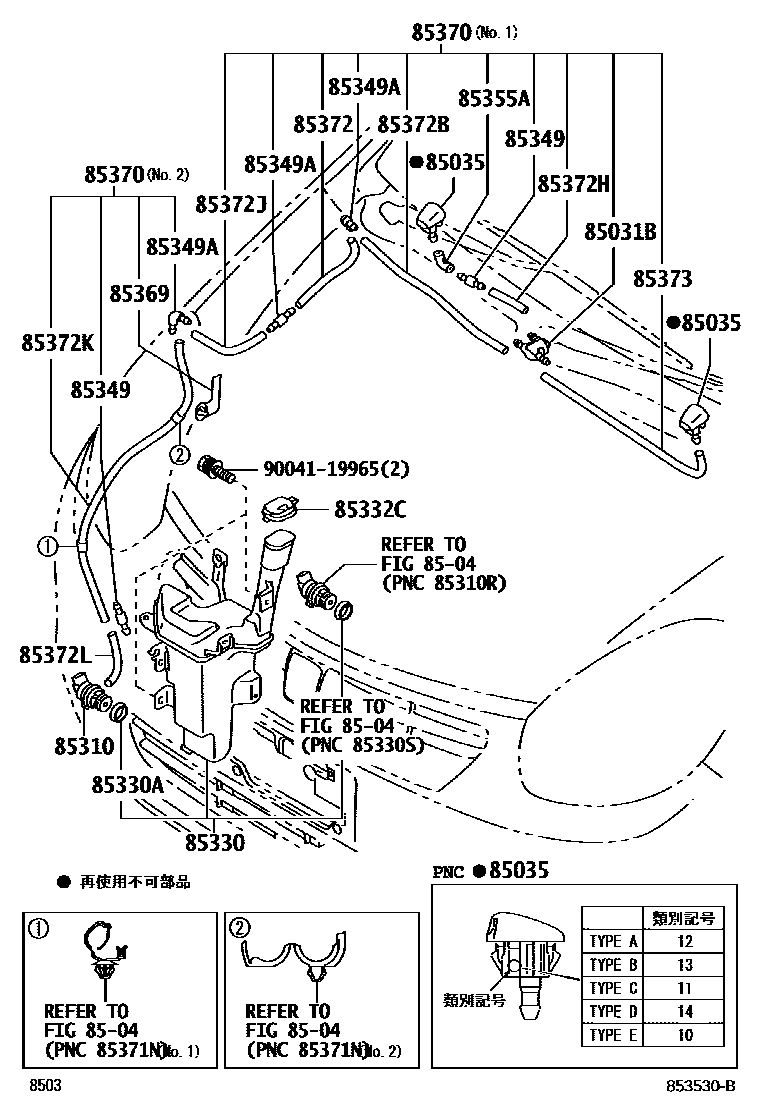

Toyota PASSO — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85376-B1010iKGC3#,NGC30201404

85035NOZZLE SUB-ASSY, WASHER

main85381-B1090iKGC3#,NGC30201404

main85381-B1140iKGC3#,NGC30201002-201206

main85381-B1150iKGC3#,NGC30201206-201404

main85381-B1160iKGC3#,NGC30201206-201404

main85381-B1170iKGC3#,NGC30201206-201404

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-97502iKGC3#,NGC30201404

85330JAR ASSY, WINDSHIELD WASHER

main85315-B1070supersedes 85315-B1060iKGC3#,NGC30..G,HANA201206-201404

85330ABUSH, WINDSHIELD WASHER JAR

main85373-97202iKGC3#,NGC30201206-201404

85332CCAP, FRONT WASHER TANK

main85332-97502iKGC3#,NGC30201404

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-87201×2iKGC3#,NGC30201002-201206

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-87602×3iKGC3#,NGC30201002-201206

85355AJOINT, WINDSHIELD WASHER ELBOW

main85355-87701iKGC3#,NGC30201206-201404

85369CLAMP

main85371-B1030iKGC3#,NGC30201002-201206

85370HOSE ASSY, WINDSHIELD WASHER

main85370-B1220iKGC3#,NGC30201002-201206

main85370-B1310iKGC3#,NGC30201002-201206

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85376-87202iKGC3#,NGC30201002-201206

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85376-87202iKGC3#,NGC30201206-201404

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main85376-87202iKGC3#,NGC30201002-201206

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main85375-87502iKGC3#,NGC30201002-201206

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main85376-87202iKGC3#,NGC30201002-201206

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main85374-B1430iKGC3#,NGC30201404

main85375-87702iKGC3#,NGC30201002-201206

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85343-97401iKGC3#,NGC30201404

9004119965

main90041-19965

20 parts on this diagram · 1 diagram in section
