Toyota PASSO — WINDSHIELD WASHER

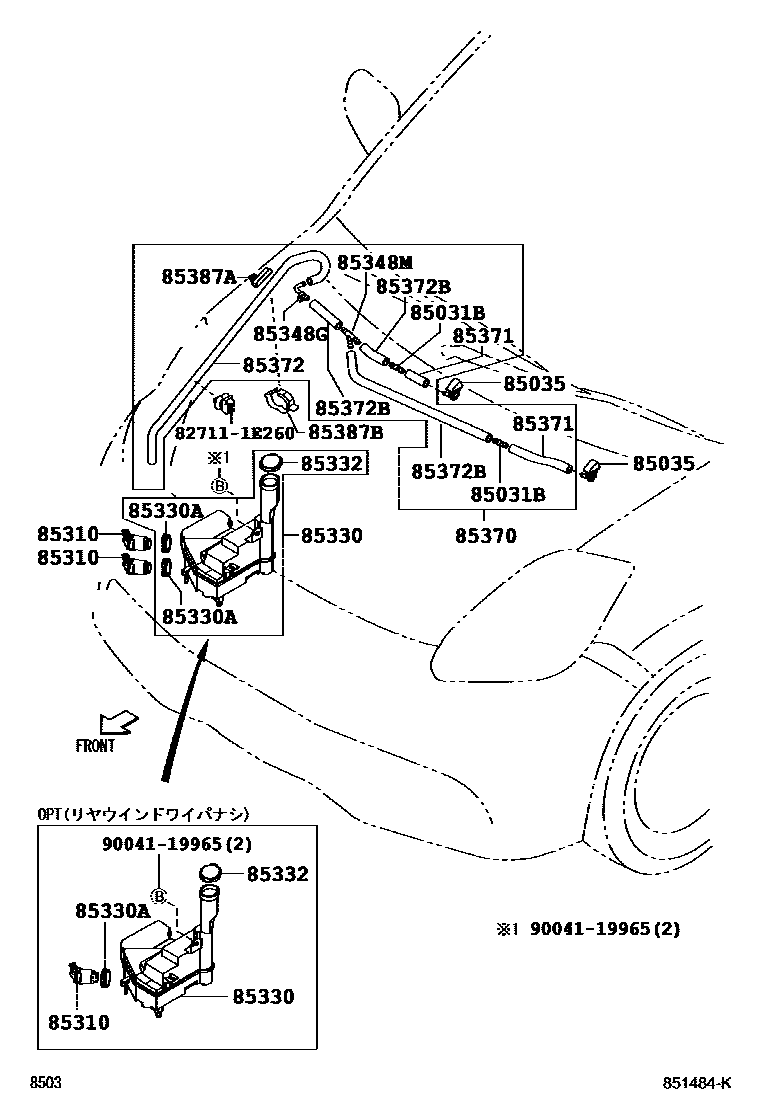

Parts diagram
85031BVALVE SUB-ASSY, WASHER
main85031-87702×2i200405-200612
85035NOZZLE SUB-ASSY, WASHER
main85381-B1010×2i200405-200612
sub85381-B1050
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-97202×2i200405-200612
85330JAR ASSY, WINDSHIELD WASHER
mainC247097201i200405-200612
mainC247097202i200405-200612
85330ABUSH, WINDSHIELD WASHER JAR
main85373-97202×2i200405-200612
85332CAP, WINDSHIELD WASHER JAR
main85332-97202i200405-200612
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85355-97203i200405-200612
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
main85348-87201i200405-200612
85370HOSE ASSY, WINDSHIELD WASHER
main85370-B1010i200405-200612
sub85370-B1320
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85343-97401×2i200405-200612
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main85343-97402i200405-200612
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main85376-87202×3i200405-200612
85387ACLAMP, WASHER, NO.2
main85371-97208i200405-200612
85387BCLAMP, WASHER, NO.3
main82711-1E370i200405-200612
827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E260
9004119965
main90041-19965

16 parts on this diagram · 1 diagram in section
