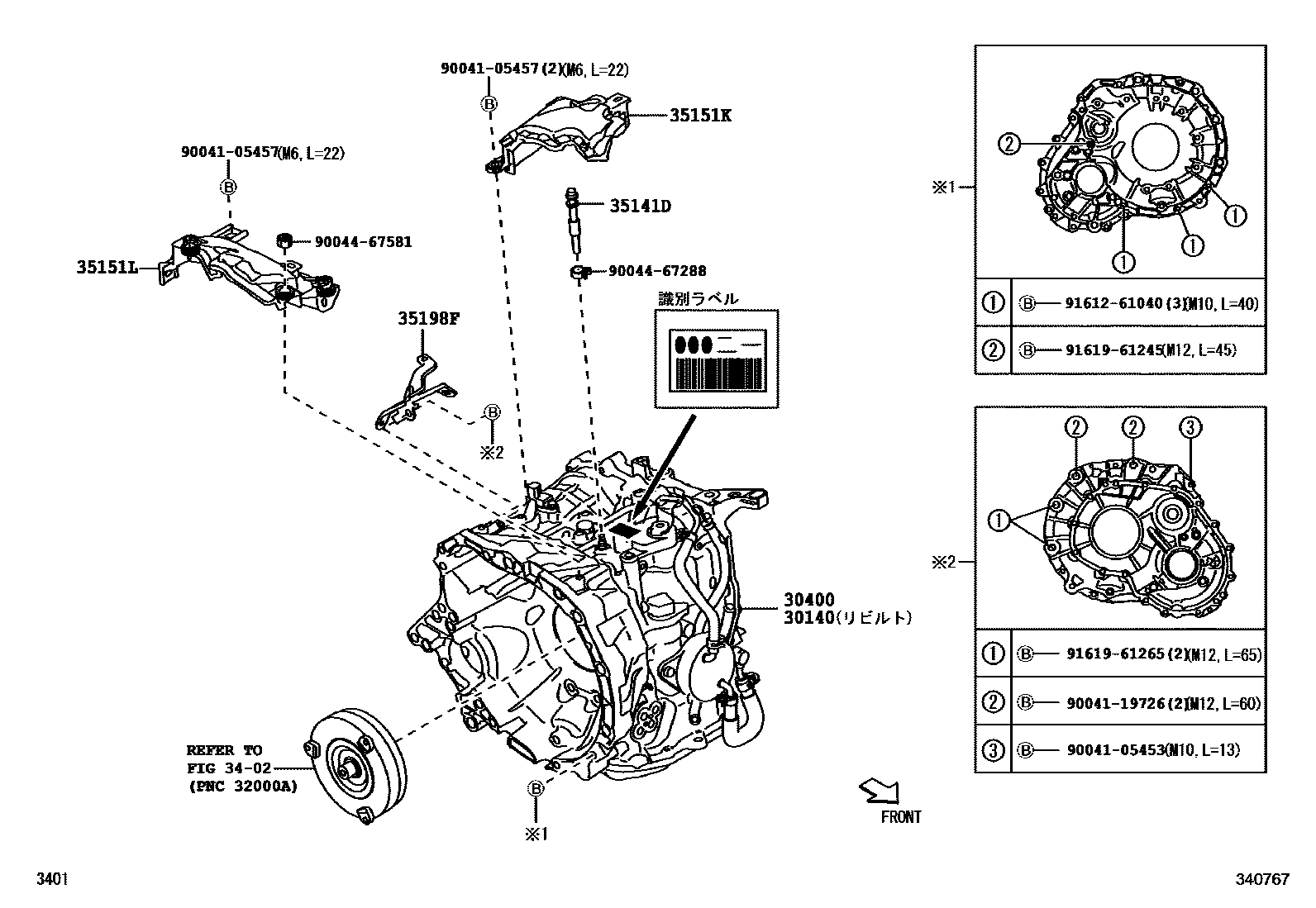

Toyota PASSO — TRANSAXLE ASSY(CVT)
30140TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER)
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)
35141DHOSE(FOR BREATHER PLUG)
35151KCOVER, AUTOMATIC TRANSMISSION CASE
35151LCOVER, AUTOMATIC TRANSMISSION CASE
35198FBRACKET, WIRE HARNESS CLAMP
9004105453
main90041-05453
9004105457
main90041-05457
9004119726
main90041-19726
9004467288
main90044-67288
9004467581
main90044-67581
9161261040
main91612-61040
9161961245
main91619-61245
9161961265
main91619-61265
15 parts on this diagram · 5 diagrams in section
TRANSAXLE ASSY(CVT) for Toyota PASSO
This section contains 76 genuine Toyota parts for the TRANSAXLE ASSY(CVT) system of the Toyota PASSO. Key components include: HANGER, TRANSAXLE, TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER), TRANSAXLE ASSY, CONTINUOUSLY VARIABLE, SEAL, TYPE T OIL, NO.1(FOR CVT), SEAL, TYPE T OIL, NO.2(FOR CVT).
