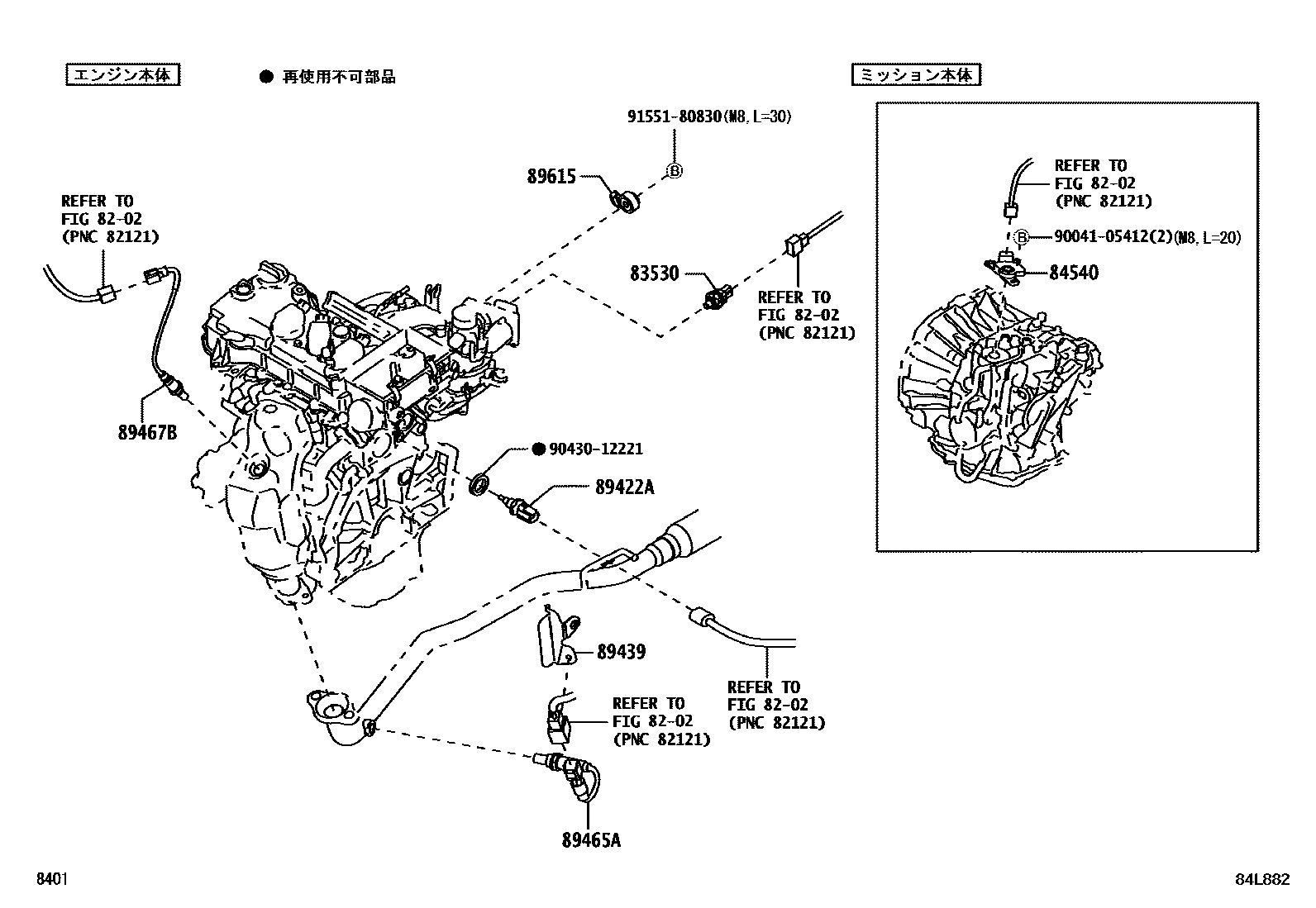

8202

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iM700,710201604-202309

main83530-60020iM700,710201604-202309

84540SWITCH ASSY, NEUTRAL START

main84540-B2050iM700,710201604-202309

89422ASENSOR, WATER TEMPERATURE

main89422-33030iM700,710201604-202309

89439BRACKET, SENSOR

main89439-B1100iM700,710201604-202309

89465ASENSOR, OXYGEN NO.2

main89465-B1120iM700,710201604-202309

89467BSENSOR, AIR FUEL RATIO

main89467-B1040iM700,710201604-202309

89615SENSOR, KNOCK CONTROL

main89615-20090iM700,710201604-202309

9004105412

main90041-05412

9043012221

main90430-12221

9155180830

main91551-80830

11 parts on this diagram · 8 diagrams in section
