Toyota PASSO — SWITCH & RELAY & COMPUTER

0001 1�����&��������� 0002 1�����&��������� 0003 1�������� 0004 1��� 0005 1������������ 0006 1������� 0007 1���&���

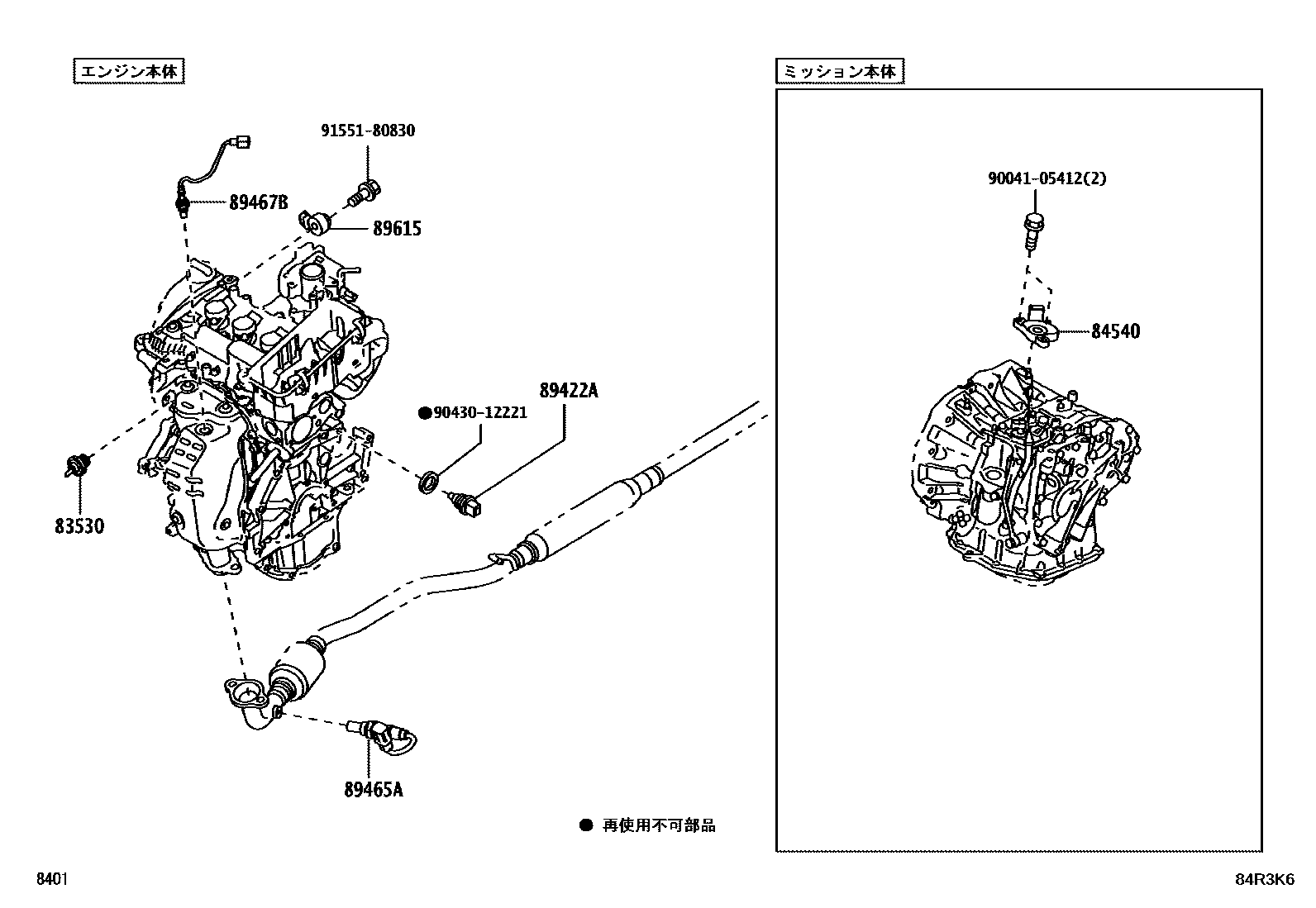

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNGC30201002-201206

main83530-60020iNGC30201002-201206

main83530-B5010iKGC3#201002-201204

main83530-B5011iKGC3#201206-201404

84540SWITCH ASSY, NEUTRAL START

main84540-B1010iNGC30201002-201206

main84540-B2030iKGC3#201002-201010

main84540-B2050iKGC3#201107-201206

main84540-B2060iKGC3#201011-201106

89422ASENSOR, WATER TEMPERATURE

main89422-33030iKGC3#,NGC30201002-201206

89465ASENSOR, OXYGEN NO.2

main89465-B1100iKGC3#201002-201206

main89465-B1110iNGC30201002-201206

main89465-B1120iKGC3#201404

89467BSENSOR, AIR FUEL RATIO

main89467-52070iNGC30201002-201102

main89467-52090iNGC30201102-201206

main89467-B1010iKGC3#201002-201206

main89467-B1020iKGC3#201404

main89467-B1030iKGC3#201308-201404

89615SENSOR, KNOCK CONTROL

main89615-20090iKGC3#,NGC30201404

9004105412

main90041-05412

9043012221

main90430-12221

9155180830

main91551-80830

9 parts on this diagram · 7 diagrams in section
