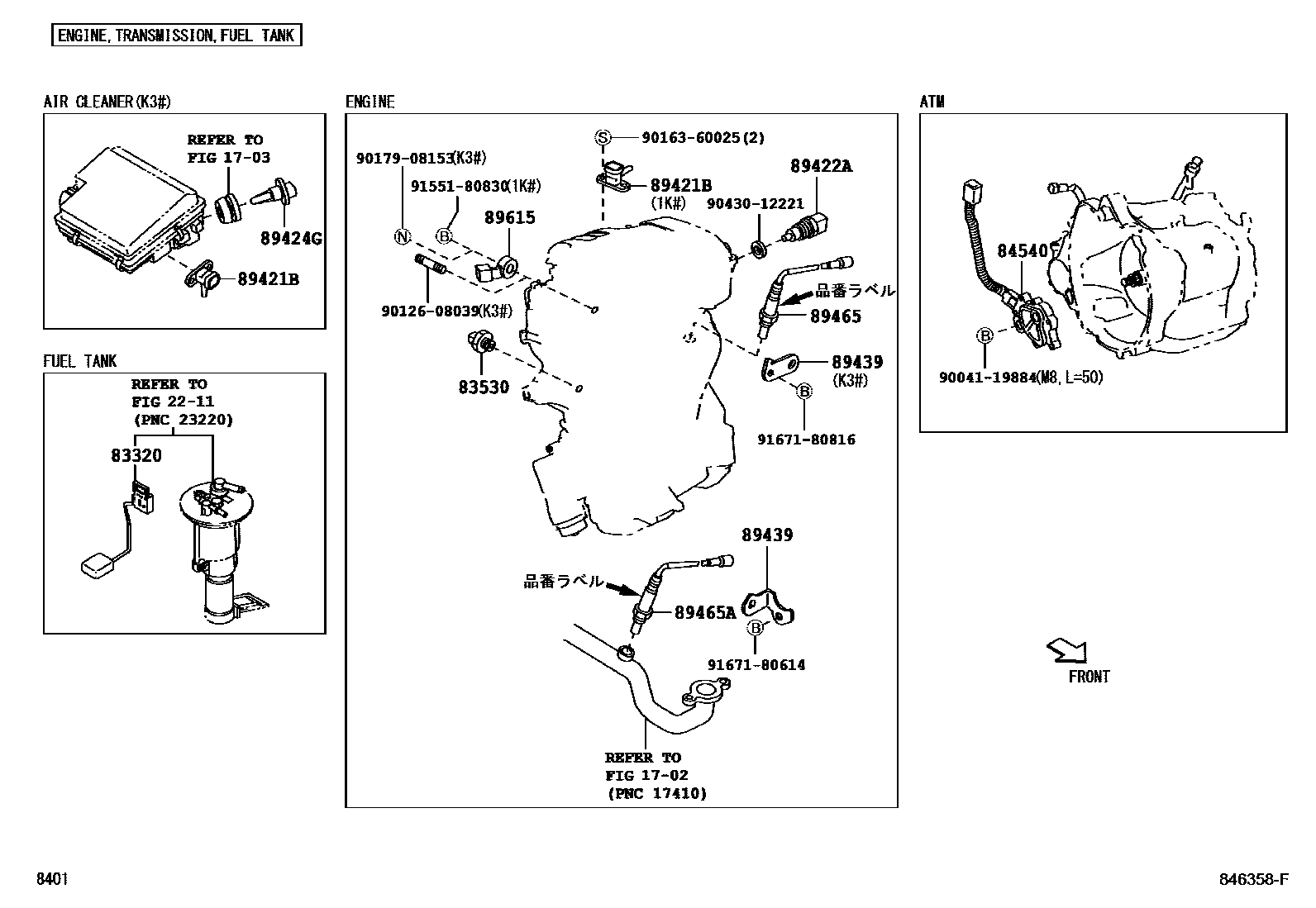

Toyota PASSO — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1

1702

1703

2211

83320GAGE ASSY, FUEL SENDER

main83301-B1011iKGC1#,QNC10200405-200411

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-97201iKGC1#200405-200612

sub83530-97202

main83530-97401iQNC10200612-201002

84540SWITCH ASSY, NEUTRAL START

main84540-97203iQNC10..RACY200612-201002

sub84540-B1020

89421BSENSOR, VACUUM

main89421-52010iKGC1#200405-200612

main89421-B1010iQNC10200612-201002

89422ASENSOR, WATER TEMPERATURE

main89422-33030iKGC1#,QNC10200405-200612

89424GSENSOR, INLET AIR TEMPERATURE

main89424-87703iQNC10200612-201002

89439BRACKET, SENSOR

main89439-B1010iKGC1#,QNC10200405-200612

main89439-B1020iQNC10200405-200606

main89439-B1050iQNC10200607-200612

89465SENSOR, OXYGEN

main89465-B1030iKGC1#200405-200506

main89465-B1040iQNC10200612-201002

89465ASENSOR, OXYGEN NO.2

main89465-B1010iKGC1#,QNC10200405-200612

89615SENSOR, KNOCK CONTROL

main89615-20090iKGC1#,QNC10200612-201002

9004119884

main90041-19884

9012608039

main90126-08039

9016360025

main90163-60025

9017908153

main90179-08153

9043012221

main90430-12221

9155180830

main91551-80830

9167180614

main91671-80614

9167180816

main91671-80816

21 parts on this diagram · 3 diagrams in section
