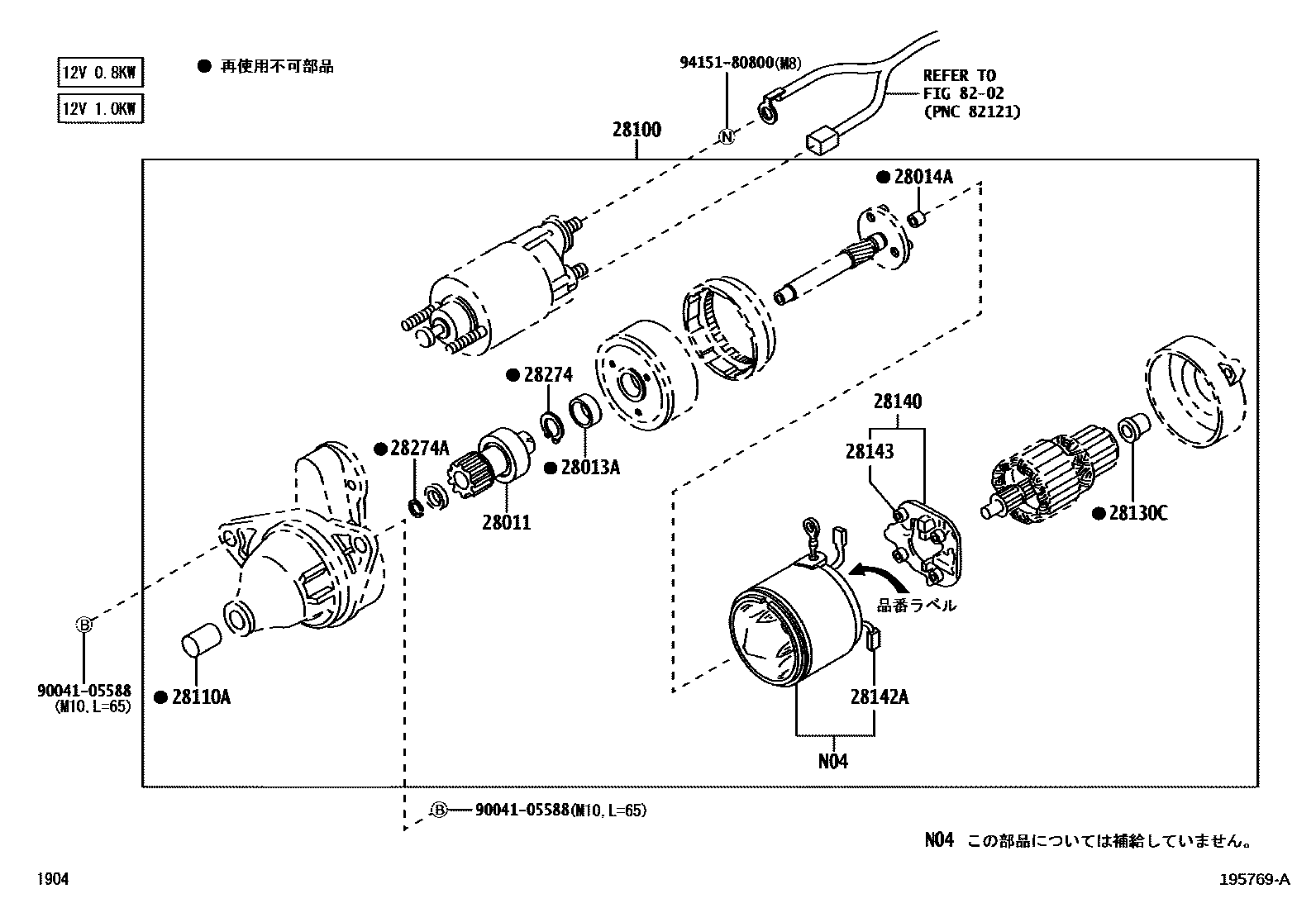

Toyota PASSO — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-B2050supersedes 28011-B2050i1KRFE..M700,710201604-201611

28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2

main90099-10181i1KRFE..M700,710201604-202309

28014ABUSH OR BEARING, PLANET CARRIER SHAFT

main90099-10180i1KRFE..M700,710201604-202309

28100STARTER ASSY

main28100-B1110supersedes 28100-B1070i1KRFE..M700,710201604-201610

main28100-B1111supersedes 28100-B1071i1KRFE..M700,710201611-202008

main28100-B1150supersedes 28100-B1140i1KRFE..M700,710202008-202309

28110ABEARING(FOR STARTER HOUSING)

main28277-87201i1KRFE..M700,710201604-202309

28130CBEARING, STARTER FLANGE

main90099-10183i1KRFE..M700,710201604-202309

28140HOLDER ASSY, STARTER BRUSH

main28140-B2130i1KRFE..M700,710201604-202309

28142ASTARTER KIT

main28142-97501×2i1KRFE..M700,710201604-202309

28143SPRING, STARTER BRUSH

main28143-87202×4i1KRFE..M700,710201604-202309

28274SNAP RING, STARTER, NO.1

main90096-90030i1KRFE..M700,710201604-202309

28274ASNAP RING, STARTER, NO.2

main28274-87503i1KRFE..M700,710201604-202309

8202

9004105588

main90041-05588

9415180800

main94151-80800

14 parts on this diagram · 1 diagram in section
