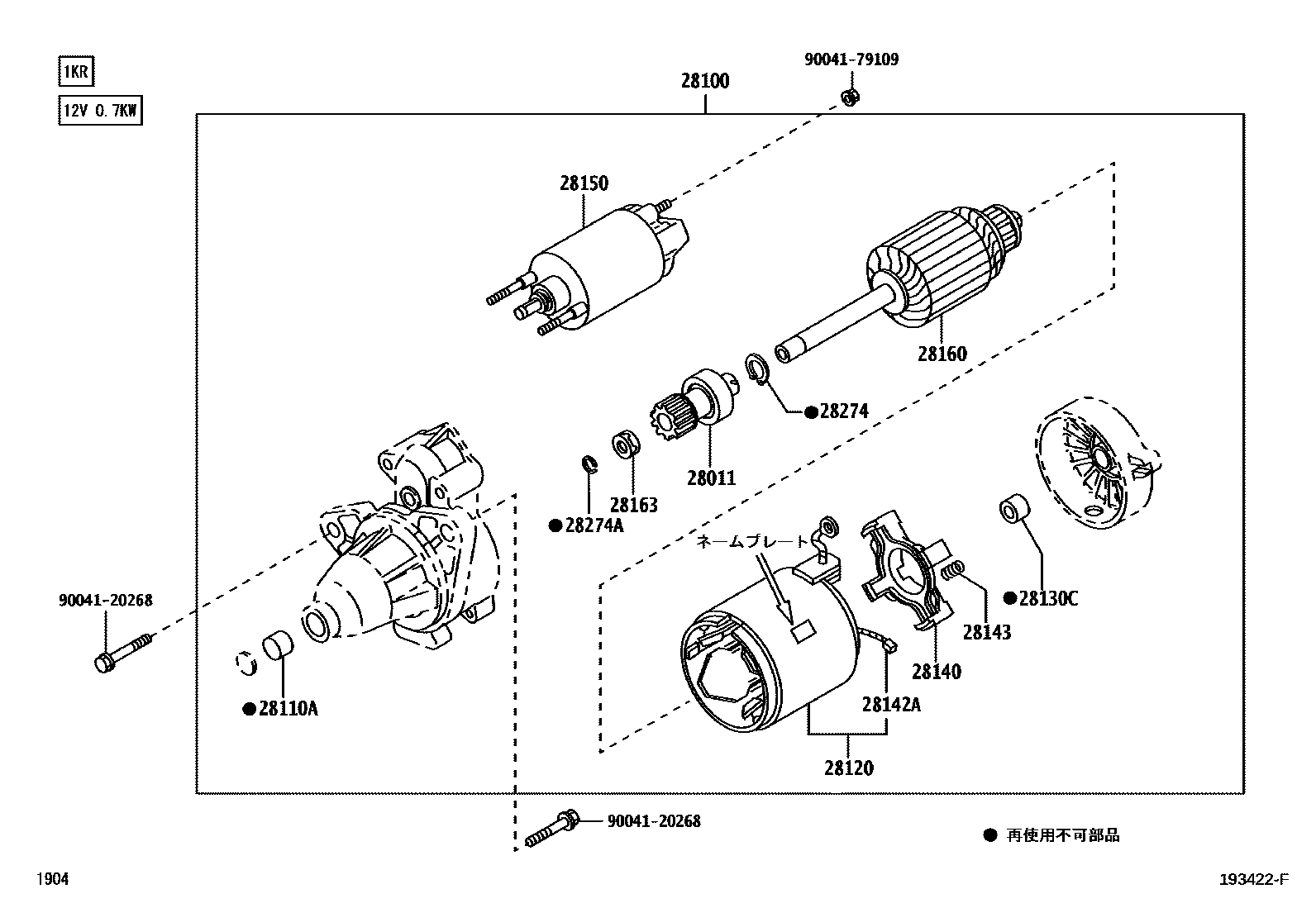

Toyota PASSO — STARTER

0001 112V 0.7KW 0002 112V 0.8KW,1.0KW 0003 1

28011CLUTCH SUB-ASSY, STARTER

main28011-B1030i1NRFE..NGC30201002-201206

28100STARTER ASSY

main28100-B1040supersedes 28100-B1030i1NRFE..NGC30201206-201404

main28100-B1050supersedes 28100-B1080i1KRFE..KGC30201206-201404

main28100-B1100supersedes 28100-B1090i1KRFE..KGC35201404

main28100-B2120supersedes 28100-B2040i1KRFE..KGC3#201002-201206

28110ABEARING(FOR STARTER HOUSING)

main28277-87201i1KRFE..KGC3#201002-201206

main9004C-03001supersedes 9004C-03001i1NRFE..NGC30201002-201206

28120YOKE ASSY, STARTER

main28120-87401i1KRFE,1NRFE..KGC35,NGC30201404

main28120-87216supersedes 28120-87401i1NRFE..NGC30201002-201206

main28120-97502supersedes 28120-87507i1KRFE..KGC35201404

main28120-B1050supersedes 28120-B1010i1KRFE..KGC30201206-201404

28130CBEARING, STARTER FLANGE

main90099-10183supersedes 90099-10183i1KRFE..KGC3#201002-201206

28140HOLDER ASSY, STARTER BRUSH

main28140-87202supersedes 28149-87501i1KRFE..KGC3#201002-201206

28142ASTARTER KIT

main28142-87204×2supersedes 28142-87504i1KRFE,1NRFE..KGC3#,NGC30201206-201404

28143SPRING, STARTER BRUSH

main28143-87202×4supersedes 28143-87202i1KRFE..KGC3#201002-201206

28150SWITCH ASSY, MAGNET STARTER

main28150-87536i1NRFE..NGC30201404

main28150-B1050supersedes 28226-B1020i1KRFE..KGC35201404

28160ARMATURE ASSY, STARTER

main28160-87205i1KRFE..KGC3#201002-201105

main28160-87207i1NRFE..NGC30201002-201206

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-87202supersedes 28163-87202i1KRFE..KGC3#201002-201206

28274SNAP RING, STARTER, NO.1

main90096-90030supersedes 90096-90030i1NRFE..NGC30201002-201206

28274ASNAP RING, STARTER, NO.2

main28274-87503supersedes 28274-87503i1NRFE..NGC30201002-201206

9004120268

main90041-20268

9004179109

main90041-79109

15 parts on this diagram · 3 diagrams in section
