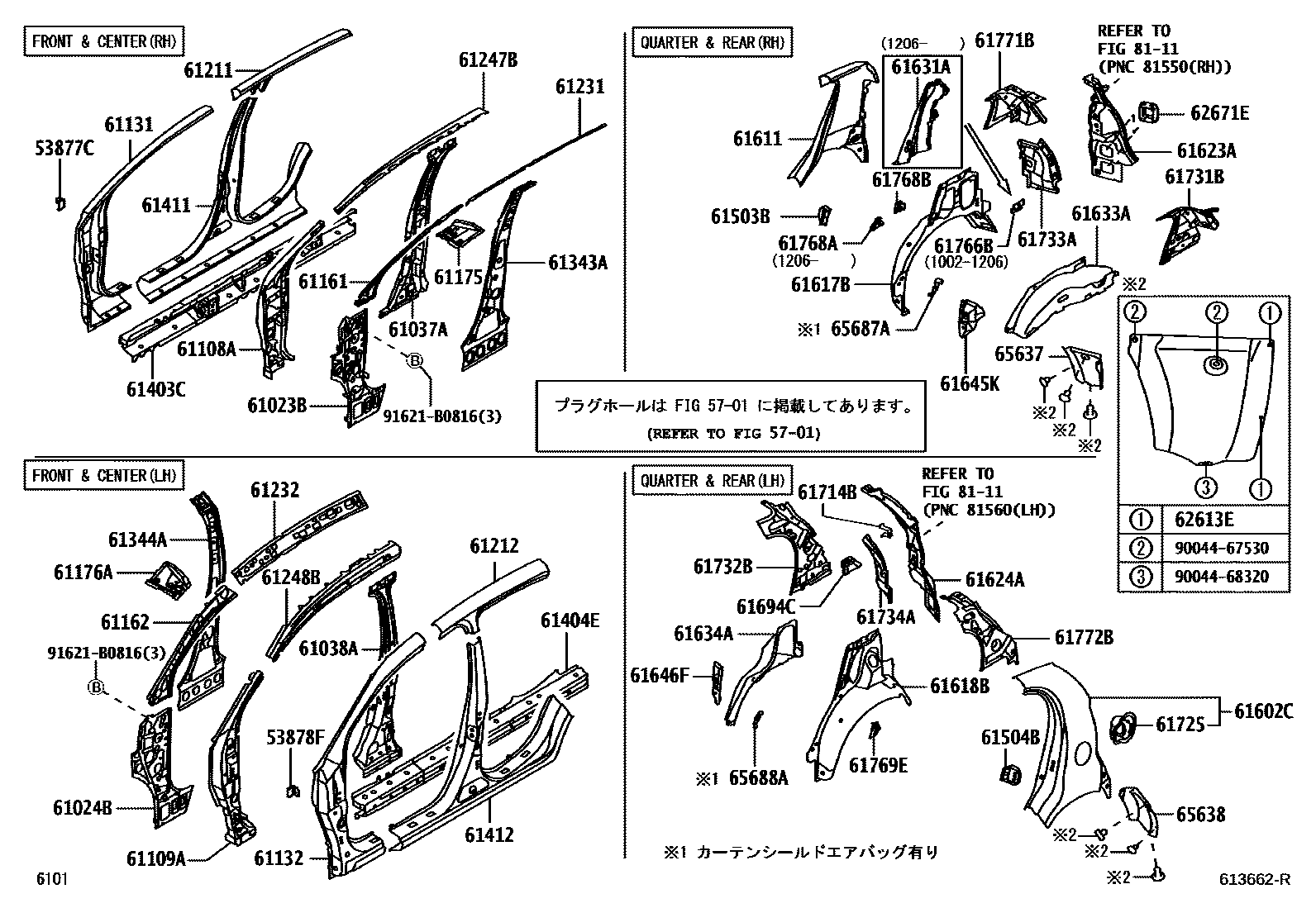

Toyota PASSO — SIDE MEMBER
53877CBRACKET, FRONT FENDER LINER, RH
53878FBRACKET, FRONT FENDER LINER, LH
5701HOLE PLUG
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH
61176AREINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH
61248BREINFORCEMENT, ROOF SIDE RAIL, INNER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61602CPANEL SUB-ASSY, QUARTER, LH
61611PANEL, QUARTER, RH
61617BPANEL, QUARTER INNER, LOWER RH
61618BPANEL, QUARTER, INNER LOWER LH
61623AEXTENSION, QUARTER PANEL, OUTER RH
61624AEXTENSION, QUARTER PANEL, OUTER LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61645KGUSSET, QUARTER WHEEL HOUSE INNER, RH
61646FGUSSET, QUARTER WHEEL HOUSE INNER, LH
61694CRETAINER, REAR SEATBACK SET, LH
61714BREINFORCE, ROOF SIDE, OUTER LH
61725BOX, FUEL INLET
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61733APANEL, ROOF SIDE, INNER FRONT RH
61734APANEL, ROOF SIDE, INNER FRONT LH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61768AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH
61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61769EREINFORCEMENT, BELT ANCHOR TO QUARTER, INNER LOWER LH
61771BFRAME, BACK DOOR OPENING UPPER CORNER, RH
61772BFRAME, BACK DOOR OPENING UPPER CORNER, LH
62613ECLIP (FOR QUARTER WHEEL HOUSE COVER)
62671ECOVER, LOWER BACK PANEL
65637LINER, REAR WHEEL HOUSE, RH
65638LINER, REAR WHEEL HOUSE, LH
65687ABRACKET, WHEEL HOUSE BRACE, RH
65688ABRACKET, WHEEL HOUSE BRACE, LH
8111REAR COMBINATION LAMP
9004467530
main90044-67530
9004468320
main90044-68320
91621B0816
main91621-B0816
63 parts on this diagram · 2 diagrams in section
SIDE MEMBER for Toyota PASSO
This section contains 63 genuine Toyota parts for the SIDE MEMBER system of the Toyota PASSO. Key components include: BRACKET, FRONT FENDER LINER, RH, BRACKET, FRONT FENDER LINER, LH, HOLE PLUG, PILLAR SUB-ASSY, FRONT BODY, INNER RH, PILLAR SUB-ASSY, FRONT BODY, INNER LH.
