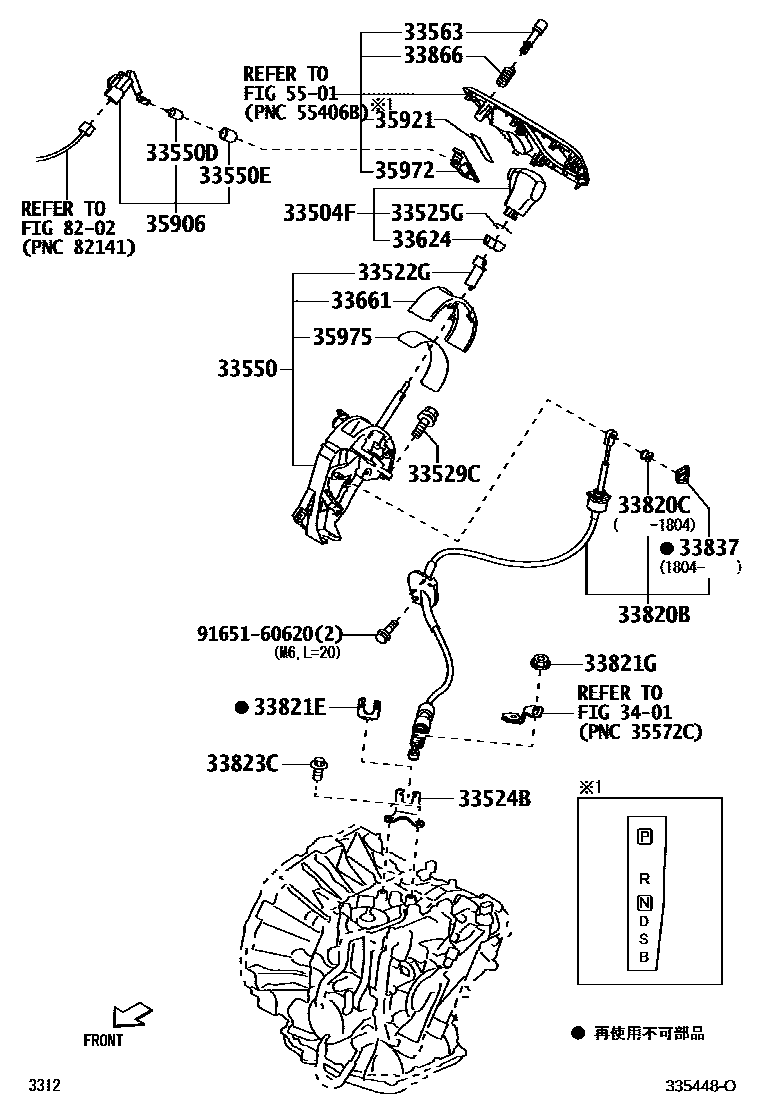

Toyota PASSO — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-B2180-B1supersedes 33504-B2170-B1i201604-201610

main33504-B2180-C1supersedes 33504-B2170-C1i201610-202008

main33504-B2181-C1supersedes 33504-B2171-C1i202009-202309

main33504-B2191-C1supersedes 33504-B2171-C1i201810-202008

main33504-B2192-C1i202009-202104

33522GCOVER, SHIFT LEVER HOUSING DUST

main33522-B2010i201604-202309

33524BBRACKET, CONTROL CABLE

main33524-B1030i201604-202309

33525GRING, SHIFT LEVER

main33525-B2010i201604-202309

33529CBOLT, SHIFT LEVER

main91671-80830×3i201604-202309

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-B2700-C0i201604-201610

BLACK,TRIM1#; BLACK,TRIM4#

main33550-B2700-C1i201610-201706

BLACK,TRIM1#; BLACK,TRIM4#

main33550-B2701-C1i201707-201804

BLACK,TRIM1#; BLACK,TRIM4#

main33550-B2702-C1i201804-201904

BLACK,TRIM1#; BLACK,TRIM4#

main33550-B2703-C1i201905-202309

BLACK,TRIM1#; BLACK,TRIM4#

33550DBULB, POSITION INDICATOR LAMP

main35955-B2040i201604-202309

33550ECAP, POSITION INDICATOR LAMP

main35956-B2060i201604-202309

33563BUTTON, SHIFT LOCK RELEASE

main33563-B2010i201604-202309

33624HOLDER, KNOB COVER

main33551-B2010i201604-201607

main33551-B2011i201608-201711

main33551-B2012i201712-202008

main33551-B2013i202009-202309

33661HOUSING, SHIFT LEVER GUIDE

main33521-B2010i201604-202309

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-B1160i201604-201709

main33820-B1161i201710-201804

main33820-B1162i201804-202309

33820CBUSH (FOR TRANSMISSION CONTROL CABLE)

main33835-B1010i201604-201804

33821ECLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main33567-B1010i201604-202309

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90041-79348i201604-201712

main90179-06274i201801-202309

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90041-05418×2i201604-201804

main90041-05491×2i201805-202309

33837CLIP, TRANSMISSION CONTROL CABLE ADJUST

main33837-B2010i201804-202309

33866SPRING, SHIFT LOCK RELEASE

main33866-B2010i201604-202309

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35906WIRE SUB-ASSY, INDICATOR LAMP

main82285-B2030i201604-202309

35921PLATE, CONTROL POSITION INDICATOR

main35921-B2020i201604-202309

35972COVER, POSITION INDICATOR HOUSING

main55534-B2020i201604-202309

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-B2020i201604-202309

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

8202WIRING & CLAMP

→ Go to FIG 82-02

9165160620

main91651-60620

26 parts on this diagram · 2 diagrams in section

SHIFT LEVER & RETAINER for Toyota PASSO

This section contains 26 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota PASSO. Key components include: KNOB SUB-ASSY, SHIFT LEVER, COVER, SHIFT LEVER HOUSING DUST, BRACKET, CONTROL CABLE, RING, SHIFT LEVER, BOLT, SHIFT LEVER.
