Toyota PASSO — PARTIAL ENGINE ASSEMBLY

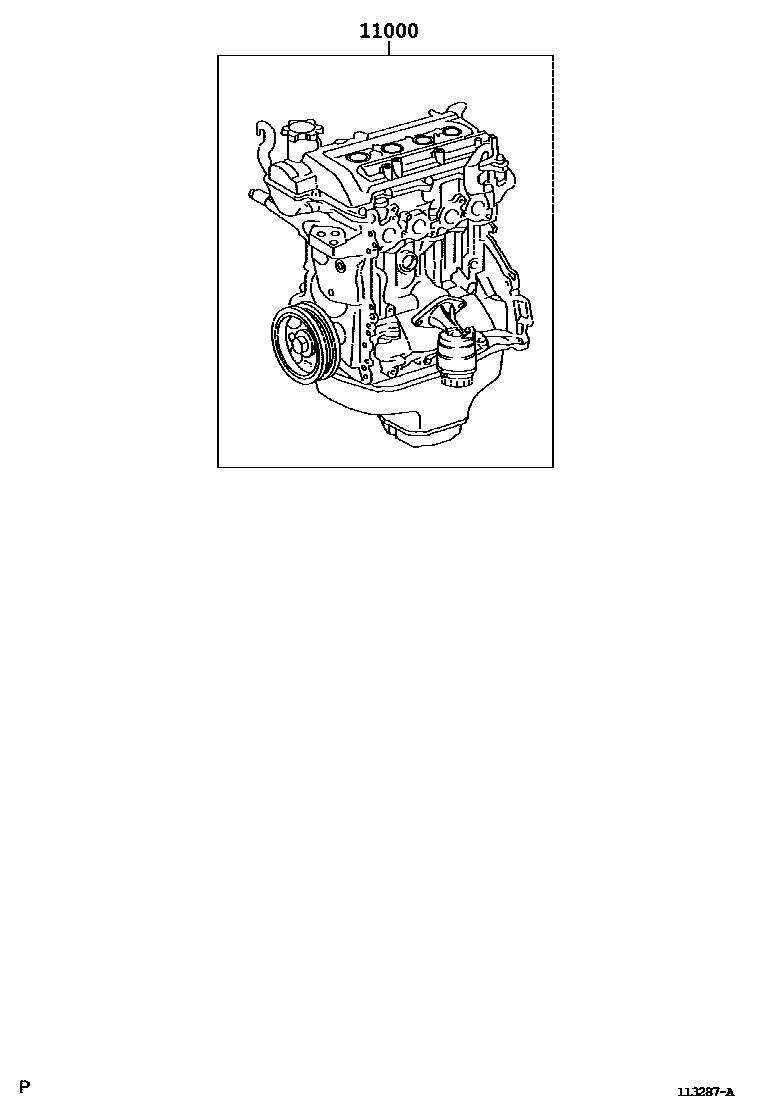

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-B1010i200612-200804
main19000-B1020i200605-200608
sub15677-B1020
sub15677-B1030
main19000-B1740i200409-200410
main19000-B1760i200410-200411
main19000-B1860i200412-200501
main19000-B1A90i200501-200504
main19000-B1B90i200505-200510
main19000-B1E40i200510-200512
main19000-B1E70i200512-200604
main19000-B1F40i200612-200712
main19000-B1G60i200604-200605
main19000-B1N20i200608-200612
sub19000-B1N21
main19000-B1Q31i200712-200807
sub82121-B1024
sub82121-B1182
sub82121-B1213
main19000-B1Q32i200807-201002
sub19000-B1Q34
main19000-B1R01i200804-201002
sub19000-B1R04
sub83530-97201

1 parts on this diagram · 2 diagrams in section
