Toyota PASSO — MOUNTING

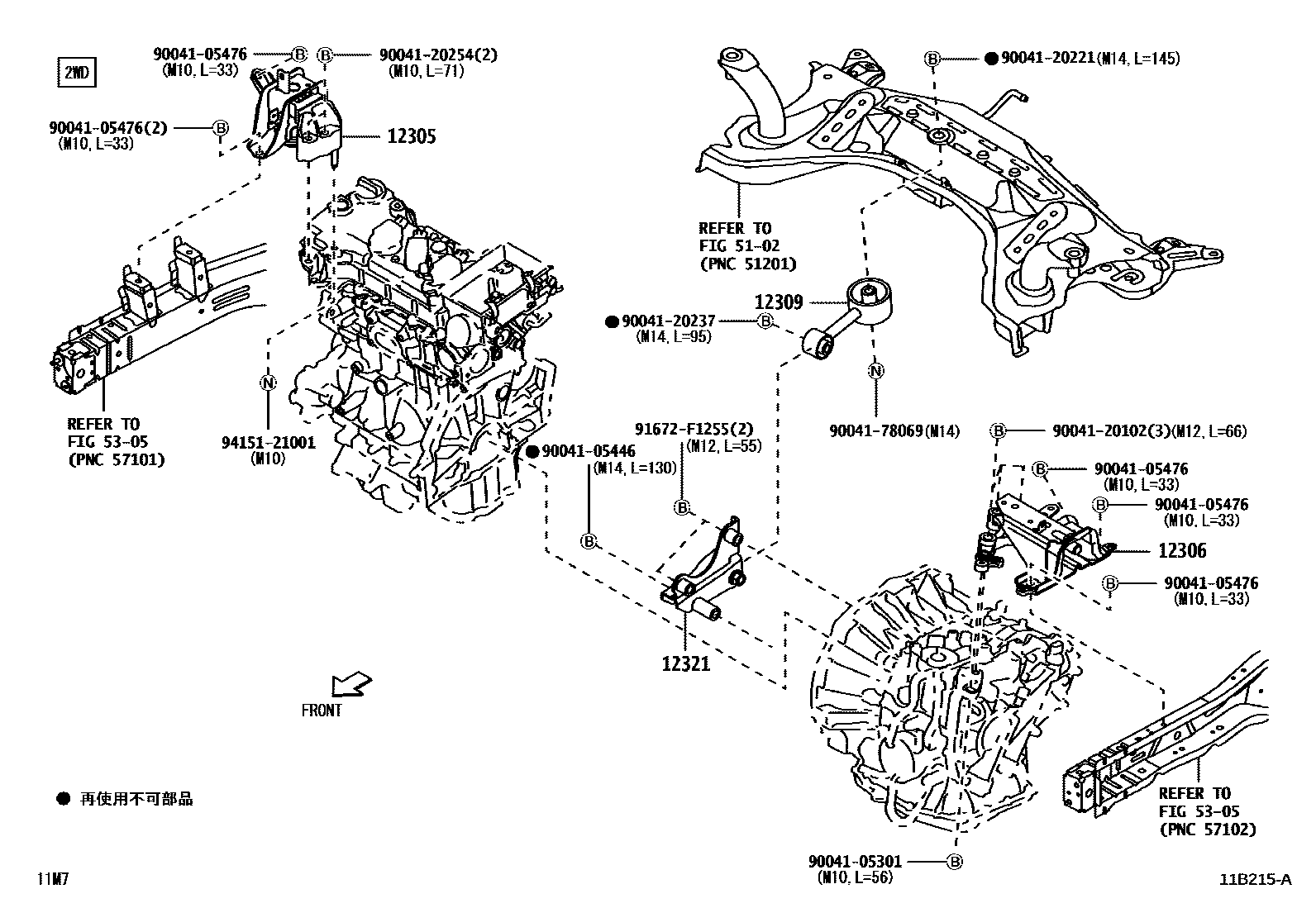

Parts diagram

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-B1140i201604-201805

main12305-B1141i201806-202309

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12306-B1140i201604-202309

12309ROD SUB-ASSY, ENGINE MOVING CONTROL

main12309-B1100i201604-202309

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-B1020i201604-202309

main12321-B1040i201604-202309

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

9004105301

main90041-05301

9004105446

main90041-05446

9004105476

main90041-05476

9004120102

main90041-20102

9004120221

main90041-20221

9004120237

main90041-20237

9004120254

main90041-20254

9004178069

main90041-78069

91672F1255

main91672-F1255

9415121001

main94151-21001

16 parts on this diagram · 2 diagrams in section

MOUNTING for Toyota PASSO

This section contains 22 genuine Toyota parts for the MOUNTING system of the Toyota PASSO. Key components include: INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, INSULATOR SUB-ASSY, ENGINE MOUNTING, LH, ROD SUB-ASSY, ENGINE MOVING CONTROL, BRACKET, ENGINE MOUNTING, REAR, NO.1, INSULATOR ASSY, ENGINE MOUNTING, REAR.
