Toyota PASSO — MOUNTING

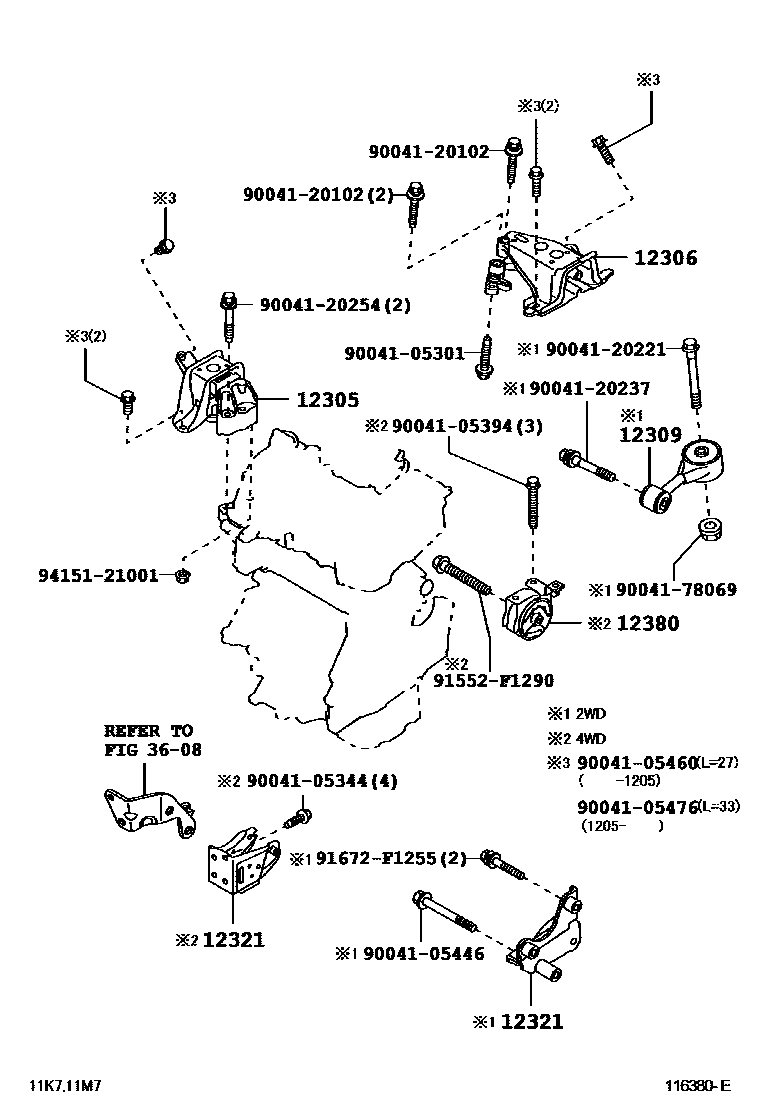

Parts diagram

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-B1100i201002-201206

main12305-B1110i201002-201206

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12306-B1080i201206-201404

main12306-B1090i201206-201404

12309ROD SUB-ASSY, ENGINE MOVING CONTROL

main12309-B1060i201002-201206

main12309-B1070i201206-201404

main12309-B1100i201404

main12309-B1110i201404

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-B1020i201002-201206

main12321-B1040i201206-201404

main12321-B1070i201002-201206

12380INSULATOR ASSY, ENGINE MOUNTING, REAR

main12380-B1070i201404

3608TRANSFER ASSEMBLY & GASKET KIT

→ Go to FIG 36-08

9004105301

main90041-05301

9004105344

main90041-05344

9004105394

main90041-05394

9004105446

main90041-05446

9004105460

main90041-05460

9004105476

main90041-05476

9004120102

main90041-20102

9004120221

main90041-20221

9004120237

main90041-20237

9004120254

main90041-20254

9004178069

main90041-78069

91552F1290

main91552-F1290

91672F1255

main91672-F1255

9415121001

main94151-21001

20 parts on this diagram · 2 diagrams in section

MOUNTING for Toyota PASSO

This section contains 25 genuine Toyota parts for the MOUNTING system of the Toyota PASSO. Key components include: INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, INSULATOR SUB-ASSY, ENGINE MOUNTING, LH, ROD SUB-ASSY, ENGINE MOVING CONTROL, BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, REAR, NO.1.
