Toyota PASSO — MIRROR

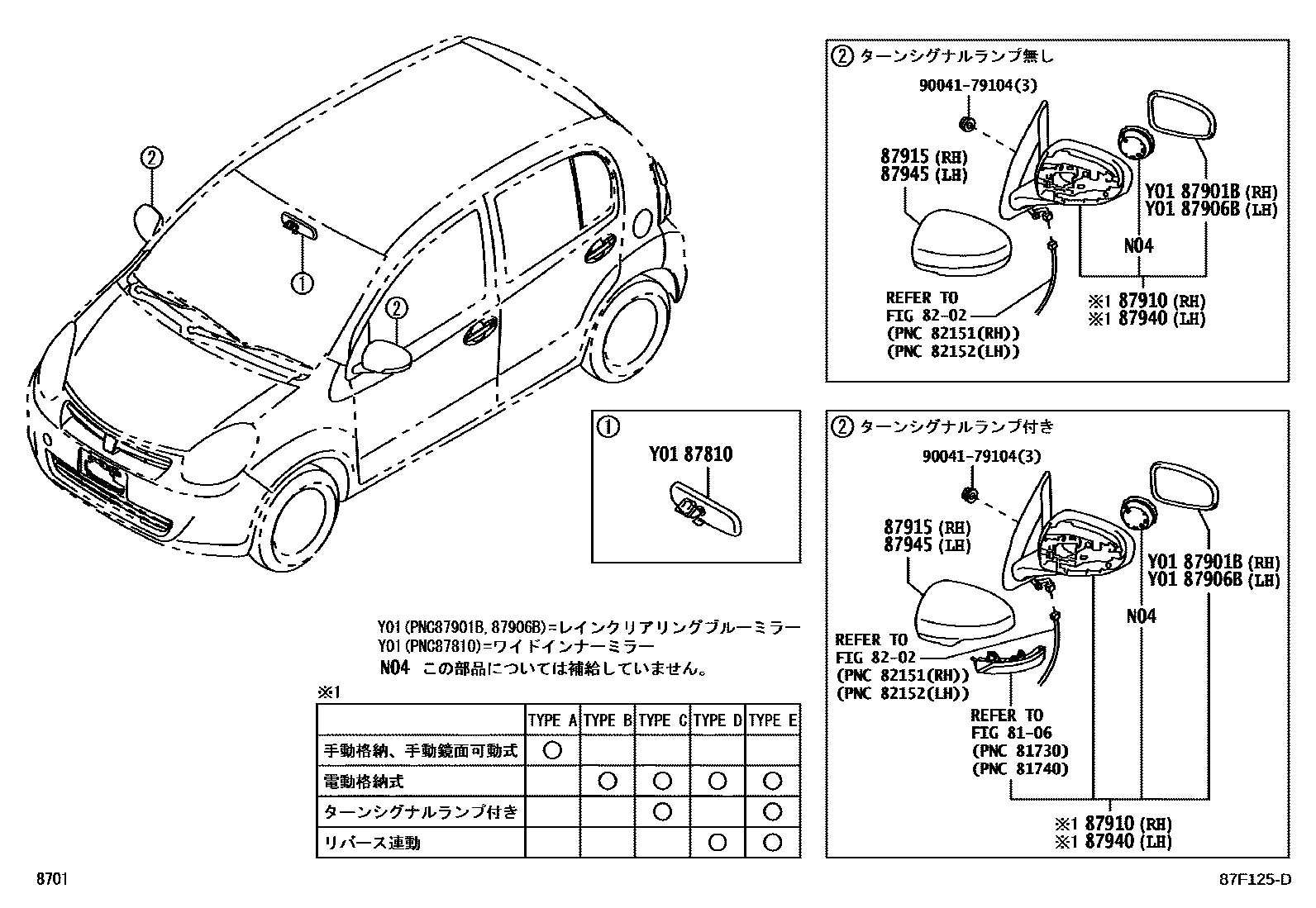

Parts diagram

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

8202WIRING & CLAMP

→ Go to FIG 82-02

87810MIRROR ASSY, INNER REAR VIEW

main87810-52041i201404

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-68051i201206-201404

main87931-B1080i201206-201404

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-68051i201404-201604

main87961-B1080i201002-201206

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-B1230i201002-201206

main87910-B1240i201404

main87910-B1280i201404

main87910-B1360supersedes 87910-B1240i201206-201404

main87910-B1380i201404

87915COVER, OUTER MIRROR, RH

main87915-B1100-A1i201010-201206

main87915-B1100-B0i201010-201206

main87915-B1100-C0i201010-201206

main87915-B1100-D0i201010-201206

main87915-B1100-D1i201206-201401

main87915-B1100-D2i201206-201401

main87915-B1100-E1i201010-201206

main87915-B1100-G0i201206-201401

main87915-B1100-J0i201206-201401

main87915-B1100-K0i201010-201206

main87915-B1101-A1i201402-201404

main87915-B1101-A2i201404

WHITE PEARL MC.CS,W24

main87915-B1101-B0i201402-201404

main87915-B1101-C0i201402-201404

main87915-B1101-D0i201402-201404

main87915-B1101-D1i201402-201404

main87915-B1101-D2i201402-201404

main87915-B1101-D3i201404-201604

main87915-B1101-E1i201402-201404

main87915-B1101-G0i201402-201404

main87915-B1101-J0i201402-201404

main87915-B1101-K0i201402-201404

main87915-B1110-A0i201002-201206

main87915-B1110-A1i201002-201206

main87915-B1110-B0i201002-201206

main87915-B1110-C0i201206-201401

main87915-B1110-D0i201002-201206

main87915-B1110-D1i201206-201401

main87915-B1110-D2i201206-201401

main87915-B1110-E0i201206-201401

main87915-B1110-G1i201206-201401

main87915-B1110-J0i201002-201206

main87915-B1110-K0i201002-201206

main87915-B1111-A0i201404-201604

main87915-B1111-A1i201402-201404

main87915-B1111-A2i201404-201604

main87915-B1111-B0i201404-201604

main87915-B1111-C0i201404-201604

main87915-B1111-D0i201404-201602

main87915-B1111-D1i201402-201404

main87915-B1111-D2i201402-201404

main87915-B1111-E0i201404-201604

main87915-B1111-G1i201402-201404

main87915-B1111-J0i201402-201404

main87915-B1111-J1i201404-201604

main87915-B1111-J2i201503-201604

main87915-B1111-K0i201404-201604

main87915-B1100-E0i201002-201206

main87915-B1101-E0i201402-201404

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-B1230i201206-201404

main87940-B1240i201404

main87940-B1250supersedes 87940-B1240i201206-201404

main87940-B1360i201404

main87940-B1400i201206-201404

87945COVER, OUTER MIRROR, LH

main87945-B1100-A1i201206-201401

main87945-B1100-B0i201206-201401

main87945-B1100-C0i201010-201206

main87945-B1100-D0i201206-201401

main87945-B1100-D1i201010-201206

main87945-B1100-D2i201010-201206

main87945-B1100-E1i201206-201401

main87945-B1100-G0i201010-201206

main87945-B1100-J0i201206-201401

main87945-B1100-K0i201206-201401

main87945-B1101-A1i201402-201404

main87945-B1101-A2i201404

WHITE PEARL MC.CS,W24

main87945-B1101-B0i201404-201604

main87945-B1101-C0i201404-201604

main87945-B1101-D0i201402-201404

main87945-B1101-D1i201402-201404

main87945-B1101-D2i201402-201404

main87945-B1101-D3i201404-201604

main87945-B1101-E1i201404-201604

main87945-B1101-G0i201402-201404

main87945-B1101-J0i201402-201404

main87945-B1101-K0i201402-201404

main87945-B1110-A0i201002-201206

main87945-B1110-A1i201206-201401

main87945-B1110-B0i201206-201401

main87945-B1110-C0i201002-201206

main87945-B1110-D0i201206-201401

main87945-B1110-D1i201009-201206

main87945-B1110-D2i201002-201206

main87945-B1110-E0i201206-201401

main87945-B1110-G1i201206-201401

main87945-B1110-J0i201206-201401

main87945-B1110-K0i201206-201401

main87945-B1111-A0i201402-201404

main87945-B1111-A1i201402-201404

main87945-B1111-A2i201404-201604

main87945-B1111-B0i201402-201404

main87945-B1111-C0i201402-201404

main87945-B1111-D0i201402-201404

main87945-B1111-D1i201402-201404

main87945-B1111-D2i201402-201404

main87945-B1111-E0i201402-201404

main87945-B1111-G1i201402-201404

main87945-B1111-J0i201402-201404

main87945-B1111-J1i201404-201604

main87945-B1111-J2i201503-201604

main87945-B1111-K0i201404-201604

main87945-B1100-E0i201002-201206

main87945-B1101-E0i201402-201404

9004179104

main90041-79104

10 parts on this diagram · 1 diagram in section

MIRROR for Toyota PASSO

This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota PASSO. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, WIRING & CLAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
