Toyota PASSO — MIRROR

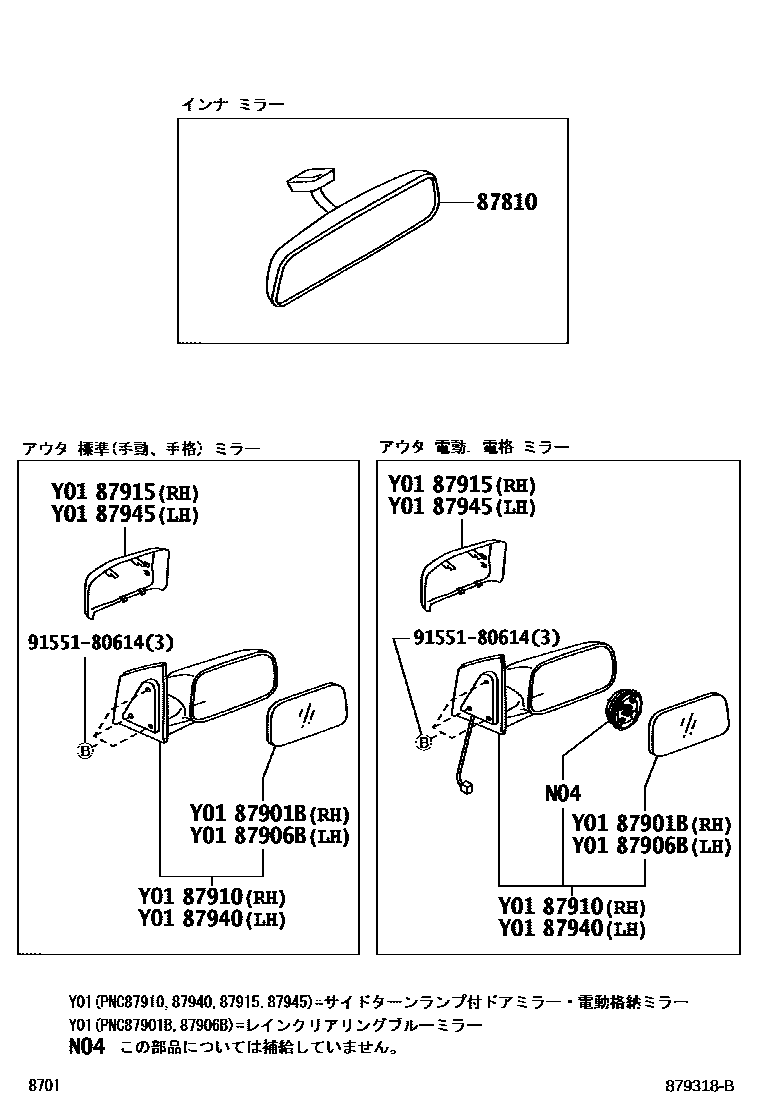

Parts diagram

87810MIRROR ASSY, INNER REAR VIEW

main87810-52040i200405-200612

main87810-52041i200701-201002

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-12B20i200612-201002

main87931-47080i200612-201002

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-12B30i200612-201002

main87961-47080i200612-201002

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-B1020supersedes 87910-B1010i200405-200612

main87910-B1170i200612-201002

main87910-B1050i200612-201002

87915COVER, OUTER MIRROR, RH

main87915-B1010-B2i200405-200612

DK.BLUE M.M.,B42

main87915-B1010-B7i200405-200612

LT.BLUE ME.OP.,B57

main87915-B1010-D1i200612-201001

MAROON MC.,R56

main87915-B1010-E1i200809-201002

CHAMPAGNE ME.,T23

main87915-B1010-F1i200612-201001

YELLOW ME.,Y08

main87915-B1010-G0i200405-200612

LIME GREEN ME.,G40

main87915-B1010-G2i200612-201001

YELLOW GREEN M.M.,G43

main87915-B1010-K0i200904-201002

GRAYISH PURPLE ME.OP.,P12

main87915-B1010-R0i200405-200612

RED,R40

main87915-B1010-R3i200405-200612

MD CORAL ME.,R43

main87915-B1010-S8i200612-201002

SILVER ME.,S28

main87915-B1010-T7i200612-200809

CHAMPAGNE ME.OP.,T17

main87915-B1010-W6i200612-201002

WHITE PEARL.MC.,W16

main87915-B1010-W9i200405-200612

WHITE,W09

main87915-B1010-X7i200405-200612

BLACK M.M.,X07

main87915-B1050-A1i200612-201002

main87915-B1050-B0i200612-201002

main87915-B1050-C0i200612-201002

main87915-B1050-D0i200612-201002

main87915-B1050-G0i200612-201001

main87915-B1020i200612-201002

main87915-B1050-A0i200612-201002

main87915-B1050-D1i200612-201001

main87915-B1050-E0i200802-200809

main87915-B1050-E1i200809-201002

main87915-B1050-F0i200802-201001

main87915-B1050-J0i200802-201002

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-B1020supersedes 87940-B1010i200405-200612

main87940-B1170i200612-201002

main87940-B1050i200405-200612

87945COVER, OUTER MIRROR, LH

main87945-B1010-B2i200405-200612

DK.BLUE M.M.,B42

main87945-B1010-B7i200405-200612

LT.BLUE ME.OP.,B57

main87945-B1010-D1i200612-201001

MAROON MC.,R56

main87945-B1010-E1i200809-201002

CHAMPAGNE ME.,T23

main87945-B1010-F1i200612-201001

YELLOW ME.,Y08

main87945-B1010-G0i200405-200612

LIME GREEN ME.,G40

main87945-B1010-G2i200612-201001

YELLOW GREEN M.M.,G43

main87945-B1010-K0i200904-201002

GRAYISH PURPLE ME.OP.,P12

main87945-B1010-R0i200612-201002

RED,R40

main87945-B1010-R3i200405-200612

MD CORAL ME.,R43

main87945-B1010-S8i200612-201002

SILVER ME.,S28

main87945-B1010-T7i200405-200612

CHAMPAGNE ME.OP.,T17

main87945-B1010-W6i200405-200612

WHITE PEARL.MC.,W16

main87945-B1010-W9i200612-201002

WHITE,W09

main87945-B1010-X7i200612-201002

BLACK M.M.,X07

main87945-B1050-A1i200612-201002

main87945-B1050-B0i200612-201002

main87945-B1050-C0i200612-201002

main87945-B1050-D0i200612-201002

main87945-B1050-G0i200612-201001

main87945-B1020i200405-200612

main87945-B1050-A0i200802-201002

main87945-B1050-D1i200612-201001

main87945-B1050-E0i200802-200809

main87945-B1050-E1i200809-201002

main87945-B1050-F0i200802-201001

main87945-B1050-J0i200612-201002

9155180614

main91551-80614

8 parts on this diagram · 2 diagrams in section

MIRROR for Toyota PASSO

This section contains 9 genuine Toyota parts for the MIRROR system of the Toyota PASSO. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH.
