Toyota PASSO — METER

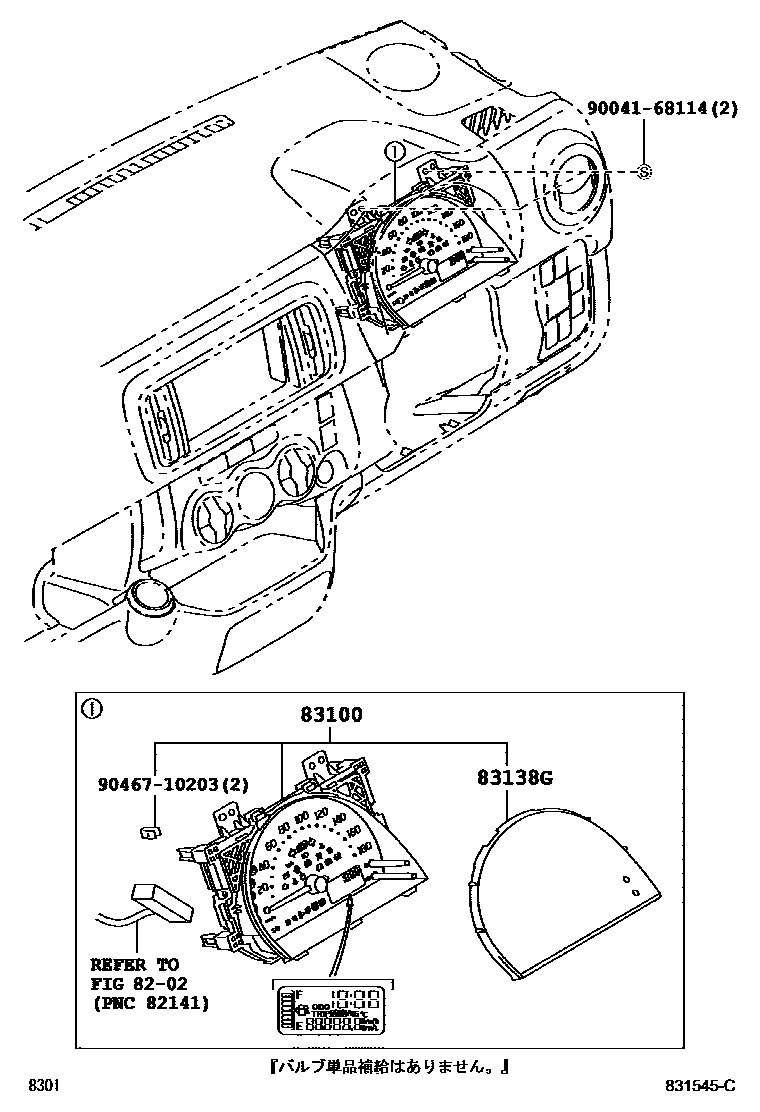

Parts diagram

8202

83100METER ASSY, COMBINATION

main83800-B1380i201002-201008

main83800-B1381i201009-201206

main83800-B1590supersedes 83800-B1A60i201206-201404

main83800-B1600i201206-201404

main83800-B1610i201206-201404

main83800-B1870supersedes 83800-B1880i201404

main83800-B1A00i201404

main83800-B1B40i201404

main83800-B1B50i201404

main83800-B1C60i201002-201206

main83800-B1C70i201002-201206

main83800-B1700supersedes 83800-B1880i201206-201404

main83800-B1710supersedes 83800-B1880i201206-201404

83138GGLASS, COMBINATION METER

main83852-B1A60i201404

9004168114

main90041-68114

9046710203

main90467-10203

5 parts on this diagram · 1 diagram in section
