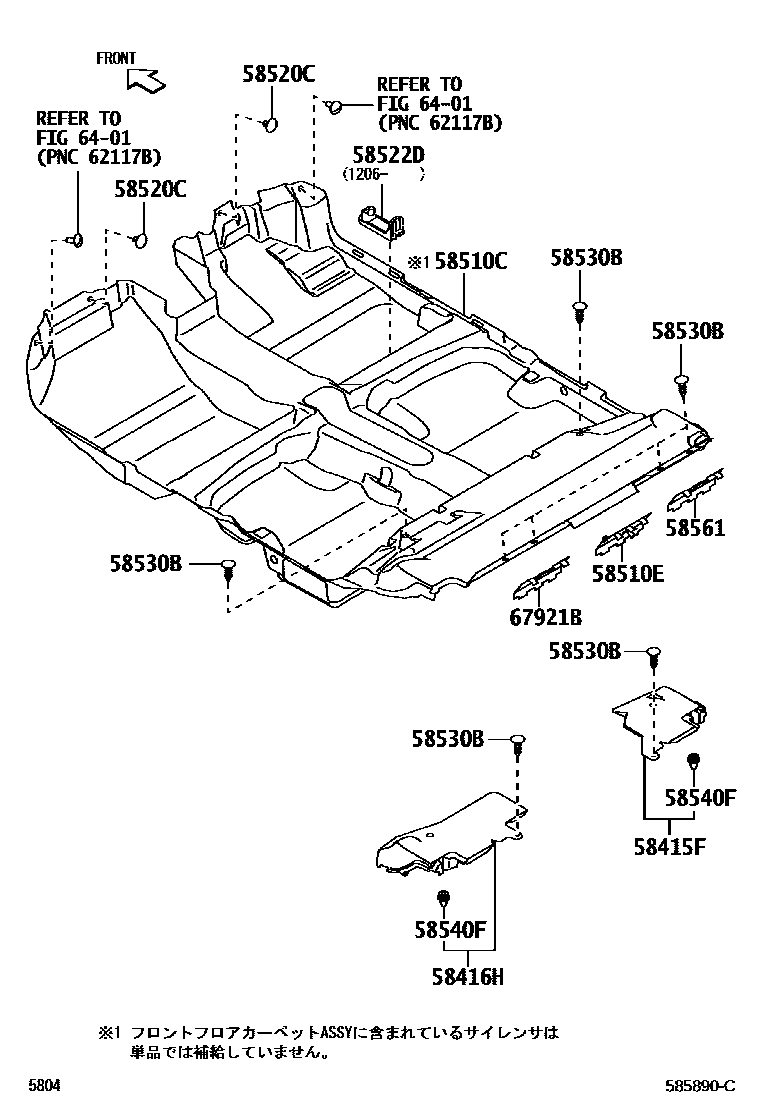

Toyota PASSO — MAT & CARPET
58415FBOARD, REAR FLOOR, NO.1
58416HBOARD, REAR FLOOR, NO.2
58510CCARPET ASSY, FRONT FLOOR, FRONT
58510ERETAINER, FLOOR CARPET
58520CCLIP(FOR FRONT FLOOR CARPET)
58522DHOOK, FLOOR CARPET, NO.2
58530BCLIP(FOR FRONT FLOOR CARPET)
DK.GRAY
BLACK
58540FCLIP(FOR REAR FLOOR CARPET)
58561RETAINER, FLOOR MAT, NO.1
6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
67921BRETAINER, REAR FLOOR MAT SUPPORT
11 parts on this diagram · 1 diagram in section
MAT & CARPET for Toyota PASSO
This section contains 11 genuine Toyota parts for the MAT & CARPET system of the Toyota PASSO. Key components include: BOARD, REAR FLOOR, NO.1, BOARD, REAR FLOOR, NO.2, CARPET ASSY, FRONT FLOOR, FRONT, RETAINER, FLOOR CARPET, CLIP(FOR FRONT FLOOR CARPET).
