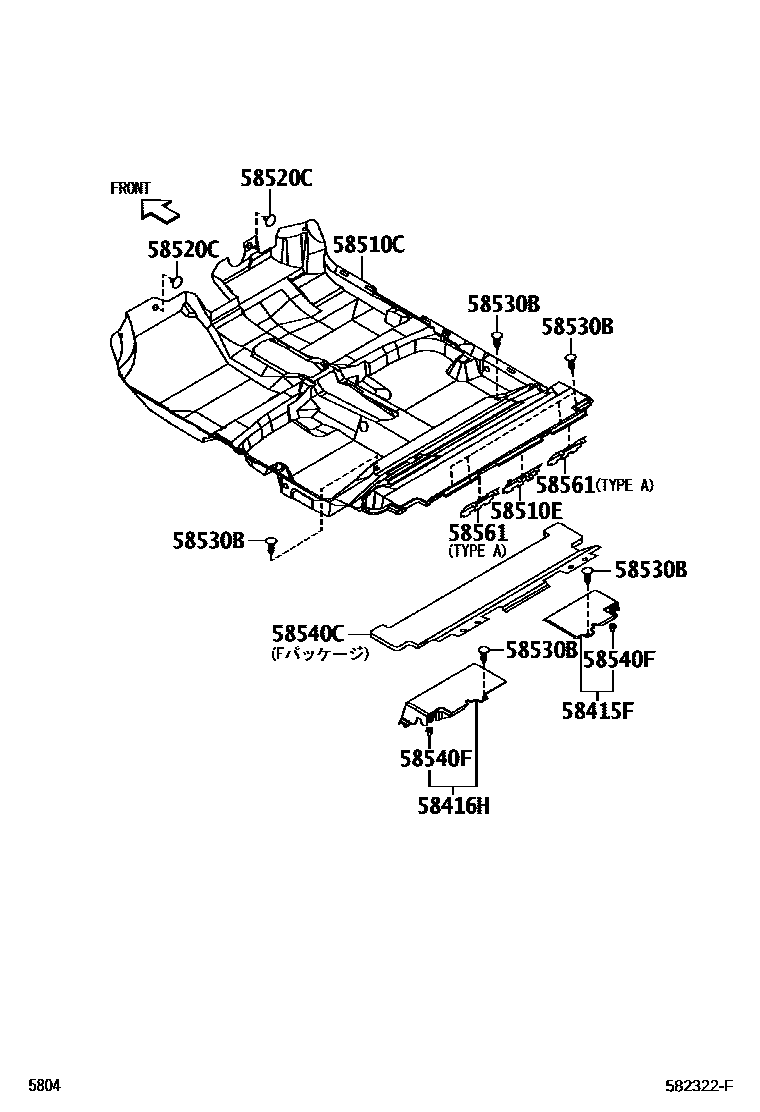

Toyota PASSO — MAT & CARPET
58415FBOARD, REAR FLOOR, NO.1
58416HBOARD, REAR FLOOR, NO.2
58510CCARPET ASSY, FRONT FLOOR, FRONT
58510ERETAINER, FLOOR CARPET
58520CCLIP(FOR FRONT FLOOR CARPET)
BLACK
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK
58540CMAT ASSY, FLOOR, REAR
58540FCLIP(FOR REAR FLOOR CARPET)
58561RETAINER, FLOOR MAT, NO.1
9 parts on this diagram · 2 diagrams in section
MAT & CARPET for Toyota PASSO
This section contains 13 genuine Toyota parts for the MAT & CARPET system of the Toyota PASSO. Key components include: BOARD, REAR FLOOR, NO.1, BOARD, REAR FLOOR, NO.2, CARPET ASSY, FRONT FLOOR, FRONT, RETAINER, FLOOR CARPET, MAT, FLOOR, FRONT RH.
