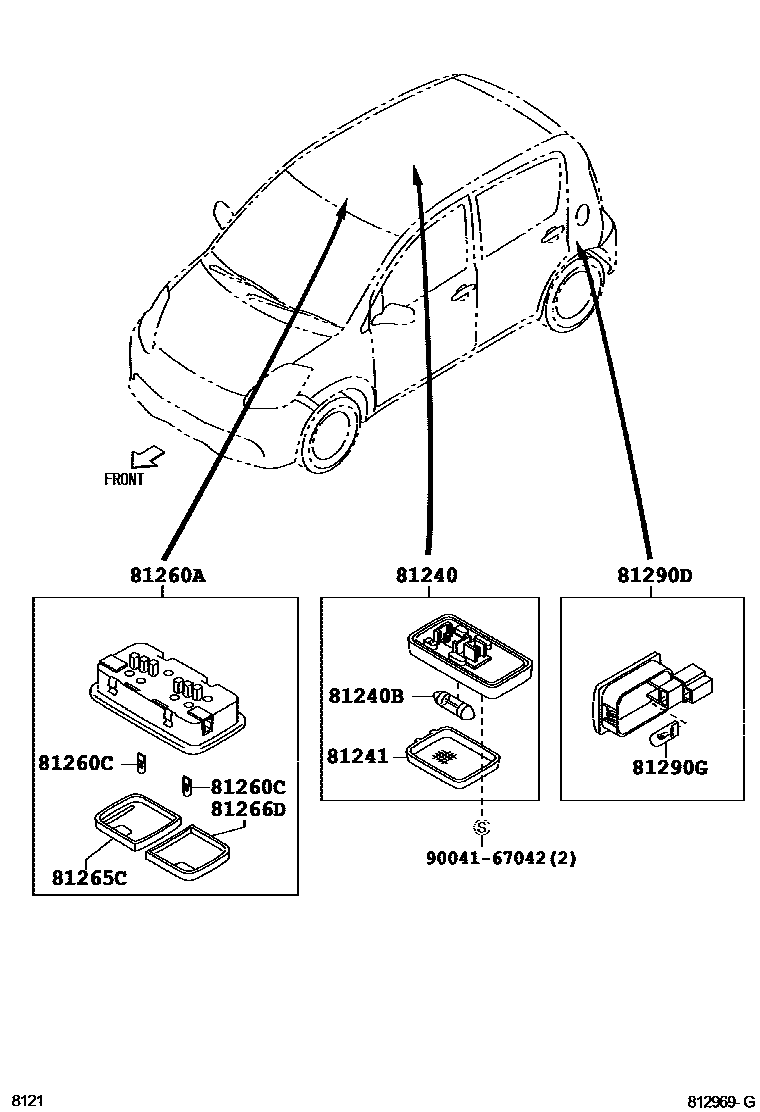

Toyota PASSO — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-B2050-B0i200405-200612

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90049-51153i200405-200612

81241LENS, ROOM LAMP, NO.1

main81241-97201i200405-200612

81260ALAMP ASSY, MAP

main81260-52020-B0i200405-200612

LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-11062×2i200405-200612

81265CLENS, MAP LAMP, NO.1

main81265-52020i200405-200612

81266DLENS, MAP LAMP, NO.2

main81266-52020i200405-200612

81290DLAMP ASSY, REAR ROOM, LH

main81240-B1010i200405-200612

81290GBULB, REAR ROOM LAMP, LH

main90981-11013i200405-200612

9004167042

main90041-67042

10 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota PASSO

This section contains 10 genuine Toyota parts for the INTERIOR LAMP system of the Toyota PASSO. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, MAP, BULB(FOR MAP LAMP).
