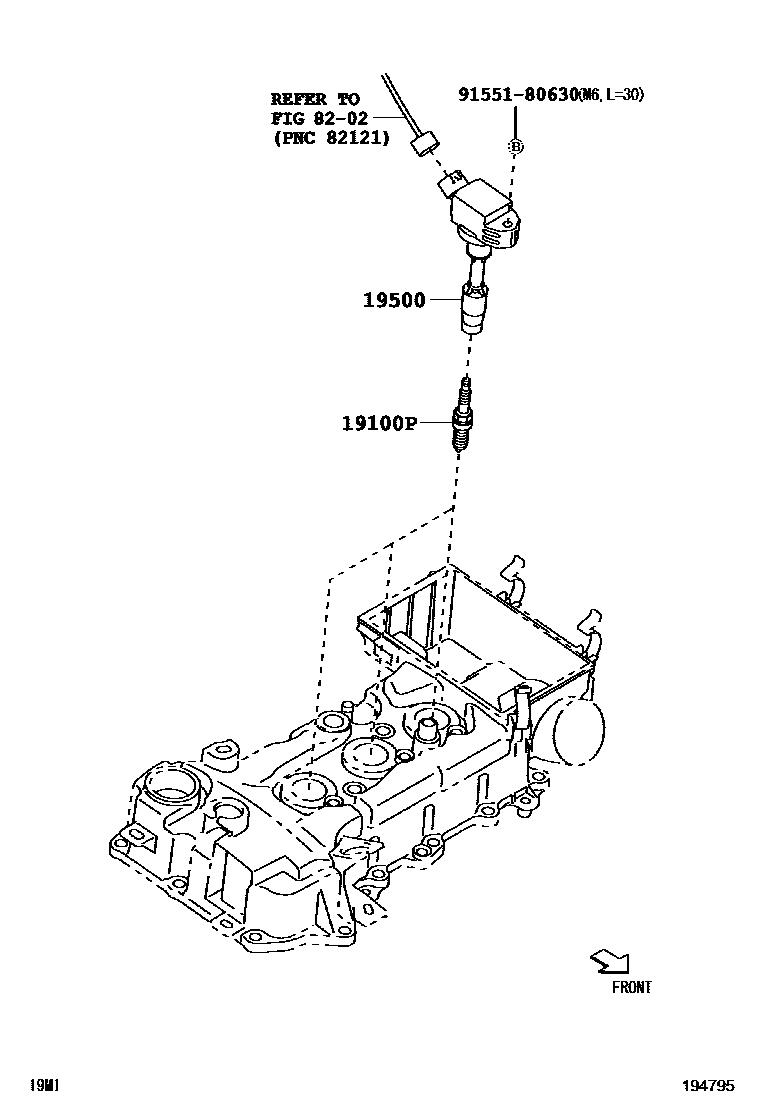

Toyota PASSO — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90048-51216×3i201604-202309

19500COIL ASSY, IGNITION

main90919-02281×3i201604-202309

8202WIRING & CLAMP

→ Go to FIG 82-02

9155180630

main91551-80630

4 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota PASSO

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota PASSO. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, WIRING & CLAMP.
