Toyota PASSO — IGNITION COIL & SPARK PLUG / GLOW PLUG

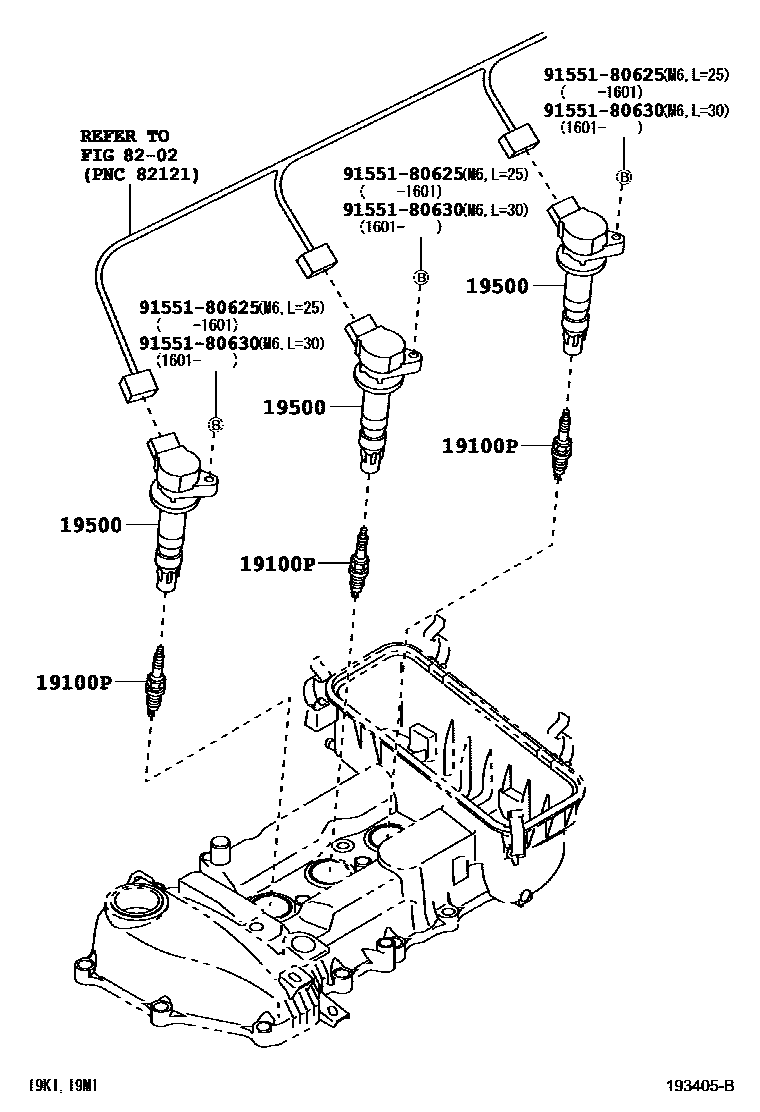

Parts diagram

19100PPLUG, SPARK

main90048-51185×3i201206-201404

main90919-01191×3i201206-201404

main90919-01253×4i201002-201206

main90919-01275×4i201404

19500COIL ASSY, IGNITION

main19500-B1020×4i201002-201206

main19500-B2050×3i201002-201206

main90919-02270×3i201404

8202WIRING & CLAMP

→ Go to FIG 82-02

9155180625

main91551-80625

9155180630

main91551-80630

5 parts on this diagram · 2 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota PASSO

This section contains 5 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota PASSO. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, WIRING & CLAMP.
