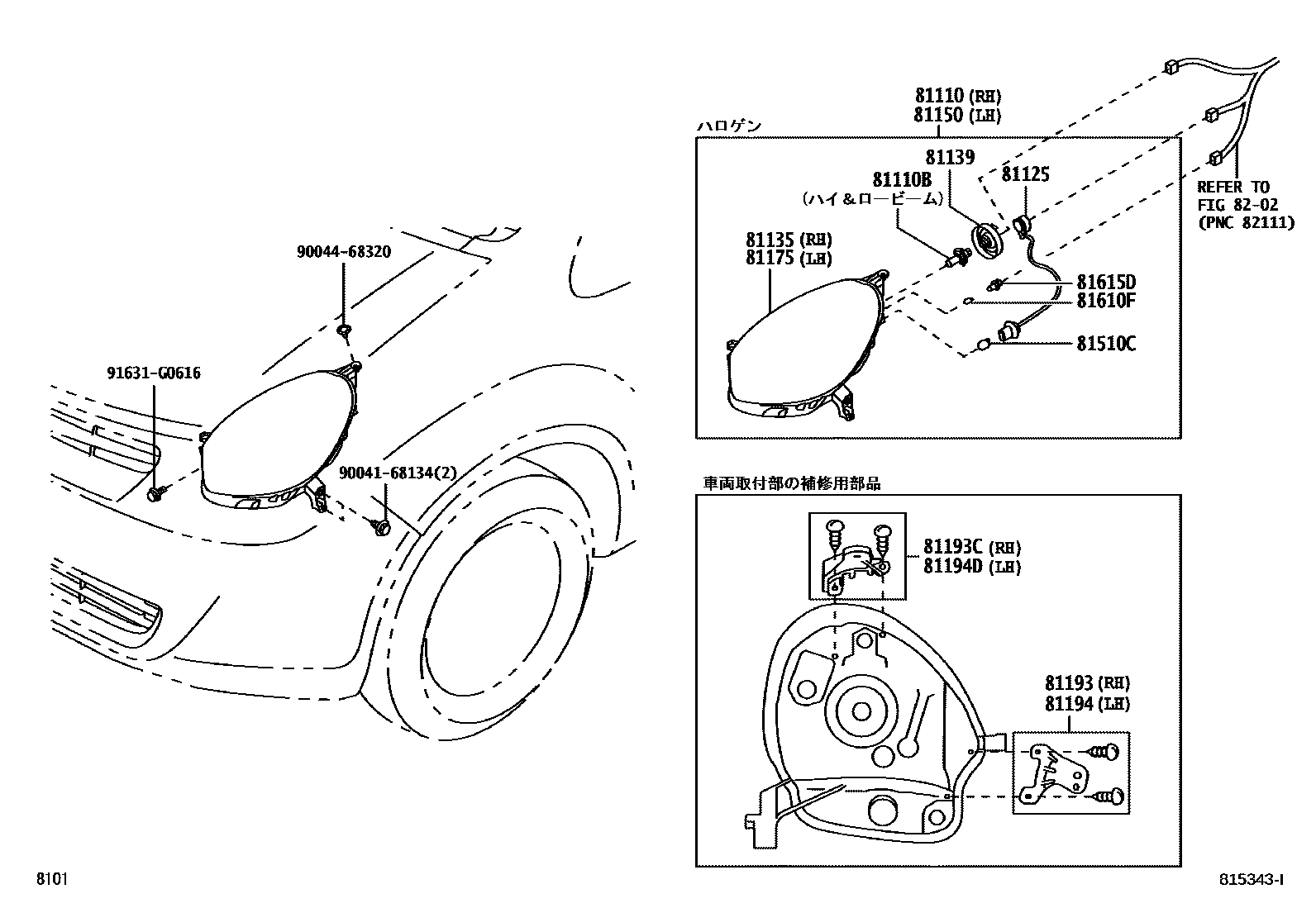

Toyota PASSO — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-B1310supersedes 81110-B1390i201002-201206

main81110-B1370supersedes 81110-B1360i201404

main81110-B1380supersedes 81110-B1390i201404

81110BBULB(FOR HEADLAMP, NO.1)

main90049-51088×2i201404-201604

main90049-51155×2i201002-201206

main90049-51156×2i201404-201604

81125CORD, HEADLAMP

main81125-B1040×2supersedes 81125-B1060i201002-201206

main81125-B1080×2supersedes 81125-B1070i201404

main81125-B1090×2supersedes 81125-B1070i201404

81135UNIT ASSY, HEADLAMP, RH

main81130-B1170supersedes 81130-B1190i201002-201206

main81145-B1020supersedes 81130-B1190i201404

main81145-B1030supersedes 81130-B1200i201404

81139COVER, HEADLAMP SOCKET

main81139-B2010×2i201206-201404

81150HEADLAMP ASSY, LH

main81150-B1310supersedes 81150-B1390i201002-201206

main81150-B1370supersedes 81150-B1360i201404

main81150-B1380supersedes 81150-B1390i201404

81175UNIT ASSY, HEADLAMP, LH

main81170-B1170supersedes 81170-B1190i201002-201206

main81185-B1020supersedes 81170-B1190i201404

main81185-B1030supersedes 81170-B1200i201404

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-B1190i201002-201206

main81193-B1220i201206-201404

main81193-B1280i201404-201604

81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH

main81193-B1210i201206-201404

main81193-B1240i201002-201206

main81193-B1290i201404

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-B1190i201206-201404

main81194-B1220i201206-201404

main81194-B1280i201404

81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH

main81194-B1210i201002-201206

main81194-B1240i201002-201206

main81194-B1290i201404

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90049-51179×2i201002-201206

81610FBULB(FOR CLEARANCE LAMP)

main90981-11013×2i201002-201206

81615DSOCKET, CLEARANCE LAMP

main9004C-82001×2i201002-201206

8202WIRING & CLAMP

→ Go to FIG 82-02

9004168134

main90041-68134

9004468320

main90044-68320

91631G0616

main91631-G0616

18 parts on this diagram · 3 diagrams in section

HEADLAMP for Toyota PASSO

This section contains 29 genuine Toyota parts for the HEADLAMP system of the Toyota PASSO. Key components include: COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2).
