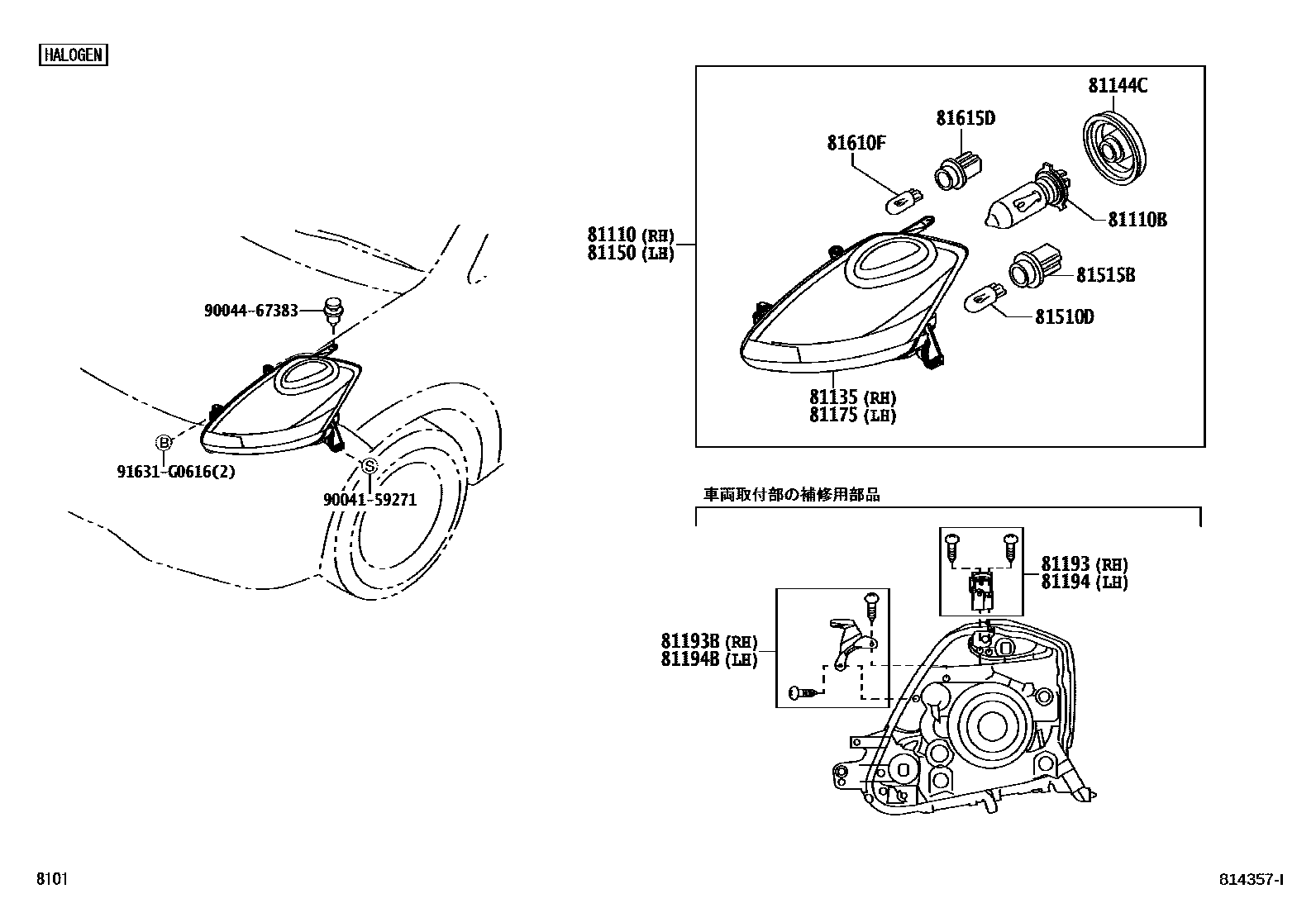

Toyota PASSO — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-B1010i200405-200511

main81110-B1060i200405-200511

main81110-B1130supersedes 81110-B1070i200412-200511

main81110-B1240supersedes 81110-B1230i200511-200612

main81110-B1260supersedes 81110-B1250i200511-200612

81110BBULB(FOR HEADLAMP, NO.1)

main90049-51088×2i200405-200511

main90981-22001×2i200511-200612

81135UNIT ASSY, HEADLAMP, RH

main81130-97418i200405-200511

main81130-97423i200505-200511

main81130-97430supersedes 81130-97425i200412-200511

main81130-B1040supersedes 81130-B1030i200612-201002

main81130-B1060supersedes 81130-B1050i200511-200612

81144CCOVER, HEADLAMP SOCKET

main81139-B2010×2i200612-201002

main90075-65002×2i200511-200612

81150HEADLAMP ASSY, LH

main81150-B1010i200405-200511

main81150-B1060i200505-200511

main81150-B1130supersedes 81150-B1070i200412-200511

main81150-B1240supersedes 81150-B1230i200612-201002

main81150-B1260supersedes 81150-B1250i200612-201002

81175UNIT ASSY, HEADLAMP, LH

main81170-97418i200405-200511

main81170-97423i200405-200505

main81170-97430supersedes 81170-97425i200412-200511

main81170-B1040supersedes 81170-B1030i200511-200612

main81170-B1060supersedes 81170-B1050i200612-201002

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-B1020i200405-200612

main81193-B1030i200505-200612

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-B1010i200405-200612

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-B1020i200612-201002

main81194-B1030i200612-201002

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-B1010i200405-200612

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90049-51148×2i200405-200612

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60006×2i200405-200511

81610FBULB(FOR CLEARANCE LAMP)

main90981-11013×2i200405-200612

81615DSOCKET, CLEARANCE LAMP

main9004C-82001×2i200405-200511

main90075-60046×2i200511-200603

9004159271

main90041-59271

9004467383

main90044-67383

91631G0616

main91631-G0616

17 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota PASSO

This section contains 27 genuine Toyota parts for the HEADLAMP system of the Toyota PASSO. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), BULB, DISCHARGE HEADLAMP, CORD, HEADLAMP, RH.
