Toyota PASSO — FUEL INJECTION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-B1030i201604-202309

23209INJECTOR SET, FUEL

main23209-B1040×6i201604-202309

23250BRING, O(FOR FUEL INJECTOR)

main90043-01349×6i201604-202309

23250GRING, O, NO.2(FOR FUEL INJECTOR)

main90043-01372×6i201604-202309

23295HOLDER, INJECTOR, NO.1

main23295-B1010×6i201604-202309

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-B1030i201604-202309

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-B1010i201604-202309

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-B5010i201604-202309

23845CINSULATOR, FUEL PIPE

main23845-40010×2i201604-202309

23901TUBE SUB-ASSY, FUEL

main23901-B1040i201604-202309

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9155180620

main91551-80620

9167180835

main91671-80835

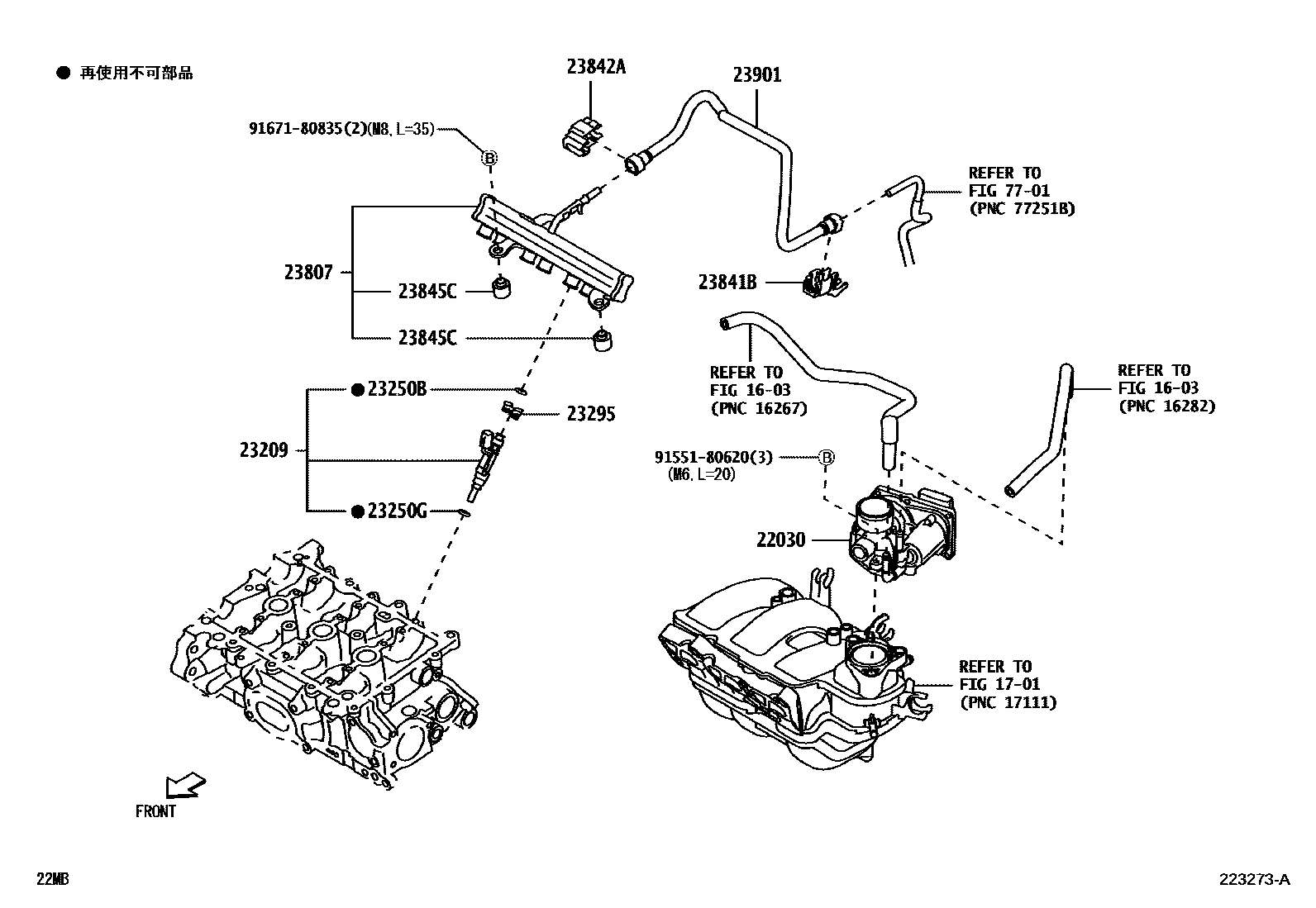

15 parts on this diagram · 1 diagram in section

FUEL INJECTION SYSTEM for Toyota PASSO

This section contains 15 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota PASSO. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, INJECTOR SET, FUEL, RING, O(FOR FUEL INJECTOR).
