Toyota PASSO — FUEL INJECTION SYSTEM

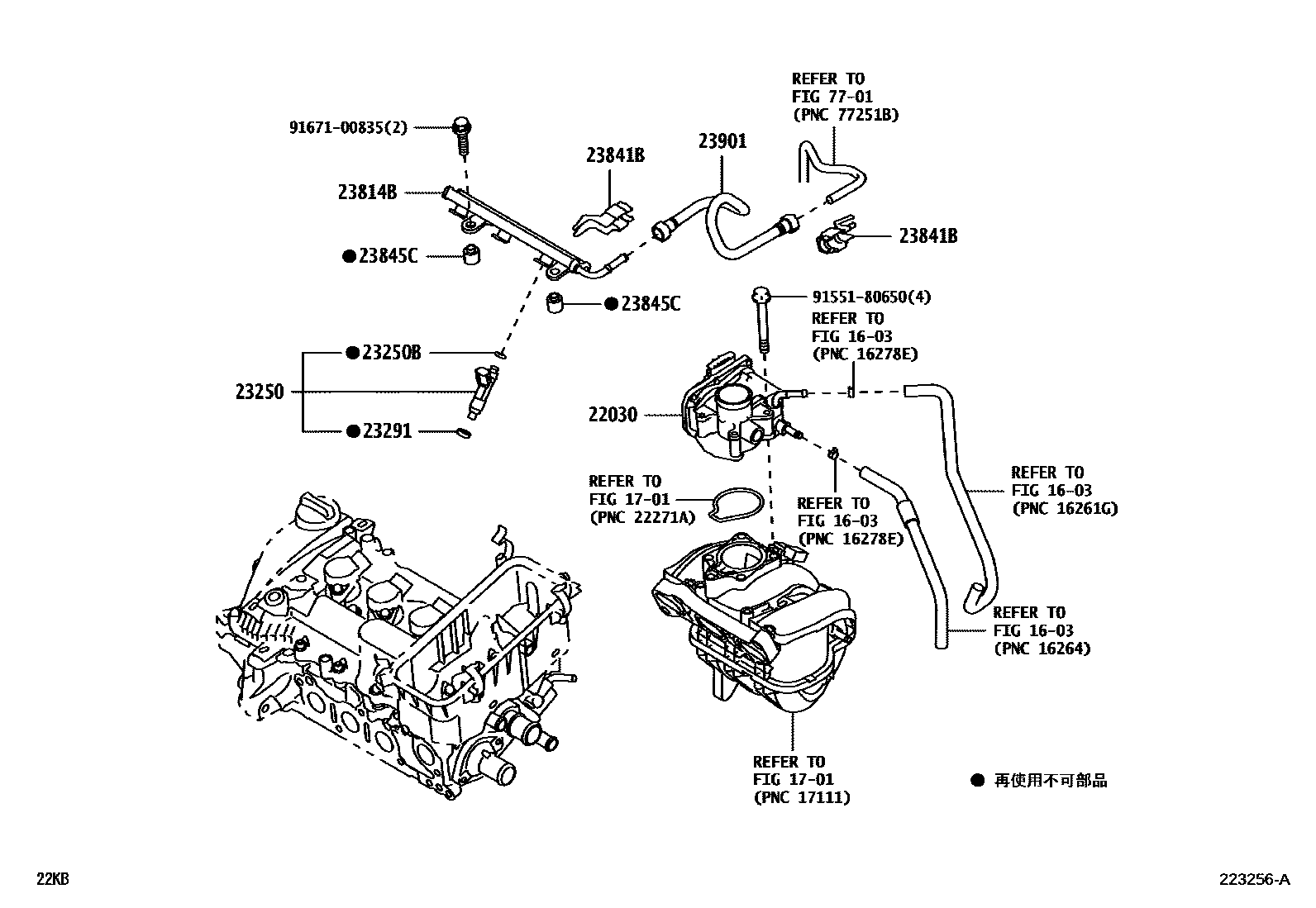

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-40010i201002-201206

main22030-47010i201002-201206

main22030-B1020i201404

23250INJECTOR ASSY, FUEL

main23209-49085×3i201002-201206

main23209-49205×4i201206-201404

main23209-49255×3i201404

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×3i201206-201404

main90301-07042×4i201002-201206

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i201404

main23291-87701×3i201206-201404

23814BPIPE, FUEL DELIVERY

main23807-40040i201404

main23814-47020i201002-201206

main23814-47050i201407

main23814-B1040i201206-201404

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-B1010×2i201002-201206

23845CINSULATOR, FUEL PIPE

main23845-40010×2i201206-201404

23901TUBE SUB-ASSY, FUEL

main23901-B1010i201206-201404

main23901-B1020i201002-201206

main23901-B1030i201404

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9155180650

main91551-80650

9167100835

main91671-00835

13 parts on this diagram · 3 diagrams in section

FUEL INJECTION SYSTEM for Toyota PASSO

This section contains 21 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota PASSO. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, INJECTOR ASSY, FUEL, RING, O(FOR FUEL INJECTOR).
