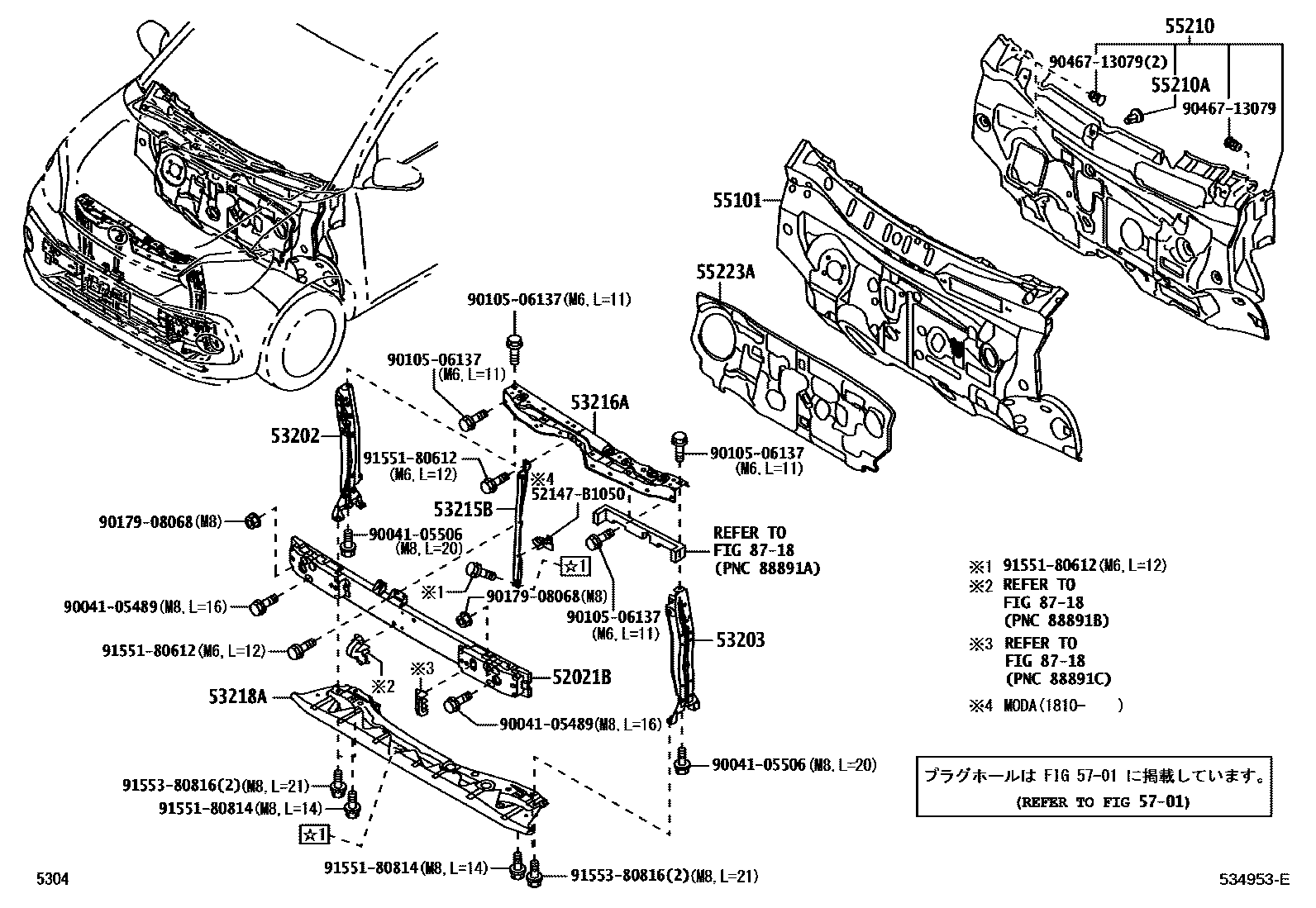

Toyota PASSO — FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

52021BREINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-B1100iM700,710201604-201810

main52021-B1110iM700,710201810-202309

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-B1050iM700,710201604-202309

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-B1040iM700,710201604-202309

53215BSUPPORT, HOOD LOCK

main53215-B1070iM700,710201604-202309

53216ASUPPORT, RADIATOR, UPPER

main53216-B1070iM700,710201604-202309

53218ASUPPORT, RADIATOR, LOWER

main53028-B1070iM700,710201604-202309

55101PANEL SUB-ASSY, DASH

main55101-B1170iM700,710201604-202309

55210INSULATOR ASSY, DASH PANEL

main55210-B1110iM700,710201604-202309

55210ACLIP

main90467-11122×5iM700,710201604-202309

55223AINSULATOR, DASH PANEL, OUTER

main55223-B1080iM700,710201604-202309

5701

8718

52147B1050SUPPORT, FRONT BUMPER, RH

main52147-B1050

9004105489

main90041-05489

9004105506

main90041-05506

9010506137

main90105-06137

9017908068

main90179-08068

9046713079

main90467-13079

9155180612

main91551-80612

9155180814

main91551-80814

9155380816

main91553-80816

21 parts on this diagram · 2 diagrams in section
